Welcome to visit

Fully Automatic ABA Three Layers Co-Extrusion Colored Film Blowing Machine with Simple Use Method

US$22,000.00-45,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SJ-ABA-600/800
Maximum Folding Width of Film
1000
Screw Diameter
45/55
Automation
Automatic
Computerized
Computerized
Machine Weight
4T
Certification
CE, ISO9001:2008
Screw
Double Layer
Die Head.
ABA Rotary Head
Speed
High Speed
Transport Package
Standard Wooden Box, etc.
Specification
CE, ISO
Trademark
SANBI
Origin
China
HS Code
8477301000
Production Capacity
50sets/Month

Product Description

Fully automatic ABA Three Layers Co-Extrusion Colored Film Blowing Machine with Simple Use Method
Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.
SPECIFICATIONS:
Model ABA 600 ABA 800
Screw Diameter 50*2 55*2
Screw Ratio L/D 30:1 30:1
Screw Speed 15-120r/min 15-120r/min
Main Motor Power 15Kw*2 15Kw*2
Extrusion Output 60kg/h 80kg/h
Range of Die 100 100
Single-sided Thickness of Film 0.01-0.10mm 0.01-0.10mm
Max. Folding Width of Film 800mm 800mm
Electric Total Capacity 50Kw 50Kw
Overall Dimension 5000*3200*4200mm 5000*3500*5000mm
Weight of Machine 3T 4T

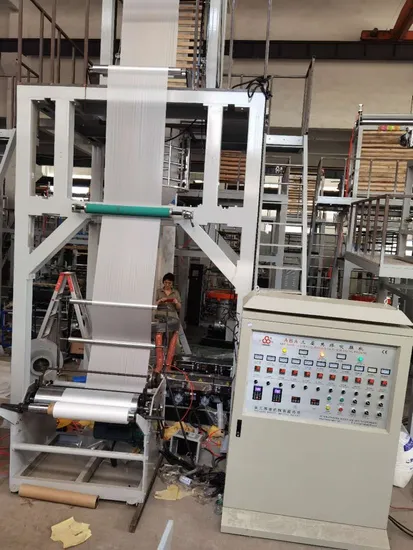

Machine Pictures:
