1L 2L 5L HDPE Plastic Bottles Jars Jerry Cans Blow Molding Machine

Product Description

Company Profile
Product Description

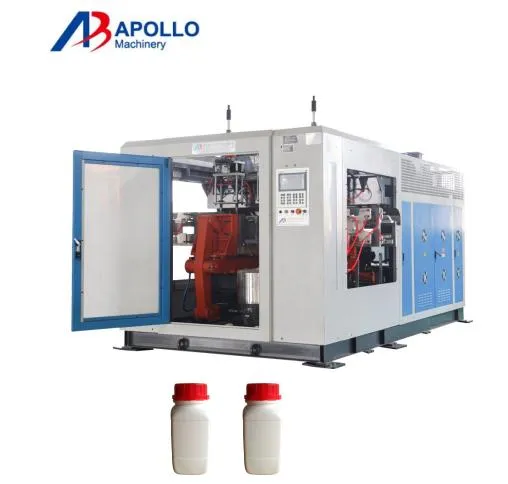

Full-automatic extrusion blow moulding machine:
Automatic blow molding machine for making HDPE or PP detergents bottles,shampoo,liquid soap
cosmetical,household package,jars,jerry cans up to 2L.
The features of this machine:
(1)It is suitable for producing PP, PE, PVC and plastic containers and bottles in all shapes, the max. Product volume is up to 2L.
(2)It is mainly designed for small plastic products and plastic tube, especially for plastic suction tube.
(3)Feeding system carries performance automatically through a suction feeder. It can save the labor cost for you. One worker can look after 5 sets at the same time.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting and maintenance.
The technical parameter of the machine:

Max. Product volume	2L
Out put capacity	5 00~600 pc s /h
Screw diameter	45 mm
Screw L/D ratio	24: 1 L/D
Screw drive power	10 KW
Screw heating capacity	2.6 KW
No. of heating zone	3 zones
Output of HDPE	35 KG/H
Oil pump drive power	4.8 KW
Clamping force	32 KN
Max. size of mold	80-350 mm
Mold stroke	250 X 320 mm
Max. die diameter	80 mm
Blowing pressure	0.6 mpa
Air Volume	0.4 M³ /MIN
Cooling water pressure	0.3mpa
Water consumption	30 L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton

The main components of the machine:

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

Machine Structure
Exhibition
Customer photo
Our Service
FAQ
1. Can the machine customized only for my products?
Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. How about the molds ?
APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. What is the business item for this project ?
a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
4. How is APOLLO after-sales service?
a. Inspection
Before delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory.
b. Debugging Instruction
APOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.
C. User Training
APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they could understand the machine features and could operate the machine by themselves.
5. What is the warranty period?
a. APOLLO machine Main parts is one year warranty with a lifelong maintenance.
b. Mould within one year or 5 millions warranty.

---
