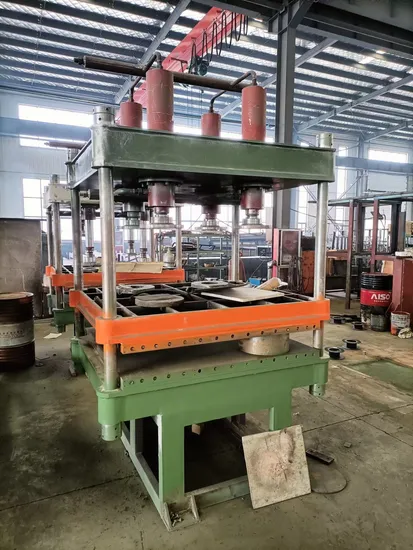

Rubber Bricks Vulcanizing Molding Press/Rubber Car Mat Making machine

Product Description

rubber bricks vulcanizing molding press/rubber car mat making machine
Also named
Rubber molding press; Hydraulic Molding Machine; Hydraulic press; Plate press, compression press; Plate vulcanizing machine, vulcanizer.
Main usage
1, The frame type plate vulcanizer applies to vulcanize all kinds of rubber and plastic mould products as well as non-mould products.
2, Applicable line: Rubber Sheet, Oil Seal, O Ring, Gasket, Engine Mountings, Hardware Rubber, Molded Rubber Parts and etc.
Characteristic
1. This vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
2. The machine is in frame structure with below pressing form (upwards). Under the working hydraulic pressure, the embolism ascends
To make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate,
Platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
3. Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.
Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder
By control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.
4. Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
5. The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.

Type	XLB-D550×550x4	XLB-D680*810*3	XLB-D1300X1300X2
Motor power(KW)	3	3	3
Total pressure(MN)	0.5	1.0	2.0
Plate size	550*550*4	680*810*3	1300x1300x60mm
Plate clearance	150mm	150mm	180mm
Working layer number	4	3	2
Piston stroke	400mm	400mm	300mm
Plate pressure	1.65Mpa	1.8Mpa	1.18Mpa
Heating	Electric	Electric	Electric
weight	3600Kg	4500Kg	9500kg

---
