Basic Info.
Crushing Style
Grinding and Impact
Compressive Strength (For Crushing)
100-250MPA
Crushing Degree
Fine Grinding Machine
Finished Surface
Gear Process
Tongs′ Features
Adjustable Tongs
Principle
Cylinder Culling
Name

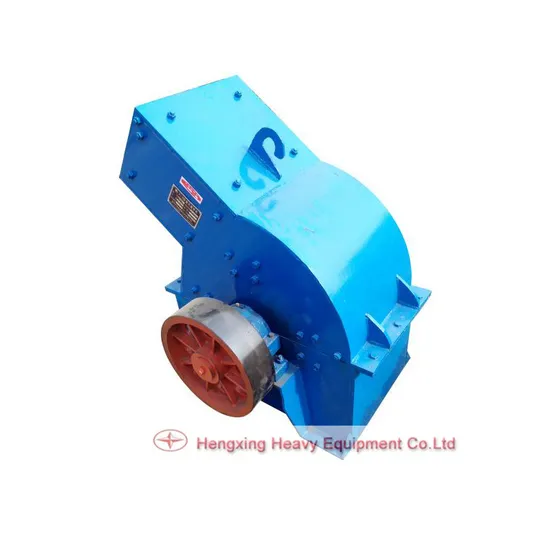

Best Price Small Hammer Crusher for Sale
Transport Package
Standard Container
Specification
ISO9001-2008
Production Capacity
15-30t/H
Product Description
Best Price Small Hammer Crusher For Sale :
♦ Applications Of Hammer Crusher :
A). Hammer Crusher is widely used in mining, cement, coal, metallurgic, construction material, road building, and Petroleum & Chemical industries.
B). Hammer Crusher is used for grinding the medium-hard materials. The material will be grinded by the striking between high-speed hammer and material.
♦ Features Of Hammer Crusher :
A). Hammer crusher has the advantages of high product capacity, high crushing ratio, low power consumption, uniform products partial size, simple structure, compact and light, low investment cost, easy to management, etc.
B). When crushing very hard materials, Marble hammer crusher will cause greater wear of hammer and grate and consume more metal; it needs more maintenance time and uniform feeding of materials;
C). When crushing soft-moist materials, the capacity will become significantly lower and even stop because of material jam. In order to avoid jam, the moisture content of materials should be less than 10%-15%.
♦Working Principle Of Hammer Crusher :
The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers, when the material get into the working areas of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which a re crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.
♦ Main Technical Parameters Of Hammer Crusher :
Model | Feeding size (mm) Max | Discharging size (mm) Max | Capaticy (t/h) | Motor power (kw) | Weight (kg) |
PC200x300 | ≤100 | ≤20 | 1-5 | 5.5 | 500 |
PC300x400 | ≤200 | ≤25 | 5-10 | 11 | 800 |
PC310x520 | ≤200 | ≤25 | 8-15 | 18.5 | 1400 |
PC600x400 | ≤250 | ≤30 | 10-22 | 22 | 2260 |
PC800x600 | ≤250 | ≤35 | 18-40 | 55 | 4800 |
PC1000x800 | ≤350 | ≤35 | 25-50 | 75 | 5900 |
PC1000x1000 | ≤350 | ≤35 | 30-55 | 90 | 8000 |
PC1250x1250 | ≤350 | ≤35 | 35-65 | 132 | 14000 |
PC1400x1400 | ≤350 | ≤35 | 50-100 | 280 | 32000 |
PC1600x1600 | ≤350 | ≤35 | 100-150 | 480 | 37500 |
