Manufacture Hydraulic Industrial High Speed Cutting Machine Full Precision Automatic Paper Cutter

Product Description

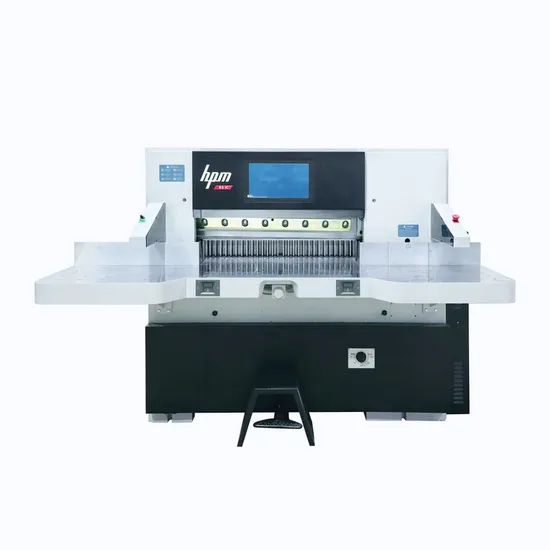

SQZK92S16 Program Control Paper Cutter

Computer System Full touch display screen German operating system is equipped to meet the operating habits of domestic users and guarantee convenient operation; Mainboard adopted industrial chip imported from Italy; Highly sensitive of the touch screen has real-time responses; Equipped with signal amplification function and excellent anti-interference to avoid dimension errors due to drive aging; Dimension in front of knife will be displayed to facilitate sizes for cutting; Program storage capacity is 300 programs, each program can store 200 items cutting size. computing with four operations, output programs in real time; Equipment has relative positioning function relative to current position; With minimal compensation, it can rapidly correct program errors due to paper distortions; It can rapidly find out user-defined number of cutters; Each air cushion program can be programmed; The time of automatic cutting signals can be set up and cancelled; single automatic cutting can be started by inputting a password; High and low speeds can be manually switched over rapidly; A paper-pushing program is equipped to push paper automatically so as to guarantee safety and enhance operation efficiency; Automatic cutting can be made as per instructed programming; Display precision is 0.01mm; Multiple languages such as Chinese and English are available for order management; Manual and automatic operations can be rapidly switched over to enhance efficiency to the greatest extent; Voice messages are equipped to make users judge equipment conditions correctly.
Machine Performance Chrome-plated for main worktable and side tables, and has the device of air cushion, which is convenient for backgauge running. Adopts high stiffness linear guides and high precision gapless lead screw to ensure backgauge accuracy and effectively improve the anti-impact capability against unidirectional impact. Adopts double hydraulic system which is composed of two hydraulic circuits. When press the footpedal, the hydraulic oil goes through the primary hydraulic circuit made up of reducing valve and spillover valve, and gives the cutting paper micro pressure. The pressure is only several kilograms and can't hurt operator's hands. At the time of cutting paper, put thousands of kilograms of high pressure to ensure the cutting quality and safe operation.
Configuration Listing

No.	Name	Brand, specification & model	Origin of brand
1	Background LCD	16''Color touch Interface	China
2	PLC	Inovance	China
3	Backgauge position motor	Inovance servo motor	china
4	Pick-up	Autonics	Korea
5	Limit switch	TE	France
6	Guarding motor	TE	France
7	Air switch	TE	France
8	AC Contactor	TE	France
9	Miniature relay	TE	France
10	Switching power supply	TE	France
11	Power switch	CANSEN	China
12	Press-button	TE	France
13	Ball screw	High accurate	China
14	Linear guider	High accurate double linear guides	Taiwan
15	Hydraulic system	Combination Valve	Germany
16	Oil Pump	HP	Italy
17	Bearing	NSK	Japan
18	Work Table	Slotless and plated chromium work table	China
19	Photocell	Allen-Bradley	China
20	knife	HSS	China

Technical Parameter

Model	Unit	92
Max.Cutting Width	cm	92
	inch	36.2
Max.Cutting Length	cm	92
	inch	36.2
Max. Cutting Height	mm	120
	inch	4.7
Min. Cutting Size (without false clam plate)	mm	25
	inch	1
Min. Cutting Size (with false clamp plate)	mm	90
	inch	3.5
Front Table Length	cm	63.2
	inch	24.9
Max.Clamp Pressure	N	30000
Max. Cutting Speed	time/min	45
Main Motor	KW	3
Net Weight	Kg	2300
Gross Weight	Kg	2500
Packing Size(L×W×H)	cm	228×140×188

---
