Product Details
Product Description
Product Description

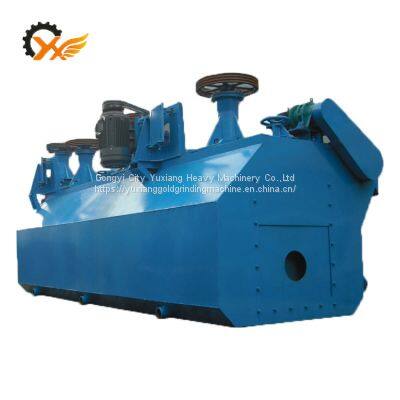

High efficiency reliable xjk/sf series electric flotation tank machine with ISO CE approved for mineral separator
Floatation machine refers to the completion of the floatation process of mechanical equipment. In the floatation machine, the slurry treated by adding agents is inflated by stirring, and some of the ore particles are selectively fixed on the bubbles. The surface of the slurry is scraped to form foam products, and the rest is retained in the slurry for the purpose of separating the minerals. The floatation machine is the latest design to use the circular tank concept and combines the benefits of circular cells with the unique features of the Minerals mechanism to create the ideal conditions to maximize floatation performance for all roughing, cleaning and scavenging duties.
Advantages of Floatation Machine
1.Floatation machine uses automatic control system, easy to operate, the product is guaranteed.2.Floatation machine adopts special wear-resistant material, light and reliable, the service life of the equipment will also be extended.
3.Large processing capacity, high sorting precision, high production efficiency, low energy consumption, low operating cost.
4.Process flow diversification, for the choice of coal quality, according to the actual situation to choose the rough or select process, the operation is more flexible.
Working of Principle
Floatation Machine is usually a continuous process by a few tanks, dozens of tank floatation machine connection, including roughing, scavenging, concentration operations. The use of floatation machine should meet the following requirements about equipment and processes, varies parts are complete and intact. Machines function normally and achieve the required aeration rate. Motor drives impeller rotating through belt and pulley. On the one hand, the machine inhaled enough air mixed with slurry, on the other hand, stirring the mixture of pulp and pharmaceutical. At the same time, refinement of the bubble, the particles adhere to the bubbles on the role of reagents and float to the slurry surface.
Floatation machine is mainly used for the separation of copper, zinc, lead, nickel, gold and other non-ferrous metals, can also be used for black metal and non-metallic coarse selection and selection.
Model
| SF0.37
| SF0.7
| SF1.2
| SF2.8
| SF4
|
Tank Volume(m³）
| 0.37
| 0.7
| 1.2
| 2.8
| 4
|
Impeller Dia(mm)
| 300
| 350
| 450
| 550
| 650
|
Capacity(m3/min)
| 0.2-0.4
| 0.3-0.9
| 0.6-1.2
| 1.5-3.5
| 0.5-4
|
Impeller Rotate Speed(m³/min)
| 352
| 400
| 312
| 268
| 238
|
Motor
| Model
| Y90L-4
| Y100L2-4
| Y132M2-6
| Y160L-6
| Y180L-6
|
Y90S-4
| Y90S-4
| Y90S-4
| Y90S-4
| Y90L-4
|
Power(kw)
| 1.5
| 3
| 5.5
| 11
| 15
|
1.1
| 1.1
| 1.1
| 1.1
| 1.5
|
Overall Dimension(mm)
| 700*700*750
| 900*820*950
| 1100*1100*1100
| 1700*1600*1150
| 1850*2050*1200
|
Unit Weight（kg)
| 468
| 600
| 1373
| 2338
| 2660
|
>>
