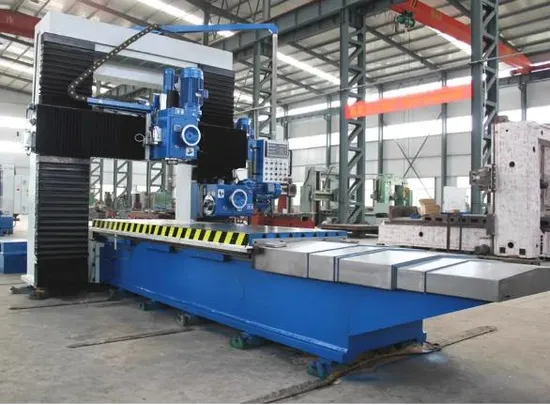

Universal Vertical Gantry Milling Machine X2008

Product Description

Product Description
Universal vertical gantry milling machine X2008
The main performance characteristics: √ gear driven milling head with 7.5kw spindle motor, ensures powerful milling √ 6 steps spindle speed from 82rpm to 505rpm, for good torque when processing √ 35° left and right swivel head, with 350mm spindle stroke √ rectangular and V type guideway design, high rigidity & low friction, 2000kg load capacity √ scientific design of electrical circult cabinet for easy maintenance √ brief designed control panel is easy to operate
Product Parameters

Items		Unit	X2008 (2m)	X2008 (3m)
Max travel of table-X axis		mm	2000	3000
Max width allowed to pass		mm	1100
Max height allowed to pass		mm	800
Distance between columns		mm	1140
Max load		kg	2000
Table size	Length	mm	2000	3000
	Width	mm	800
Table feed speed	Feed	mm/min	0-1400 (stepless)
	Rapid	mm/min	1400
Spindle taper		-	7:24 ISO50
Spindle speed range		rpm	82-505
Spindle speed steps		-	6 steps
Max swivel angle of vertical head		-	±35°
Mill head feed speed (along beam)		mm/min	65/320/890
Mill head feed speed step		-	3 steps
Mill head sliding ram stroke		mm	350
Power of spindle motor		kw	7.5
Power of table motor		kw	4
Machine overall size	Length	mm	4000	6000
	Width	mm	3000
	Height	mm	2300

Detailed Photos

Certifications
Packaging & Shipping
Company Profile
Our factory is located in Tengzhou City, with nearly 20 years history & more than 200 employees.Products include: Gantry machining center, VMC machining center, CNC lathe,conventional manual mills (vertical, horizontal, universal, knee-type, bed-type, gantry-type etc.) Among them, about 70% of the products will be exported to Germany, Poland, Italy, France, Russia, the United States and other European and American international markets.
All products of the company have passed the international standard quality system certification ISO9001 and CE certification, please believe that we are a reliable supplier, you can fully trust our products, hope that we can establish long-term cooperation
Welcome visit our company Shandong XILI Machine Tool Co.,LTD./Tengzhou XILI Machine Tool Co.,LTD.
Address: Xingteng road, industrial area Tengzhou city, Shandong province, China.
Every year, we attend many exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
FAQ
1.What is the MOQ ? A.Our minimum order quantity is 1 set.
2. What are the main products of the company?
A. The main production of CNC machining center series (gantry, vertical, horizontal), turning and milling compound, milling machine series (CNC, lifting table, gantry, ram type) and other more than 80 varieties of specifications.
3. why should you buy from us not from other suppliers?
A. Our company has more than 20 years of experience in the field of machine tools. At the same time, with a professional R & D team, actively attract domestic and foreign advanced technology combined with independent research and development, continuous innovation. More than 140 patents have been authorized by the State Intellectual Property Office, including 14 invention patents.
4. How long is the guarantee ?
A. 12 month after machine's delivery from factory. Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. what services can we provide?
A. Accepted Delivery Terms: Usually is FOB, Others like CIF,CFR,EXW...... are also acceptable.
B. Accepted Payment Type: Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos, Other payment terms are also acceptable after discussion.

---
