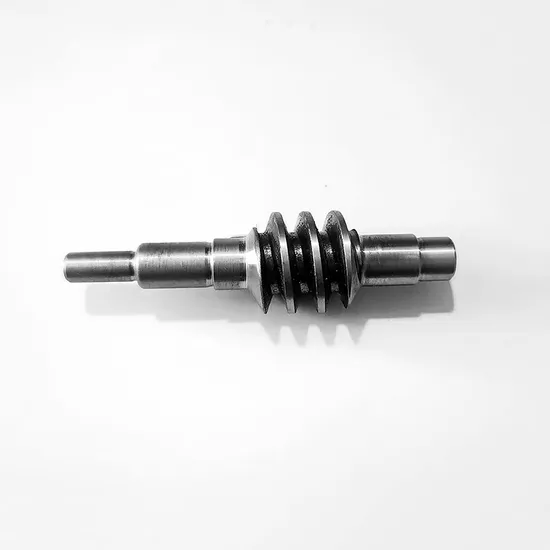

Shaft Factory Large Gearbox Drive Cast Iron Worm Gear Worm Shaft

Product Description

Product Description
Straight sided axial worm shaft, also known as ZA worm, is a kind of worm in the plane perpendicular to the axis of the worm shaft, tooth profile for the Archimedes helix. On the plane containing the axis, has a straight tooth profile and has a tooth profile Angle α0 of 20°.
This design enables to transmit motion and power effectively through its spiral tooth profile when the worm is rotating. In particular, when the worm rotates, it will drive its engaging worm gear to rotate together, to achieve the transmission function.
Straight sided axial worm shaft with its simple structure and wide application fields shows its unique value in transmission and hydraulic machinery.
Product Parameters

Worm Shaft process flow chart

Note: After each process, our inspector must check whether it is within the tolerance before proceeding to the next step.

Detailed Photos
Products Show
Manufacturing Capacity
Quality Control Method

Advanced Planning	Process Control	Quality Issue Feedback
·Multi-functional project team ·Build up standard tree,do the analysis and training ·DFMEA ·4 stage project review, quality gate ·PFMEA ·Visualized WI	·First and final piece100% inspection. ·Combine self-inspect and patrol inspect. ·Regular inspection on fixture and gauges. ·Upper andlower process error prevention control ·5M1E management	·Quick feedback, arrive sitewithin 10 minutes ·Define interim and containment action within 4hours ·Daily quick response meeting ·8D ·6 Sigma ·Actions follow-upvalidation ·Share to similarproducts ·Record into failure mode database

FAQ
Q1: Are you a manufacturer?
Yes, we have been in manufacturing and providing excellent linear motion partsfor customers more than 20years.
Q2: How long could you prepare samples?
Ans:Normally 1days if we have the sample onhand.lf customized one. about a week around.
Q3: How about batch order production?
Ans: Normally 30days or so for one container
Q4: Do you inspect the finished products?
Ans:Yes, we will do inspection according to lsO standard and ruled by our QCstaff.
Q5: How do you ship the goods?
Ans: By sea, by air by truck or by courier(UPSDHLFedexTNT etc.)
Q6: What advantage do you have?
Ans:1.We have professional engineers,customers can expect the best possibleadvice and support. 2.Related responsible team to answer all your questions and follow-upprocess for you and do update in time. 3.Strict and standard process control according to Quality ManagementSystem.
4.Documents support on products, we have strong technical data sheet tosupport our products, which could make you easier to know our products.

---
