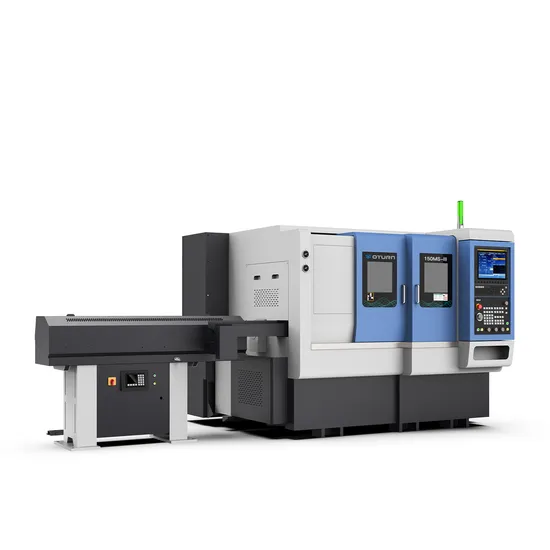

Double Spindle CNC Lathe Sy150ms for High Finish and Heavy Machining

Product Description

Product Description
Crafted with high-strength HT300 one-piecestructurecastingironbed, this 30-degree steptypeflat rail structure utilizes finite element analysis for exceptional mechanical rigidity and stability. It ensures long-term accuracy, processing stability, and tool longevity, thanks to stress relief treatment.improve accuracy and stability with a high-strength roller rail design. The drive system features a screw pre-tension design that enhances response rigidity.
Simultaneous processing at both ends of the workpiece in one clamping significantly simplifies manual operations, boosts output, and reduces processes. The second spindle is fully capable of turning and handling workpieces during machining, thereby reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ringtypeincremental encoder (Sine and cosine) achieves positioning accuracy of 20 arc seconds and C-axis indexing accuracy of 40 arc seconds.
Effectively eliminate spindlevibration, with nose end deflection accuracy within 0.002mm.Enhances surface finish of the workpiece.
The rear-mounted rotor facilitates easy installation and maintenance.
Equipped with a cooling system, the spindle motor maintains constant working temperature, suppressing thermal displacement. The spindle system, having passed strict dynamic balance tests, retains precision, high rigidity, and efficiency. It excels in both finishing and heavy-duty rough machining, ideal for mass production of complex shapes and high-finish products.product.
2. High rigidity integral servo power turret offers rapid and precise tool change performance. It features a high-rigidity BMT interface and power transmission driven by a servo spindle motor.
3. Equipped with THK linear guide rails and ball screws, heat-treated and precision-ground for superior precision and durability. Each axis employs a direct transfer shaft structure and double-anchor pre-relay method, minimizing thermal displacement and enhancing machining accuracy. It ensures smooth displacement, low noise, and extended service life even under impact, thanks to its high rigidity, large size, and heavy-duty linear slide rails.
4. Standard configuration with FANUC system. The feed drive features a FANUC servo motor.
5. A superior hydraulic and lubrication system incorporating high-quality hydraulic pumps, valves, and components, drastically reduces failure rates. The design is both simple and reliable.
6. Featuring a Taiwan rotary chuck, oil cylinder, and automatic chip removal device to greatly reduce operator labor intensity and ensure safe, efficient production. These components can be controlled via programming and include a special fixture.
Product Parameters

Item	Unit	150MS-III
Max. swing diameter over bed	mm	Ф380
Max. processing diameter	mm	Ф100
Max. processing diameter Over tool holder	mm	Ф160
Max. processing length	mm	150
Spindle nose	type	A2-5
Max. speed of spindle	rpm	5500
Oil cylinder/Chuck	"	6
Spindle bore diameter	mm	Ф56
Bar diameter	mm	Ф45
Direct drive spindle motor power	kw	17.5
Spindle torque	N.m	62-125
Sub spindle nose	type	A2-4
Max. speed of Sub spindle	rpm	6000
Oil cylinder/collect	"	5
Sub spindle bore diameter	mm	Ф46
Bar diameter	mm	Ф32
Direct drive sub spindle motor power	kw	11
Sub spindle torque	N.m	27-66
X1/Z1 motor power	kw	1.8/1.2
X2/Z2 motor power	kw	1.2/1.2
X1/Z1 travel	mm	135/370
X2/Z2 travel	mm	215/400
X1/Z1/X2/Z2 fast moving	m/min	30/30/30
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
X1/Z1 slide rail type	/	Roller 35/35
X2/Z2 slide rail type	/	Roller 30/30
Upper power turret type	/	BMT45-12T
Upper power turret motor	Kw/N.m	2.2/26
Max. speed of upper power turret	rpm	6000 ER20
Specification of outer diameter tool holder	mm	20x20
Specification of inner diameter tool holder	mm	Ф32
Adjacent tool change time	sec	0.15
Lower power turret type	/	BMT40-8T
Lower power turret motor	Kw/N.m	2.2/26
Max. speed of lower power turret	rpm	6000 ER20
Max. speed of lower power turret	mm	20x20
Specification of outer diameter tool holder	mm	Ф25
Specification of inner diameter tool holder	sec	0.15
Machine dimension	m	2.2x2.1x1.7
Machine weight	kg	3500
Cutting fluid tank volume	L	180
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750
