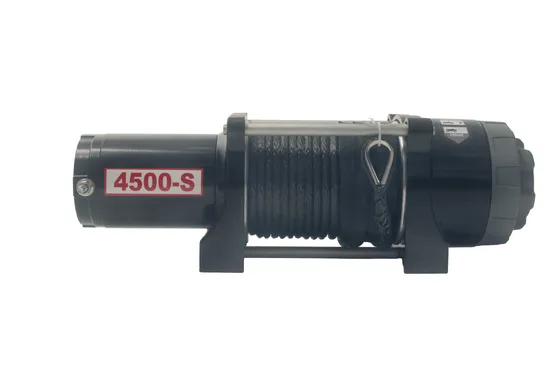

ATV Electric Winch with 4500lbs

Product Description

If you are looking for a reliable and go anywhere winch, please look no further, this 1.61 HP winch is electrically powered that is able to generate 4,500 lbs of hefty pulling power.
SPECIFICATIONS:
Rated line pull: 4500 lbs.(2041 kg)
Gear reduction ratio:166:1
Motor: Permanent magnet motor(Input Power):1.61 hp / 1.2kW (DC 12V)
Free Spooling Clutch:Turn
Braking action:Automatic in the drum
Overall dimensions: 14.80" x 4.61" x 4.84" (376 mm X 117.2 mm X123 mm)
Drum size: Ø 2.24" x 4.72"(Ø 57 mm x 120 mm)
Rope: Ø 7/32" x60'( Ø 5.6mm x 15.3 m)
Mounting bolt pattern :6.57" x 2.99"(167mm x 76 mm)
12 DC Performance specs (First layer of drum)

Line pull	Line speed	Motor	Pull by layer
lbs. (kg)	ft/min (m/min)	Current	Layer/Lbs. (kg)
0	19.4 (5.9)	20 amps	1/4500 (2041)
500 (227)	16.7 (5.1)	45 amps	2/3817 (1731)
1000 (454)	15.1 (4.6)	70 amps	3/3314 (1503)
1500 (680)	14.4 (4.4)	100 amps	4/2928 (1328)
2000 (907)	13.5 (4.1)	120 amps
2500 (1134)	11.8 (3.6)	145 amps
3000 (1361)	10.8 (3.3)	165 amps
3500 (1588)	9.8 (3.0)	180 amps
4000 (1814)	9.2 (2.8)	200 amps
4500 (2041)	8.2 (2.5)	220 amps

Multiple order qty:30
G.W/N.W:13.6/11.8kg(1PC/CTN)
Shipping Carton Size:46*32*18cm(1PC/CTN)
One 20 feet container can fit in 720 PCS winches.
Standard accessories as below:
FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
We can sure within 30-35 days delivery time, but depends on the quantity !

---
