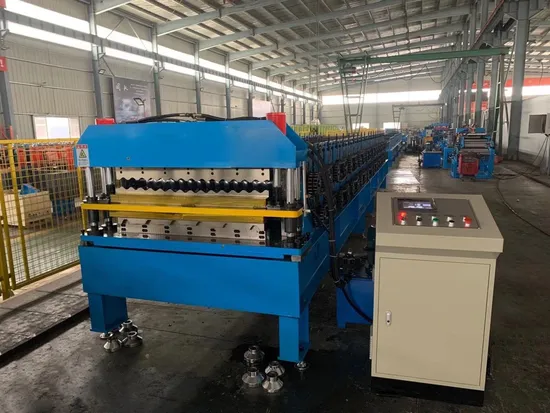

Double Layer Roof Sheet Panel Roll Forming Machine

Product Description

Product Description

Bohai is a double layer roll forming machine manufacturer located in Yingkou city. With more than 20 years of experience in this line, Bohai is able to offer 840 corrugated sheet roll forming machine, concealed roof sheet forming machine, double layer roll forming machine, flat sheet bending machine, sandwich panel forming machine and more roll forming machines for your choice. You are welcome to contact us for more information about our double layer roll forming machine.
Profile Drawing
Product Parameters

Main parameter:
1	De-coiler:	passively de-coiling
2	Load-bearing of de-coiler:	5T
3	Frame of machine:	Welded with 350H beam steel
4	Thickness of wallboard:	16mm
5	Guide feeding way of forming:	Side direction roller type
6	Forming machine type:	Wallboard and chain drive
7	Diameter of shaft:	¢75mm
8	Chain:	16A single row
9	Motor power of forming machine:	5.5KW
10	Line speed of forming machine:	18m/min
11	Steps of forming machine:	16/14
12	Roller material:	superior 45# steel forging
13	Thickness of Chrome plated on roller:	0.05mm
14	Hydraulic station motor:	4 KW, pressure: 8-12Mpa
15	Hydraulic station oil pump:	gear pump
16	Cutting blade material:	Cr12
17	Cutting blade heat treatment:	HRC58ºC-60ºC
18	Rolling thickness:	0.3-0.8 mm
19	Feeding width:	1250mm
20	Precision of cut-to-length:	±2mm
21	Electrical control system:	Computer adopts PLC, touch screen
22	Voltage:	380V, 50Hz, 3 Phases.
23	Dimension of machine:	6.8m x 1.7m x 1.5m

Technological process
Passively de-coiling → Guiding & Feeding material → Roll Forming → Cutting-to-length → Output panel
Technological process figure

Equipment configuration

Manual De-coiler(5T)

Main machine of roll forming

Hydraulic forming cutter

Hydraulic station

PLC computer operation cabinet

Runout table

Feature
This double layer roll forming machine exerts the performance meeting the international standard level. It supports the custom design and fabrication based on the specific demands of customers. Moreover, we offer perfect after sales service for users and can help users to accomplish the installation, adjustment and maintenance of the product.

Finished sample projects
Company Profile

Packaging & Shipping
Nude package in 40" HC container
Customer visit
Photo with our customers
FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us. Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory! Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory. Q: What is your service?
A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
Certifications

---
