Pulse Oximeter Portable Monitoring Device for Smart Bracelet

Product Description

BM2000D Sleep monitoring system
Suitable for sleep hypopnea syndrome monitoring
Instructions
Berry Sleep Apnea Screening Monitor has CE0123, ISO13485, NMPA and we can meet most people's measurements of blood oxygen and pulse rate. It can accurately capture pulse signals and has been validated in numerous clinical trials.
Widely Used In Daily Life
BM2000D applies to Aviation,Snorer,Child,Asthma,COPD
Major Features

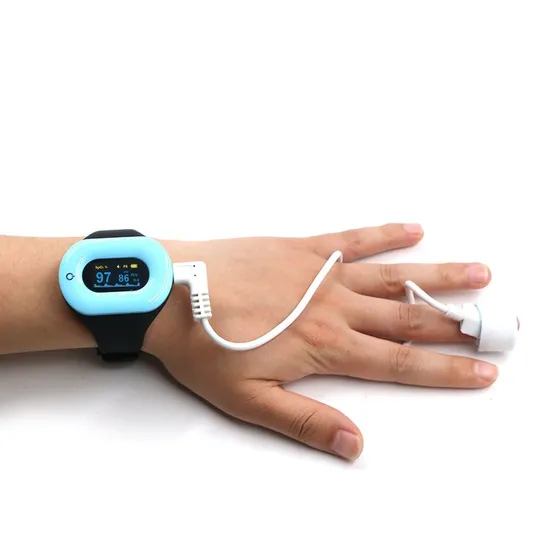

1.Watch type, light weight.
2.Simple and convenient, get all function with one touch button.
3.Color OLED display of SpO2, Pulse Rate, Pulse intensity bargraph, and Plethysmogram, indication of battery, Bluetooth.
4.Low power consumption, built-in 3.7v rechargeable lithium battery lasting 24 hours.
5.Automatically screen off after 30s, automatic shutdown after 10 mimutes when probe off or no finger in testing, No manually shutdown.
6.High accuracy under the condition of low perfusion.
Operation Process
1,Download the BerrySmartHealth APP from Google Play and Apple Store.
2,Wear the equipment to keep at least 6 hours sleep monitoring.
3,Put on the device and wrap foam spO2 sensor around fingertip.
4,The collected data is transferred to the mobile phone via bluetooth.
5,Display report on phone.
6,Reports can be shared.
Technical Features

Display SpO2, PR	Battery Type: 3.7v (600mAh) Lithium battery
Pulse Rate: Measurement range: 25 - 250bpm Accuracy: ±2bpm	SpO2: Measurement range: 0% - 100% Accuracy: ±2% (70% - 100%)
Size:55(L)x37(W)x18(D)mm	Weight: 52g±1g (Do not contain sensor)
Working Voltage: DC 3.4v ~ DC 4.3v	Free App: "BerrySmartHealth"

Accuracy TestBlood Oxygen Concentration Tes Pulse Rate Test Berry Product Rate VS Reference heart rate ECG Correlation=0.98, P-value< 0.0001 Average reference oximeter Reference Heart Rate(ECG) Effective (SaO2) (ECG) [BPM]

Comparison: Reference Pulse Oximeter
Berry Pulse Oximeter	70 ~ 100	90 ~ 100	80 - < 90	67 - < 80	RESE≤3% Within the range of 70~100%
# pts	240	79	81	81
Error	-0.6	-1.1	-0.9	0.1	Pass
Root mean square error	1.9	1.7	2.0	2.1

Berry products have passed the accuracy test, blood oxygenconcentration accuracy <2%,510k requirements<3%
Parameter Comparison ChartApnea Trend
Hypopnea Trend
Software Advantage
Blood Oxygen Results Mean Blood Oxygen Results Diagnosis Of Hypoxemia OSAHS Diagnosis
PSG vs. ROC Curve
Analysis Of Clinical Trial Results

Mean Blood Oxygen
Average blood oxygen calculation accuracy: 98.51%
Diagnosis of hypoxemia
Sensitivity: 89.29%	Specificity: 77.78%	Accuracy:92.59%
OSAHS Judgment Results
Sensitivity: 94.17%	Specificity: 61.21%	Accuracy:89.62%

Standard Configuration
1,Foam SpO2 Sensor
2,Charging Cable
3,Gift Box
4,User ManualReports can be shared.
Physical Identity
Dimension: 55(L) × 37(W) × 18(D) mm
Weight: 52g±1g (Do not contain sensor)

---
