High-Speed Multi Axis 5 Axis Vmc Machine CV500 with CE/ISO

Product Description

Product Description

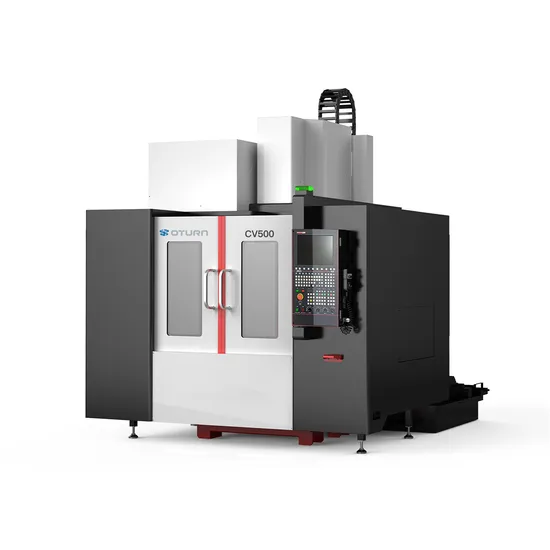

The five-axis vertical machining center CV500 has the characteristics of high rigidity, high precision and high efficiency machining. The column adopts a herringbone design with a large span, which can greatly enhance the bending and torsional strength of the column; the workbench adopts a reasonable slider span and is surface quenched, so that the force on the workbench is uniform and the hardness is improved; the bed adopts a trapezoidal cross-section, reducing The center of gravity improves the torsional strength; the whole machine uses finite element analysis to design each component to provide the best overall stability.
The three-axis rapid displacement is 36 M/min, the T-T tool change time is only 2S, the tool magazine is fully loaded for 24 hours, and there is no alarm for tool change . It is suitable for various 2D and 3D concave-convex models with complex shapes and complex cavities and surfaces. It is also suitable for milling, drilling, expanding, boring, Tapping and other processing procedures are more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be used in automatic lines for mass production.
The dynamic graphic display of the tool track, intelligent warning display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and fast; The reading capacity is increased to 3000 lines/second, which facilitates the fast and efficient transmission and online processing of large-capacity programs.
The RTCP (Rotation Tool center Point) of the five-axis machining center is the tool tip point control function. After turning on the RTCP function, the controller will change from originally controlling the end face of the tool holder to controlling the tool tip point. The tool tip following can compensate for the linearity caused by the rotary axis. Error to prevent Tool collision. As shown in the figure, at point A of the workpiece, the centerline of the tool axis changes directly from the horizontal position to the vertical position. If the linear error is not corrected, the tool tip will deviate from point A or even penetrate the workpiece, causing a serious accident. Because the continuous movement of the swing axis and the rotary axis causes changes in the position of point A, the original tool tip position in the program must be corrected to ensure that the tool tip position coordinates are always unchanged relative to point A, as if the tool tip is moving with point A. , this is the tip of the Tool following.
This function has 0 ~ 9 levels, the 9th level is the highest precision,while the 1st - 8th level compensates the servo backward error, and gives the processing path proper smoothness.
High-speed and High-precision Three-dimensional Processing
The high-speed spindle, the 3D arc machining control can pre-read 2000blocks and smooth path correction for high-speed and high-precision machining.
High Rigidity Structure
Improve the form of structure and optimize the allocation to enhance the machine's rigidity. The shape of machine tool and column and the allocation optimization are the most suitable shape through CAE analysis. The various improved measures which are invisible outside are reflecting a stable cutting ability which the spindle speed cannot show
Product Parameters

Item		Unit	Specification
Travel	X/Y/Z axis travel	mm	700×600×500
	Distance from spindle end face to worktable surface	mm	130-630
	Distance from spindle center to column guide rail surface	mm	628
	A-axis 90 degrees is the maximum distance from the center of the main axis of the C-axis disc mask	mm	310
Three-axis feed	X/Y/Z axis rapid displacement	m/min	36/36/36
	Cutting feed rate	mm/min	0-12000
Spindle	Spindle specifications (installation diameter/transmission mode)	mm	170/Blind in
	Spindle taper	mm	BT40
	Spindle speed	r/min	16000
	Spindle Motor Power (Continuous/S3 25%)	kW	25/26
	Spindle Motor Torque (Continuous/S3 25%)	N.m	51/60
Tool magazine	Magazine capacity		24T
	Tool change time (T-T)	s	1.8
	Tool diameter (full tool/neighbor empty tool)	mm	80/150
	tool length	Mm	300
	tool weight	kg	8
Guide	X-axis guideway (size/number of sliders)	mm	35/2 (roller)
	Y-axis guideway (dimensions/quantity of sliders)		35/2 (roller)
	Z-axis guideway (dimensions/quantity of sliders)		35/2 (roller)
Screw	X-axis screw		Φ40×16
	Y-axis lead screw		Φ40×16
	Z axis screw		Φ40×16
Precision	positioning accuracy	mm	±0.005/300
	Repeatability	mm	±0.003/300
Five axis	Turntable drive method		roller cam
	Turntable diameter	mm	φ500*400
	Allowable load weight of turntable	kg	200
	A/C maximum speed	rpm	75/75
	A-axis positioning/repeatability	arc-sec	40/20
	C-axis positioning/repeatability	arc-sec	20/15
Lubrication system	Lubrication unit capacity	L	4
	Oil separator type		volumetric
Cutting fluid	tank capacity	L	200
	Cutting pump parameters		0.32Mpa×16L/min
Other	air demand	kg/c	≥6
	Air source flow	mm3/min	≥0.4
	battery capacity	KVA	26
	Machine Weight (Comprehensive)	t	8
	Mechanical Dimensions (L×W×H)	mm	2653×3122×2985
