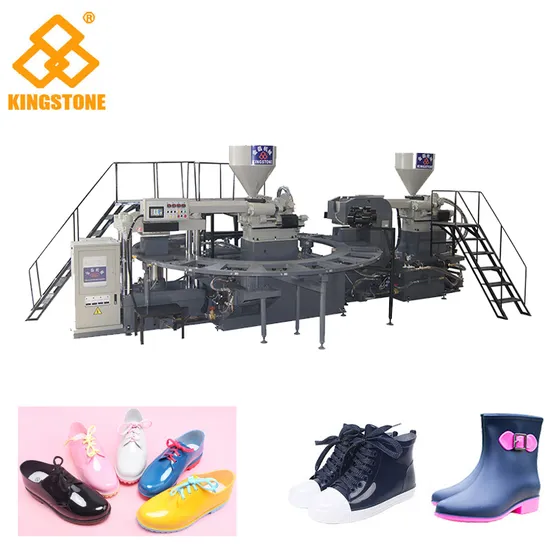

Automatic Two Color Injection Molding Machine for Making Slipper Sandal Shoe Rain Boots in Plastic PVC Material

Product Description

>> Description
Material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
Products:Specialized in producing one color shoes, slippers, sandals and boots.
It is particularly used to the making of all-plastic shoes, and short height boots.
>> Features
1.The oil pressure circuit design ready for mold close will shorten the cycle time and upgrade productivity.
2. Pressure switch assures the locking strength by mold lock system for far better product.
3.The turn table may run reversibly in case of emergency to eliminate the abnormality and upkeep the safety operation.
4. Furnished with mold air-blowing device, the finished products may be de-molded easily.
5.The reversible turntable in case of emergency will eliminate abnormality and upkeep safety operations.
6. Computerization in analysis and design, the machine is well in stability.
7. Conformed to human engineering in design, it features operational compatibility.
8. It could be equipped with air blowing system and can produce light weight, particularly the need for reinforced cooling effect.
>> Machine Photos
>> Machine Specifications

Machine model	JL-106-2C
Mould-clamping Unit
Work station		16/20/24
Clamping force	TON	120
Opening stroke	MM	210
Mould dimension	MM	500*480
Height of injection nozzle	MM	280
Injection Unit
Injector	SET	2
Screw diameter	MM	65/70/75
Screw L/D ratio	L/D	20
Max.injection volume	cm3	650-1000
Injection speed	Cm/s	500
Screw rotation speed	R.P.M	0-200
Electricity Consumption		Normal Motor		Servo Motor
Heating power of injector	KW	7*2		7*2
Hydraulic unit motor	KW	18.5,15		15.7*2+7.5
Total power	KW	47.5		61.4
Temperature control	Section	4	4
Power consumption per hour	Kw/h	30-35		20-25
Dimension and Weight		20 Stations
Machine dimension	(L*W*H)MM	8700*4000*2800
Machine weight	KGS	11500
*Note:Above data only for reference.

>> Machine Drawing
>> Finished Products
>> Package & Shipping

---
