Aluminum AAC AAAC Hard Drawn Standard Bare Steel Reinforced Overhead ACSR Conductor Electrical Cable Power Cable

Product Description

Product Description
Bare Conductor
ACSR / AAC /AAAC / BCC / ACAR Overhead Bare Conductors World's Most Competitive Factory
Application
Overhead lines, sometimes referred to as aerial conductors, are often specified where there are significant distances to cover and where these cables are best positioned far out of reach. The distances to cover, the environmental conditions it will face, and the location are all factors in specifying the appropriate cable. The main classifications of bare conductor are AAC (All aluminum conductor), AAAC (All aluminum Alloy Conductor) or ACSR (aluminum conductor steel reinforced). AAC is most commonly found in urban areas with frequent supports and short spans. It is also used in coastal regions where salt in the air can cause corrosion - the all aluminum wire providing corrosion resistance - and specified for use in the railway industry for OHL electrification. AAAC tend to be specified where greater mechanical resistance is required and where there is a reduced sag characteristic. The ACSR, with its steel reinforcement provides additional strength and where the spans run for larger distances, such as across rivers. The advantages of AAC, AAAC and ACSR come in their lightweight properties. These overhead lines have no specified voltage rating - it will depend on the type of installation - although the higher corona limit of ACSR makes it beneficial when used with high voltage and extra-high voltage transmission. The overhead line wires are manufactured in accordance with various national standards and can be sized appropriately - including GB/T1179 ASTM B231, ASTM B399, IEC 61089, DIN 48201, BS 215, BS 3242, BS EN 50182 and Spanish standard UNE 21.018. etc.
Standards
GB/T1179, IEC61089, ASTM B231, ASTM B399, BS215-1, BS3242, DIN48201, BS EN 50182 etc.
Bare conductor recommendations

Type	Description
AAC	All Aluminum Conductor
ACSR	Aluminum Conductor Steel Reinforced
AAAC	All aluminum Alloy Conductor
ACAR	Aluminum Conductor Alloy Reinforced
AACSR	All Aluminum Alloy Conductor Steel Reinforced
ACSR / AW	Aluminum Conductor Aluminum Clad Steel Reinforced
TACSR	Thermal Resistant Aluminum-alloy Conductor Steel Reinforced
ACSS	Aluminum Conductor Steel Supported
ACSS/AW	Aluminum Conductor. Aluminum-Clad Steel Supported
ACSS/TS	Aluminum Conductor, Steel Supported. Trapezoidal Shaped
ACS	Aluminum Clad Steel
CCS	Copper Clad Steel
GSW	Galvanized Steel Wire

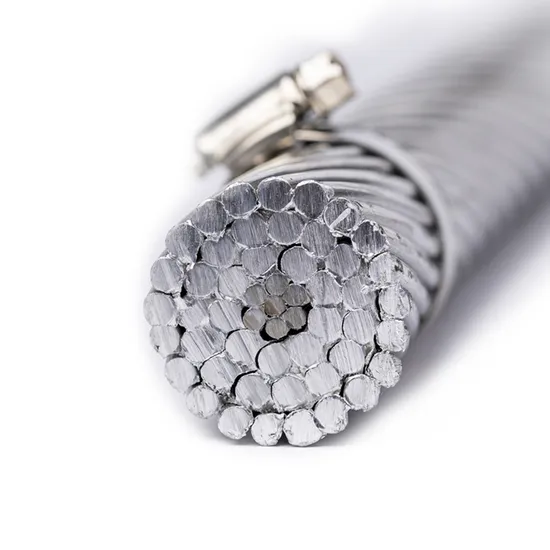

Construction of ACSR
ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normallyof 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.
By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.
Technical Data

Numbers of Wires		Final Modulus of elasticity	Coefficient of linear expansion
Aluminium	Galvanized Steel	N/mm2 (MPa)	x10-6 (°C)
6	1	81000	19.1
6	7	77000	19.8
12	7	107000	15.3
18	1	67000	21.2
24	7	74000	19.6
26	7	77000	18.9
28	7	79000	18.4
30	7	82000	17.8
30	19	80000	18.0
32	19	82000	17.5
54	7	70000	19.3
54	19	68000	19.4
72	7	61000	21.5

Product Parameters
Aluminum Conductor Steel Reinforced (ACSR)-ASTM B232 Standard (Xinfeng Cable also supply ACSR of other Standard, Please let us know)

Code	Size	Calculated cross-sectional area			Rated Strength	Maximum DC Resistance at 20ºC	Current Rating*
		Al	Steel	Total
	AWG or MCM or KCMIl	mm²	mm²	mm²	kN	Ω/km	A
Turkey	6	13.29	2.19	15.48	5.29	2.15860	76
Swan	4	21.16	3.55	24.71	8.28	1.35570	101
Swanate	4	21.16	5.35	26.50	10.50	1.35570	102
Swallow*	3	26.69	4.45	31.14	10.21	1.07124	119
Sparrow	2	33.61	5.61	39.22	12.68	0.85350	135
Sparate*	2	33.61	8.52	42.13	16.11	0.85350	135
Robin	1	42.39	7.10	49.49	15.79	0.67670	156
Raven	1/0	53.48	8.90	62.38	19.49	0.53640	180
Quail	2/0	67.42	11.23	78.65	23.62	0.42550	207
Pigeion	3/0	85.03	14.19	99.22	29.45	0.33730	239
Penguin	4/0	107.23	17.87	125.10	37.15	0.26750	275
Waxwing	266.8	135.16	7.48	142.64	30.61	0.21330	313
Partridge	266.8	135.16	22.00	157.16	50.27	0.21430	316
Ostrich	300	152.00	24.71	176.71	56.50	0.19060	341
Merlin	336.4	170.45	9.48	179.93	38.62	0.16910	361
Linnet	336.4	170.45	27.81	198.26	62.73	0.16990	365
Oriole	336.4	170.45	39.81	210.26	76.97	0.17040	367
Chickadee	397.5	201.42	11. 16	212.58	44.22	0.14310	400
Brant	397.5	201.42	26.13	227.55	64.96	0.14380	403
Ibis	397.5	201.42	32.77	234.19	72.52	0.14380	404
Lark	397.5	201.42	46.97	248.39	90.31	0.14420	406
Pelican	477	241.68	13.42	255.10	52.50	0.11930	448
Flicker	477	241.68	31.29	272.97	76.52	0.11990	448
Hawk	477	241.68	39.42	281.10	86.76	0.11990	448
Hen	477	241.68	56.39	298.07	105.90	0.12010	451
Osprey	556.5	282.00	15.68	297.68	60.95	0.10220	492
Parakeet	556.5	282.00	36.58	318.58	88.01	0.10270	495
Dove	556.5	282.00	45.94	327.94	100.5	0.10270	497
Eagle	556.5	282.00	65.81	347.81	123.6	0.10300	499
Peacock	605	306.58	39.74	346.32	96.01	0.09450	520
Squab	605	306.58	49.94	356.52	108	0.09450	521
Wood Duck	605	306.58	71.55	378.13	128.5	0.09470	525
Teal	605	306.58	69.87	376.45	133.4	0.09470	525
Kingbird	636	322.26	17.90	340.16	69.79	0.08945	533
Rook	636	322.26	41.81	364.07	100.83	0.08989	532
Grosbeak	636	322.26	52.45	374.71	111.8	0.08989	537
Scoter	636	322.26	75.22	394.48	135.44	0.09011	541
Egret	636	322.26	73.55	395.81	140.3	0.09011	541
Swift	636	322.26	8.96	331.22	60.85	0.0889	532
Flamingo	666.6	337.74	43.81	381.55	105.3	0.08577	551
Gannet	666.6	337.74	55.03	392.77	117.3	0.08577	553
Stilt	715.5	362.58	46.97	409.55	113.3	0.07989	576
Starling	715.5	362.58	59.03	421.61	126.2	0.07989	577
Redwing	715.5	362.58	82.58	445.16	153.8	0.08009	580
Tern	795	402.84	27.87	430.71	98.23	0.07191	610
Condor	795	402.84	52.19	455.03	125.3	0.07911	612
Cuckoo	795	402.84	52.19	455.03	123.94	0.07191	612
Drake	795	402.84	65.51	468.45	139.92	0.07191	615
Coot	795	402.84	11.16	414.00	74.85	0.07156	619
Mallard	795	402.84	91.87	484.71	171.18	0.07208	619
Ruddy	900	456.06	31.54	487.60	109.31	0.06351	656
Canary	900	456.06	59.10	515.16	140.95	0.06351	660
Rail	954.000	483.42	33.42	516.84	115.85	0.05992	680
Catbird	954.000	483.42	13.42	496. 84	87.66	0.05962	679
Cardinal	954.000	483.42	62.65	546. 07	149.36	0.05992	685
Orlan	1033.500	523.68	36.19	559. 87	123.10	0.05331	713
Tanager	1033.500	523.68	14.51	538.19	94.93	0.05504	710
Curlew	1033.500	523.68	67.87	591.55	161.80	0.05531	716
Bluejay	1113.000	563.93	39.03	602.96	132.63	0.05136	745
Finch.	1113.000	563.93	71.55	635.48	174.41	0.05161	748
Bunting	1192.500	604.26	41.55	645.81	141.79	0.04793	776
Grackle	1192.500	604.26	76.58	680.84	186.78	0.04817	777
Bittern	1272.000	644.51	44.52	689.03	151.48	0.04494	805
Pheasant	1272.000	644.51	81.63	726.19	194.00	0.04516	808
Skylark	1272.000	644.51	17.87	662.38	115.85	0.04472	804
Dipper	1351.500	684.84	47.10	731.94	160.70	0.04230	834
Martin	1351.500	684.84	88.71	771.55	206.05	0.04250	838
Bobolink	1431.000	725.10	50.32	775.42	170.71	0.03994	862
Plover	1431.000	725.10	91.87	816.97	218.24	0.04013	866
Nuthatch	1510.500	765.35	52.90	818.25	177.89	0.03784	888
Parrot	1510.500	765.35	96.84	862.19	230.20	0.03802	892
Lapwing	1590.000	805.68	55.48	861.16	187.02	0.03595	916
Falcon	1590.000	805.68	102.10	907.81	242.55	0.03613	919
Chukar	1780.000	902.70	73.51	902.72	226.85	0.03245	976
BlueBird	2156.000	1092.00	88.80	1092.28	268.30	0.02681	1083
Kiwi	2156.000	1100.00	47.50	1099.20	221.60	0.02684	1083
Thrasher	2312.000	1170.80	65.15	1170.80	253.00	0.02478	1122

Company Profile
Xinfeng Cable is a leading cable manufacturer based in China, with over 28 years of experience since its establishment in 1996. With a capital investment of RMB 210 million, Xinfeng has grown into a trusted supplier of high-quality cables used in numerous industries, including energy, construction, telecommunications, and transportation. The company operates from a state-of-the-art facility that covers 100,000 square meters and is equipped with 500 advanced production machines and 50 testing equipment to ensure precision, quality, and adherence to international standards.
Xinfeng Cable specializes in manufacturing a wide range of products such as Aerial Bundled Cables (ABC), Bare Overhead Conductors, Low Voltage Cables, Medium Voltage Cables, Solar Cables, Control Cables, Concentric Service Cables, and Building/Installation Cables. These products are designed to meet the needs of various applications in sectors like power distribution, energy generation, real estate, and industrial projects. The company follows strict quality control procedures that cover every stage of production, from raw material procurement to the final testing of the finished product.
In addition to its advanced manufacturing capabilities, Xinfeng places great emphasis on export services, ensuring timely and efficient delivery to clients worldwide. The company leverages its expertise in logistics and supply chain management to offer flexible shipping options, including sea, truck, air, and road transport. Xinfeng's global footprint has expanded to several regions, providing tailored solutions to meet the specific requirements of different markets. The company's robust quality management system ensures that all products adhere to local and international standards, helping customers achieve optimal performance in their projects.
OEM/ODM Service
We support OEM/ODM seriviceXinfeng offer OEM (Original Equipment Manufacturer) services or ODM(Original Design Manufacturer)to our customers. This means that we can design and manufacture custom cables according to the specific requirements and specifications of our clients.
Our experienced engineers and technicians work closely with our customers to understand their unique needs and applications, and develop customized cable solutions that meet their exact requirements. We use high-quality materials and state-of-the-art manufacturing techniques to ensure that our OEM cables are reliable, durable, and meet the highest industry standards.
Whether it's customizing cable lengths, colors, conductors, or shielding, we can provide a wide range of options to suit our customers' needs. Our OEM services are available for a variety of industries, including transmission, construction, Instrumentation and more.
At our facility, we have the capabilities to handle small, medium, and large volume orders, and can provide fast turnaround times to meet our customers' deadlines. We are committed to delivering high-quality OEM cables that exceed our customers' expectations and provide long-lasting performance.
Overall, our OEM services provide our customers with the flexibility, reliability, and quality they need to succeed in their industries. Contact us today to learn more about our OEM capabilities and how we can help you with your custom cable needs.Xinfeng Advantages
We are a reliable China cable manufacturer
Cable manufacturer warranty with modern technology.
Highly flexibility of processing capacity.
Wide products ranges covering bare conductor to high voltage cable.
Cost advantage based on raw materials self-processing.
Cables engineered for greater durability and reliability.
Cables designed to special requirements.
International cable certificates.
What products we can offer for you
From 0.5mm2 of wire to 1400mm2 of conductor, wide size coverage.
From 300v to 36kv for rated voltage, wide voltage coverage.
From house wiring to mining cable.
Service makes the difference
Comprehensive service to simplify your procurement.
Emergency stocks & express deliveries.
Customized packaging to ensure safety and convenience for delivery
Prompt client service and after-sales service support.
OEM and ODM for special requirements.
Packing Display
Certifications
FAQ
What types of cables do you manufacture?
A: We manufacture a wide range of cables, including Medium voltage and low voltage electric cable, overhead aerial cable, overhead bare conductor, electric wire, communication cables, instrumentation cables, control cables, and many others.
Can you customize cables according to our specific requirements? A: Yes, we offer OEM and customized cable manufacturing services. We can work with you to design and manufacture cables that meet your specific needs.
What is your production capacity? A: Our production capacity depends on the type of cable and order volume. However, we have the capability to manufacture large volumes of cables to meet customer demand.
What quality certifications do you hold? A: We hold various quality certifications such as ISO 9001, ISO 14001, OHSAS 18001, and many others to ensure that our cables meet the highest quality standards.
What is the lead time for cable manufacturing? A: The lead time varies depending on the type of cable, order volume, and customization requirements. However, we strive to provide our customers with the shortest lead time possible. Please contact us for the lead time and stock.
What is your payment and shipping policy? A: We accept various payment methods, such as L/C, T/T, D/P. Our shipping policy depends on the destination and order volume. We work with reputable shipping companies to ensure timely and safe delivery of our products.
What is your warranty policy? A: We offer a warranty for our products, which varies depending on the type of cable and application. We stand behind the quality of our cables and strive to provide our customers with the best possible service and support.

---
