Hydraulic MDF Board Plywood Laminating Hot Press Machine Skin Veneer Door Press Hot Press Machine

Product Description

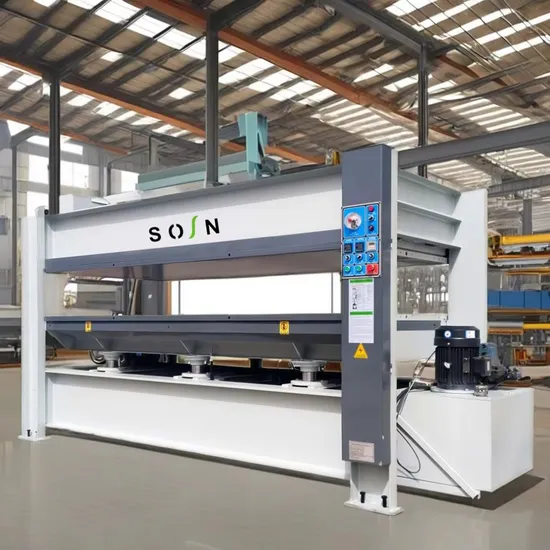

Hot press machine 100 Ton Hydraulic Hot Press for Door Making
Technical Data

Model	BY214*8/100(1)
Total pressure	100ton(3.1kg/cm2)
Feeding direction	Transversal
Dimension of hot platen	2500x1300x42mm
Number of layers	3
Number of platens	4
Stroke	100mm
Diameter of Oil cylinder	Ф100mm
Number of cylinders	6
Heating medium	Steam or thermal oil
Frame structure	welded
Working pressure	25Mpa
Total power	4.5Kw
Thermal oil furnace motor power	37.5Kw
Overall dimension (Approx)	3900*1700*2000mm
Net Weight (Approx)	8000Kg

1)Application
---Suitable to press veneer ,fireproofing-board ,decorating-paper etc.
---make lamination for furniture panel,building partition, wooden door or laminate all kinds of decorative material on man-made board.
---It also can be used for drying or leveling veneer.
2). Feature
---solid steel heat conduction board with deep-hole drilling technic.
---Automatic device for controlling close and open.
---pedal emergency switch, much safety.
---quadric temperature protection device
---Main hydraulic parts cylinders and composites are from Japan and Taiwan .
--- CHINT Electrical parts
3). Heating type
--Electric heating with circulating heat-transmission oil (standard configuration );
--Steam heating (optional)
--With both electric and steam hearing ,suitable for shortage of steam area
Note:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: standard export wooden cast package.
4. Delivery time:20 days after getting the deposit (depends on the quantity)
Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs 2: quick delivery--timely and effective 3: excellent after-sale services--no worries anymore 4: friendly partner relationship--a win-win cooperation
If any question,feel free to contact me.
I am ready to serve you all the time!

---
