2ply Automatic Corrugated Cardboard Production Line Corrugated Machinery

Product Description

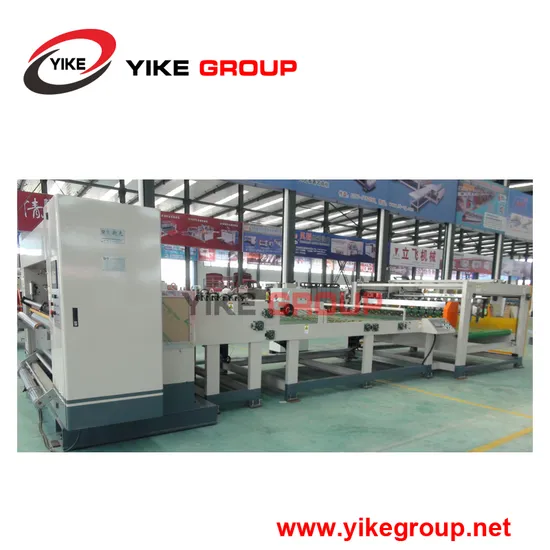

2Ply Automatic Corrugated Cardboard Production Line YIKE GROUP Corrugated Machinery

Specification	Equipment name	UNIT	QTY	Remark
ZJ-F	Shaftless mill roll stand	a	2	Expand chuck,manual dics brakes,Mechanically - actuated lift,panning left and right on the middle, track length6000mm,trolley used 10mm medium plate welding
	Paper trolley	a	4
RG-1-600	Top paper preheater	a	2	Roller¢600mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
SF-280S	Corrugated single facer	a	1	Corrugated main roller¢280mm, material with 48CrMo alloy steel, independent gear box, universal joint transmission structure
ZDF	Conveyor bridge	set	1	Independent frequency motor drive lifting, transmission. Main beam is connected with the 20th channel, 16-beam, No. 63 angles, columns, etc. Both sides of the security fence, the word pedals, ladders.
DHE-150	Single corrugated the aspect Cutter(Spiral knife Crosscutting,NC thin knife slitting,down stacking )	a	1	AC servo control spiral knife structure,Touch screen display. Collect paper machine adopting a classification adjustable count output cardboard, The maximum length of stacked is 1.3 meters. pull paper feed and transverse motor is all frequency speed control, NC thin knife slitting 5 group blades. Spiral knife Crosscutting.

ZJ-F shaftless mill roll stand
Structural features:
1,Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job. Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
2,Each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car, paper guide the use of channel 14 and the guide post weld, paper car adopt 10mmwelded stell, the length of track is 4500mm
3,Manual dics brake, add screw following
4,Electric elements centralized control the electric elements expand chuck
technical parameters:
1,Backstands action mode:mechanical electric operation
2,The range of paper jams:maximum:1800mm minimum:600mm
3,The diameter of paper jams:maximum:¢1400mm minimum:¢400mm
4,Unilateral maximum load:maximum 2000Kg
5,Powered motor parameters:
Paper jams motor550W×4set 380V 50HZ short(S2)working standard
lift motor 1.5Kw 380V 50HZ short(S2)working standard
paper trolley,track
Structural features:
Push the roller in place
Track whole buried, The main frame of the 14th channel with ¢ 20mm cold drawn round welding,the track length 4500mm.
Each paper with two stage paper trolley,and the paper from the two sides at the same time.
main purchased components,materials and place of origin:

Name of main parts	Brands or place of origin	Material and type
Track and paper trolley	Tanggang or Jigang	Number 14 channel steel,Q235A,strip
bearing	HRB,ZWZ,CYC

RG-1-600 top(core)paper preheater
technical parameters:
1,Diameter of the preheat roller:¢600mm Diameter of the angle:¢85mm×2
2,Work power:380V 50Hz
3,Motor power:250W short(S2)work system
SF-280S fingerless type single facer
regular technical parameters: Effective width:1800mm operation direction:left or right(determined in accordance with customer plant) Design speed:100m/min Temperature range:200-260ºC Corrugated flute:(UV type or UVV type) roller diameters parameters: Diameter of corrugated roller: ¢280mm Diameter of pressure roller: ¢284mm Diameter of glue roller: ¢216mm Diameter of preheat roller: ¢320mm powered motor parameters:
1,Main drive motor:7.5Kw, Rated voltage:380V 50Hz Continuous (S1) working standard
2,suction motor:7.5Kw, Rated voltage:380V 50Hz Continuous (S1) working standard
ZDF conveyor bridge
Technical parameters:
1,Working width:1600mm Highest height:3000mm Working speed:150m/min
2,Paper roll and tension roller: ¢130mm Conveyor roller:¢180mm
3,Single-sided corrugated lift motor:3KW (frequency) 380V 50Hz Continuous(S1)Working standard
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	Material
The bridge main skeleton	Tiangang or tanggang	NO20channel iron,NO18beam,NO12channel iron,NO63angle,60*80squal steel and so on connected.
Guardrail	Tiangang	¢42mmLow pressure fluid pipe
Paper lifting leather belt	Shanghai	PVC conveyor
Cardboard conveyor	Hebei	Parallel transport rubber band
Seat belt bearing	Zhejiang wuhuan
Paper motor	Hebei hengshui
Conveying rollers and the Rollers, the paper roll	Tiangang Seamless steel pipe
Contactor	CHNT or DELIXI
Trip switch	Zhejiang CHNT

Note: All the roller surface after grinding and hard chrome plated
DHE-150 Single corrugated the aspect Cutter(Spiral knife Crosscutting,NC thin knife slitting,down stacking )
Structural features:
1,Store 200 groups of orders, the man-machine interface, the screen displays information can be found at any time, modify, append, cancel.
2,American Emerson servo motor drive controller, high-performance synchronous servo motor drive.
3,Cutting Machine adopts inlaid front steel blade structure, hardened gear grinding backlash-free transmission, high precision and long life.
4,Host wall of gray cast iron, rigidity, vibration resistance.
5,Stacking adopt gantry platform lifting, Reach a certain number of right-angle transverse,Three sections of the paper,Some hair design paper roll straight bend output,Second overlapping fixed-length buffer,three part points Pneumatic separate ,Accelerated export cardboard.Improve working efficiency. The maximum length of stacked is 1.6 meters .This machine is suitable for efficient production color printing business.
6,Full servo motor control, change order fast, for a single time 1-3 seconds.
7,Using thin tungsten alloy steel knife,blade sharp,the using life is more than 8000000 meters.
8,Brothers for computer-controlled, automatic or manual knife sharpener can be divided trimming knife edge, increase productivity.
9,Imported synchronous drive system, precision accurate, long life, low operating noise.
10,From high-quality imported industrial computers and high-performance programmable controller configuration, lower computer control system.
Technical parameters:
1,The maximum working width:1600mm 2,operation direction:left or right(Determined in accordance with customer plant)
3,The maximum mechanical speed:150m/min 4,Mechanical configuration:Computer spiral knife crosscutting
5,Cutting length:300-1600mm 6,Minimum slitting width:180mm
7,Precision Cutter:±1mm(Uniform) ±1.5mm(Non-uniform) 8,5 groups ¢200blades
Roller diameter parameters: 1,Cross on the knife shaft diameter:¢200mm Balancing done deal 2,Cross under the knife shaft diameter:¢200mm Balancing done deal
3,Under the pull roller diameter:¢156mm Balancing done deal
Note: After all have been grinding rollers, hard chrome plated at (upper and lower arbor exception) processing.
Power motors and electrical parameters:
1,Main drive motor power:12.5KW Full AC synchronous servo motors
2,Pull the paper motor power:3KW(Frequency Control)
3,Feed motor power:1.5KW(Frequency Control)
4,Transverse motor power:0.75KW(Frequency Control)
