Heavy Duty Industrial Waste Tyre Shredding Machine Tire Recycle Machine

Product Description

Heavy Duty Industrial Waste tyre Shredding machine tire recycle machine:( OUTPUT: 800-1000KG/HOUR FOR 20-30 MESH RUBBER POWDER)
1. GENERAL
This production line including main machine and accessorial equipment, it is used for recycling waste tire and other waste rubber (steel tyre and textile tyre), the final product are rubber powder, fiber and steel wire.
1. Tire wire extractor
Model: LS 1200
Capacity: 20-40 tires/hour
Pulling force(T): 13
Max. Tire diameter 1200mm
Power(KW): 11KW
Stroke distance: 1300mm
Dimension(L*W*H): 3.6*0.78*1.02
Weight: 1200KG
2. Tire cutter
Capacity: -1200kg/h
Motor power: 5.5kw
Tire range: Max 1200mm
Dimension: 2080*1000*2130mm

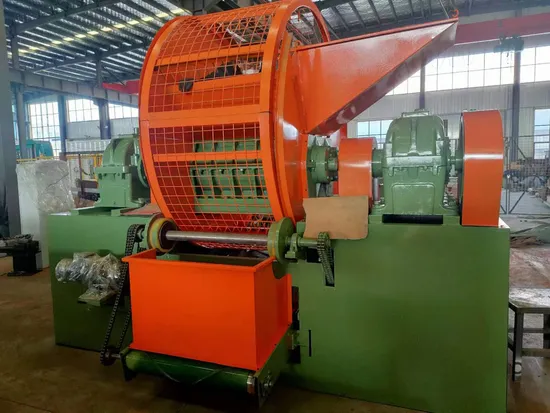

3&4 whole tyre shredder & whole tyre conveyor belt
Model: ZPS900
Specification of feeding: ≤ 900 whole type
Specification of Discharge: ≤ 50*50mm
Capacity(kg/h): 1000-1500
Main motor (2 motors ): 37KW*2=74KW
Dimension(L*W*H)(m): 2.8*2.1*2.4
Number of knife: 18 PCS
Rotary speed: About 20 r/min
Weight(t): 7.0 Tons
5. Big conveyor equipment
To conveyor the rubber block into crusher.
6. Tyre crusher (bearing bush)
Xkp560
Diameter of front roll(mm) 560(smooth)
Diameter of back roll(mm) 510(groove)
Working length(mm) 800
Linear speed of front rollm/min) 25.56
Ratio 1: 1.30
MAX gap(mm) 15
Motor power(kw) 75
Dimension (l*w*h)(mm) 5070*2290*1980
Weight (kg) 190000
Purpose: Crush the rubber block into rubber powder and granule.
7. Big Shaking screen
Purpose:
Separate the rubber granule and powder, Resend the granule to crusher, and send powder to Magnet separator through small conveyor belt.
Separate the textile cord from rubber powder
8. Small conveyor equipment
9. Big Magnet separator
Purpose: Separate the steel small block from the rubber powder.
10. Small shaking screen
11. Small magnetic separator
12. Fiber separator
Model: FS110
Capacity: 200-500kg/h
Motor power: 5.5kw
Dimension: 1.5*1.5*3.4(m)
Weight: About 1.5T
13. Rubber grinder
XMF-270/XMF-330/XMF-420

No	Name	model	quantity	Power consumption(KW)
1	Single hook debeader	LS-1200	1	11kw
2	Tire cutting machine	QTJ-1200	1	5.5kw
3	Tire conveyor	SJ-900	1	2.2kw
4	Whole tire shredder	ZPS-900	1	75kw
5/7	Big conveyor equipment	BCL-8	2	4.4 kw
6	Rubber crushing mill	XKP-560	1	75 kw
8	Small conveyor equipment	BCL-3	1	1.1kw
9	Big Magnet separator	BMS22	1	2.2kw
10	Small Magnet separator	SMS-1	1	1.1kw
11	Big Shaking screen	BSS-8	1	7.5kw
12	Small Shaking screen	SSS-3	1	3kw
13	Fiber separator	XFJ-1100	1	11kw

---
