7.1r130 Hydraulic Motor Planetary Gearbox for Concrete Trucks

Product Description

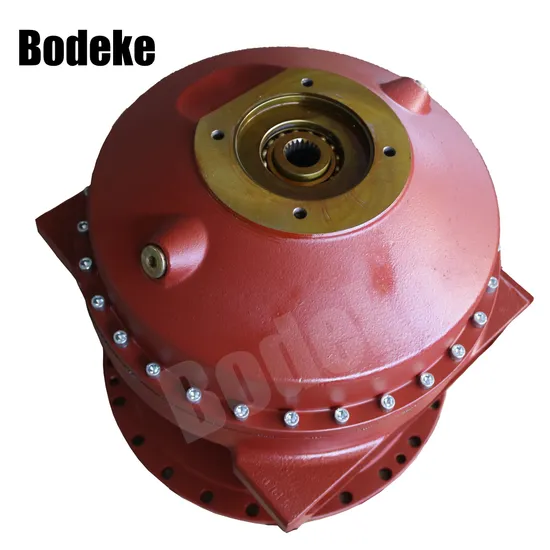

Concrete Mixer Truck 7.1R130 Gearbox for PMP
The 7.1R130 gearbox is a high-performance transmission solution designed specifically for concrete mixer trucks. Engineered to deliver superior durability and efficiency, this gearbox is ideal for heavy-duty applications, ensuring smooth and reliable operations under demanding conditions.
Technical Specifications: Maximum Output Torque: The gearbox delivers an impressive maximum output torque of 71,000 Nm, making it capable of handling heavy mixing loads with ease. Gear Ratio: Featuring a 1:130 ratio, the 7.1R130 ensures optimal torque conversion and efficient power transmission to the drum. Maximum Installation Angle: The gearbox is designed to operate effectively with a drum installation angle of up to 11°, ensuring flexibility across different truck designs. Maximum Input Speed: With a maximum input speed of 2,500 rpm, the gearbox can handle high-speed inputs from the engine while maintaining stability. Maximum Output Speed: The gearbox achieves a maximum output speed of 18 rpm, ensuring precise and consistent drum rotation for uniform concrete mixing. Drum Capacity: Suitable for mixer drums with a capacity ranging from 10 to 14 m³, meeting the requirements of various construction projects. Weight (Without Oil): The gearbox has a lightweight yet robust design, weighing approximately 320 kg, ensuring ease of installation and maintenance. Lubrication Oil Quantity: The gearbox requires 11.5 dm³ of lubrication oil, ensuring smooth operation and enhanced longevity. Flange Misalignment Tolerance: The gearbox is built to accommodate a maximum misalignment of the flange of +/- 6°, ensuring resilience and adaptability in practical usage. Key Features and Benefits: High Durability: Constructed with premium materials, the gearbox offers excellent resistance to wear and tear, ensuring a long service life. Optimized Performance: Its precise gear ratio and torque output provide reliable performance for heavy-duty concrete mixing operations. Versatile Design: Compatible with a wide range of mixer truck models, the 7.1R130 gearbox is suitable for both small and large-scale construction needs. Ease of Maintenance: The lightweight design and standard oil requirement make servicing and maintenance straightforward, reducing downtime. Applications: The 7.1R130 gearbox is ideal for use in concrete mixer trucks, particularly in construction and infrastructure projects where consistent and high-quality concrete mixing is essential. Its advanced design and technical capabilities make it a preferred choice for operators seeking reliable performance and cost-effective solutions.
Note: This gearbox is specifically compatible with PMP concrete mixer systems and is designed to meet or exceed industry standards for durability, efficiency, and reliability.

Model NO.	7.1R130	Model	7.1R130
Lead Time	5 Days	Transport Package	Standard Export Wooden Case
Colour	as Your Request	Usage	Concrete Mixer
Weight	330KG	Specification	56*56*68
Trademark	Bodeke	Origin	China
HS Code	8483402000	Production Capacity	100 Sets/Month

Technical data of Camray CMR conrete mixer gearbox
Model	7.1R130
Max.Output Torque Nm	71,000
Ratio l=	1:130
Max.installation angle of Drum	11°
Max.Input speed rpm	2500
Max.Output speed rpm	18
Max.Capacity of Drum m³	10~14
Weight(without oil) KG	320
Lubrication Oil Quantity dm³	11.5
Max.Misalignmeng of flange	+/-6°

FAQs about Mixer Truck Speed Reducer
Q1: What is a mixer truck speed reducer?
A1: A mixer truck speed reducer is a mechanical device that reduces the speed of the mixer truck's motor, increasing torque and allowing for more effective mixing. It helps to transfer power from the motor to the mixer drum more efficiently, ensuring smooth and consistent mixing.
Q2: Why is a speed reducer necessary for mixer trucks?
A2: A speed reducer is necessary for mixer trucks because it matches the speed and torque requirements of the mixer drum to the output of the truck's motor. By reducing the speed, the reducer amplifies the torque, allowing the mixer drum to rotate at the optimal speed for mixing, while minimizing wear and tear on the motor.
Q3: How does a mixer truck speed reducer work?
A3: A mixer truck speed reducer typically consists of a series of gears or other mechanical components that transfer power from the motor to the mixer drum at a reduced speed. These gears are designed to mesh together, reducing the speed of rotation while increasing torque. This allows the mixer drum to rotate at a slower, more controlled speed, ensuring effective mixing.
Q4: What are the benefits of using a mixer truck speed reducer?
A4: Using a mixer truck speed reducer provides several benefits. It increases the torque output of the motor, allowing the mixer drum to rotate more effectively and mix materials more thoroughly. Additionally, it reduces wear and tear on the motor by matching the speed and torque requirements of the mixer drum, extending the motor's lifespan. Furthermore, a speed reducer can improve the overall efficiency of the mixer truck, reducing fuel consumption and operational costs.
Q5: How often should a mixer truck speed reducer be maintained?
A5: The frequency of maintenance for a mixer truck speed reducer depends on the specific model and manufacturer's recommendations. However, generally speaking, it is important to perform regular inspections and lubrication to ensure the reducer is operating smoothly and efficiently. Additionally, if any issues or malfunctions are noticed, it is crucial to address them promptly to prevent further damage or downtime. Regular maintenance can help extend the lifespan of the speed reducer and keep your mixer truck operating at peak performance.
Q6: What are the common issues that can arise with mixer truck speed reducers?
A6: Common issues that can arise with mixer truck speed reducers include wear and tear on gears, bearings, and other mechanical components. This can lead to reduced efficiency, increased noise, and ultimately, failure of the reducer. Lubrication issues, such as insufficient or contaminated lubricant, can also cause problems. Regular maintenance and inspection, as well as prompt repair of any issues, are crucial to preventing these common problems and ensuring the reliable operation of the speed reducer.
Q7.Are you manufacturer? And what's the delivery time?
A7:Yes, we are manufacturer and have our own factory. Generally, its in stock for common models, 25-30 days will be finished and sent to customer in time.
Q8.If we don't find what we want on your website, what should we do?
A8: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q9.How about the inspection and Guarantee of products?
A9:We promise: all products are tested before ship, to confirm it will be working and in good conditions when customers get. Also, we offer 12-month guarantee, if it doesn't work due to quality issue in the period, we will send spares to repair for free.
Bodeke Industrial Components Co., Ltd. is a leading Chinese company specializing in the manufacturing and maintenance of a wide range of industrial equipment components. Our products find application in diverse sectors, including cement tanker trucks, excavators, rescue equipment for cement trucks, mixers, cranes, hydraulic motors, hydraulic pumps, and other industrial machinery.

Empower your industrial machinery with Bodeke - a leading Chinese manufacturer specializing in the repair and production of a wide range of equipment components.From cement tanker trucks and excavators to mixer trucks,cranes,hydraulic motors,and pumps,our precision-engineered products redefine reliability and performance.Elevate your operations with Bodeke's quality components-your trusted partner in global industrial excellence.
