3PT Hitch Disc Harrow

US$2,100.00 3 Pieces (MOQ)

Basic Info.

Model NO.

1BQDX

Application Field

Agriculture

Farming Policy

Dry Cultivating Machinery

Power Source

Tractor

Operation

Soil Preparation Machinery, Movable Operation

Traction Type

Traction

Drive Type

Tractor

Arbor Configuration

Horizontal Axis

Certification

Color

Accordingly

Warranty

12 Months

Transport Package

Accordingly

Specification

16-32 plates

Trademark

sdyuntai

Origin

China

HS Code

84321000

Production Capacity

200 Sets/Year

Product Description

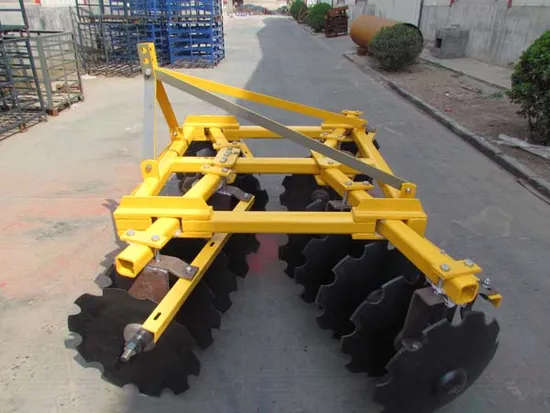

1BQDX-G SERIES HANGING SQUARE TUBE PAIR SETTING LIGHT DUTY DISC HARROW
LIGHT DUTY "X" TYPE DISC HARROW
Standard Features -
--High tensile, heat treated notched discs.
--Easy gang adjustment with locking device.
--Light duty grease bath bearings per gang.
--Adjustable disc scrapers(optional).

Model	1BQDX-1.25G	1BQDX-1.6G		1BQDX-1.95G	1BQD-2.3G
Number of disc	16	20		24	28
Working width(mm)	1250	1600		1950	2300
Working depth(mm)	50-150	50-150		50-150	50-150
Disc spacing(mm)	175	175		175	175
Dia. of disc	18"	18"	20"	20"	20"
Weight(kg)	390	450	470	520	540
Tractor power(hp)	30-40	40-50	50-60	60-75	60-75
