Basic Info.
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Chemical
Main Material
Stainless Steel
Mixer Type
Planetary Mixer
Operating Type
Continuous Operating
Transport Package
Customizable
Production Capacity
5000picecs/Year
Packaging & Delivery
Package Size
15.00cm * 22.00cm * 20.00cm
Package Gross Weight
300.000kg
Product Description
Detailed Photos

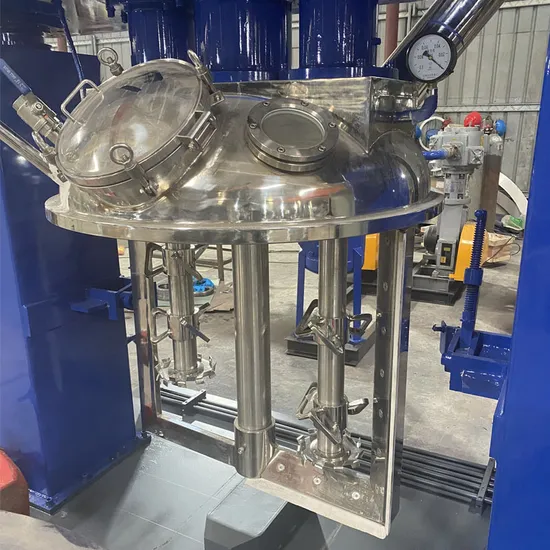

Product Description JCT power mixer
APPLICATIONS:
Power Mixer is fully integrated with the characteristics of a Planetary Mixer and Strong DispersingMachine, combining the advantages Of both devices more effectively to improve the mixing effect and efficiency.
APPLIED: Food & Cream & Chocolate MOST SUITABLE:
1. The industries of chemical, light, food, pharmaceutical, building materials and pesticides.
2, It is ideal for the production of ink, paint, adhesives, sealants, ointment,
paste like material, grease, paint, psate cosmetics, emulsions, cream food and additives.
Installation Instructions
| model | feeding voluma | planetary motor | high-speed motor | Revolution speed | Rotation speed | High speed dispersion speed |
| DLH-6L | 3.6 | 1.5 | 1.5 | 27 | 43 | 0~1000 |
| DLH-20L | 12 | 3 | 3 | 27 | 43 | 0~1000 |
| DLH-60L | 36 | 4 | 4 | 27 | 43 | 0~1000 |
| DLH-100L | 60 | 7.5 | 5.5 | 27 | 43 | 0~1000 |
| DLH-200L | 120 | 15 | 11 | 27 | 43 | 0~1000 |
| DLH-350L | 210 | 18.5 | 18.5 | 27 | 43 | 0~1000 |
| DLH-600L | 360 | 22 | 22 | 27 | 43 | 0~1000 |
| DLH-1000L | 600 | 37 | 30 | 23 | 43 | 0~1000 |
| DLH-1500L | 900 | 45 | 45 | 23 | 43 | 0~1000 |
| DLH-2000L | 1200 | 55 | 45 | 23 | 43 | 0~1000 |
Applies for:
1). Adhesives:DOW Corning sealant, Silicone sealant, sealant base;
2). Rubber:Silicone Rubber, RTV rubber, etc;
3). Ink, dye, paint, coating, filling plastic ointment, Paste, grease, Li-ion battery;
4). power mixer suit for all the liquid-solid, solvent, polymerization or mixing industry.Fit for the viscosity from 10,000 CP to 1,000,000 CP.
