Welcome to visit

Plastic PVC Powder Pulverizer High Output

US$5,000.00-12,000.00 1 Set (MOQ)

Basic Info.

Model NO.
xtss1000
Installing
Engineers Overseas Installation
Name
Plastic Miller
Disc Type
Disc Pulverizer
Material for Blade
D2
Type
Impact Crusher
Object
Plastic
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Extruding and Milling
Principle
Roller Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Combination Tongs
After-sales Service
12 Months
Warranty
12 Months
Transport Package
Film Package or Woodcase Package
Specification
3000*2500*6000MM
Trademark
XINTING
Origin
China Zhangjiagang City
HS Code
8474209000
Production Capacity
Max Capacity 800kg/Hr

Packaging & Delivery

Package Size
300.00cm * 400.00cm * 400.00cm
Package Gross Weight
2800.000kg

Product Description

Plastic PVC Powder Pulverizer High Output
Description pvc pp pe eva plastic milling machine for recycling:
This PVC Plastic PE mill is chiefly designed to grind PVC and PE. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our pulverizer can reach 100-900kg/h (15-100mesh).

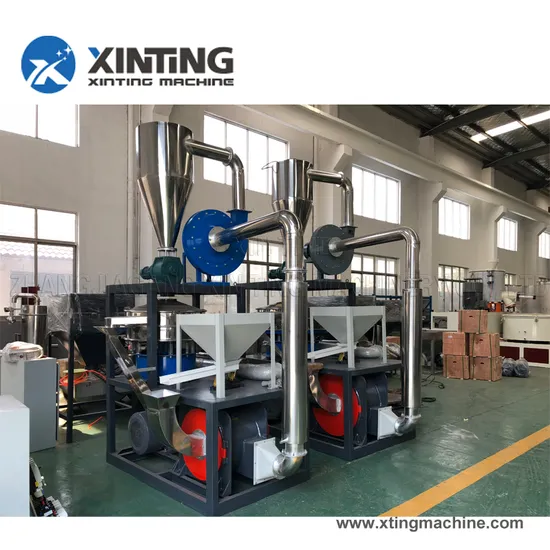

The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Parameters for miller machine
Model XT-500 XT-600 XT-800
Disc Diameter 500mm 600mm 800mm
Speed 3700RPM 3500RPM 3200RPM
Main Motor 37KW 55KW 75KW
Capacity 150-280kg/h 200-550kg/h 450-850kg/h
Powder Size 15-120mesh 15-120mesh 15-120mesh
