US$25,000.00-30,000.00
|
1 Set
(MOQ)
|
Basic Info.
Sealing & Cutting
Heat-Sealing Heat-Cutting
Machine Type
Sealing Machine
Computerized
Computerized
Type
Plastic Bag Making Machine
Dimension(mm)
6200*1800*1800mm
Length of Bag Making
100-1200mm
Width of Bag Making
60-300mm
Thickness of Bag Making
0.005-0.015mm
Bag Making Methods
Star Sealing Garbage Bag
Control System of Machine
PLC
Transport Package
Nude Packing
Production Capacity
50sets/Year
Packaging & Delivery
Package Size
620.00cm * 180.00cm * 180.00cm
Package Gross Weight
1500.000kg
Product Description

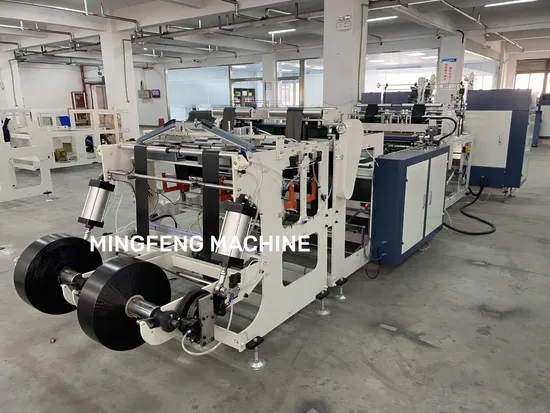

120m/min Speed Full Automatic Double Lines Coreless Roll Garbage Bag Making Machine
This bag making machine is suitable for drum-linkage garbage bag making, Point cutting after folded, automatic coreless replacement .according to set number of each volume, auto off, automatic take up, without hand operation for the bag plant to improve efficiency, and it is a good choice for reduce the labor demand.
Main Technical Parameter:
| Model of machine | MFG-400*2 |
| Speed of bag making | 30-190 bags/min each lines |
| Max speed of film | 120m/min |
| Length of bag making | 100-1200mm |
| Width of bag making | 60-300mm |
| Thickness of bag making | 0.005-0.015mm |
| Bag making methods | star sealing garbage bag |
| Control system of machine | PLC |
| Material feeding | 4pcs of 370w AC motor with inverter control |
| Bag length control | 2pcs of 2kw servo motor |
| Temperature control zones | solid relay heating |
| Temperature control precision | ±2 °C |
| Heating power | 2kw |
| Traction part | 2pcs of 370w AC motor with inverter control |
| Power of winding motor | 2pcs of 370w AC motor with inverter control |
| Turntable control | Reducer motor control |
| HMI | Touch screen control |
| Total power of machine | 12kw |
| Dimension of machine | 6200*1800*1800mm |
Machine Details
Our Workshop
Packaging & Shipping
Certifications
After Sales Service
100% Good Machine Quality
One year Guaranty Time
24 hours On Line Service
Overseas Technician Available
Cotact Girl:Ms.Amy
If you have any questions, please feel free to ask me FAQ
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
>>
