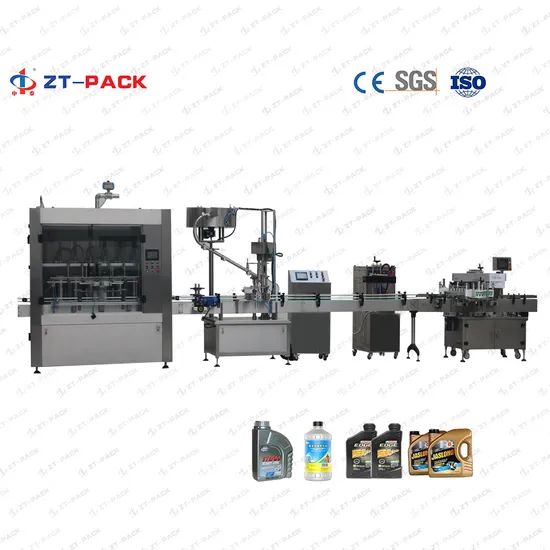

Automatic Liquid Filling Machine for Lubricant/Engine/Motor Car Oil with Bottling Production/Packing/Filler/Capper/Labeller/Carton Packaging

Product Description

Automatic Liquid Filling Machine for Lubricant/Engine/Motor Car Oil with Bottling Production/Packing/Filler/Capper/Labeller/Carton Packaging Line 1: Suitable for fill : Lubricant Oil / Car Oil / Motor Oil / coolant liquid / engine oil / Lubricanting Oil kinds Products
2 : System Can be Choosen :
Piston / Flow Meter / Net weight
3: Filling Range :
50ml -1000ml 1L -5L 4L -20L 200L-1000L
4: Capacity Speed : 1000-6000BPH can be choosen 5: Speed can be choosen : from 1000BPH-6000BPH (basic on 1L ) contact us for more details
Ideal For Lubricant Oil Filling:
Liquid filling machine, liquid filler, liquid bottling machine, oil filling machine, oil fillerThis line is suitable for 0.5-7L lubricating oil
(Antifreeze, lubricating oil, brake oil, grease, etc.);
Automatic packaging of Oil liquids.
This series of filling machines use the flow meter / Piston / Net Weight types can be choosen according to different capacity speed required filling principle and a number of patent certifications, which are suitable for lube oil,engine oil, lubricant oil,motor oil, break oil, compressor oil, shock absorber oil, car oil filling.
The equipment adopts high-precision rotary encoder measurement to ensure the filling accuracy of 1 ‰. While ensuring the filling accuracy, the filling speed is increased by 20% -35%. The operation is simple, the maintenance is convenient, save labor cost, higher production efficiency.
Automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.Feature:1. Linear Design, when change bottle sizes no need change parts , easily for changing2. PLC conntrol Full-automatic working3. Adopts high precision and high speed ration filling valve make sure the oil level is exact without loss, ensuring high quality filling perfectly.4. Filling volume adjustable, no bottle no filling5. Flexible choice, suitable to 0.5 liter to 7 liter PET bottle with various shape, press caps or screw caps capping6.316L Stainless Steel Contact parts, fine Polish, Food Grade, easy clean
This is our newly developed filling machine . It has reached the international advanced level ,partial has exceeded the similar product . It is abroad , also certified by the world famous chemical magnate . This is a inline piston filling machine for cream and liquid ..It adopts PLC and touch screen control panel for control material . It is characterized by accurate measuring ,advanced structure ,stable operating ,low noise ,large adjusting range ,fast filling speed . It is also suitable for the filling of easy volatilization ,easy bubbly liquid strong corrosive liquid for rubber ,plastic,and high viscosity ,liquid ,semi-liquid . Operators adjust and meter figure in the touch screen control panel , also can adjust metering of each filling head . The external surface of this machine is made of excellent stainless steel . Good appearance , applied to GMP standard . Containers and Specifications (100mL-1000mL)

Model	ZSP-6A	ZSP-8A	ZSP-10A	ZSP-12A	ZSP-16A
Dimension	2200mm(L)x1100mm(W)x2200mm(H)		2300mm(L)x1100mm(W)x2200mm(H)		2400mm(L)x1100mm(W)x2200mm(H)
Filling head	6	8	10	12	16
Capacity(1L)	1800B/H	2400 B/H	3000 B/H	3600 B/H	4800 B/H
Power	1.1KW	1.5KW	1.5KW	2.2KW	2.5KW
Suitable bottle	Diameter:Φ40mm--Φ100mm Height:80mm--280mm
Neck diameter	Φ18mm
Filling range	50ml--1000ml
Air pressure	0.6Mpa--0.8Mpa
Power supply	380V ;50HZ

Containers and Specifications (1L-5L)

Model	ZSP-6A	ZSP-8A
Dimension	2200mm(L)x1100mm(W)x2200mm(H)	2400mm(L)x1100mm(W)x2200mm(H)
Filling head	6	8
Capacity(1L)	1800B/H	2200 B/H
Capacity(5L)	700B/H	900 B/H
Power	3KW	4KW
Suitable bottle	round bottle: height:100-320mm diameter:Φ60-140mm, flat bottle: length:100-200mm width:40-80mm height:150-300mm neck diameter:≤Φ30mm,≥Φ30customize
Filling range	1000ml--5000ml
Air pressure	0.6Mpa--0.8Mpa
Power supply	380V ;50HZ

Suitable to Fill :

Details pictures : Packing Line :

About ZT-PACK : Zhongtai Packing Machinery Company develops high quality packaging and botting pro-duction lines. From flling to capping to labeling to storing in cartons for shipping, ZT-Pack supplies you with everything you need to get your product into the hands of customers.
Our production lines are used for packaging seasonings, sauces, condiments, syrups, and other foods;
cosmetic and beauty care products such as lotions, creams, and shampoos; pesticides and other agrochemicals; and oils and gases.
We help customers from over 30 countries around the world to package their products.
Since our beginnings, we've designed our packaging and bottling equipment to meet the needs of our customers. Our filling machines, capping machines, labeling machines, and carton sealing machines can fll bottles and pouches of vanying specifications with high and low viscous liquid and powdered or granular material. We've passed ISO9001:2008 quality management system certification and CE certification, and we're one of the top ten bottle flling machine suppliers in China. Many of our products have received invention and utility model patents.
Factory with 13,000 m2
Technology Team more than 10 persons
Service Team more than 10 persons more than 80 staffs
Our growing company has the advantages of large modern manufacturing facilities and a talented team of 20 senior technical staff.
We research and develop new products using pneumatic control and photo electric transduction that increase our products' speed, precision, and life span.
At ZT-Pack, we value collaboration and innovation, working together and with our customers to devel-op better packaging solutions that keep products fresh and hold up in transit. With quality management and production processes, our packaging machines meet industry standards and satisfy those who use them. Whatever your product, we can package it.
Contact ZT-Pack today.
Focus on the bottle production packing machines the full automatic line
Mixer tanks --bottle unscramble -- filling machine --capping machine --labeling machine --carton packing machine -palletilizer
Do for the Bottle /gallons Drum Filling machine production packing line
for agrochemicals , oil , food , lubricant oil ,Home care Cleaning, house holding products , personal care products ; Painting packing
for bottles sizes : 50ml -1000ml; 1L-5L; 5L -30L;220L; 1ton

---
