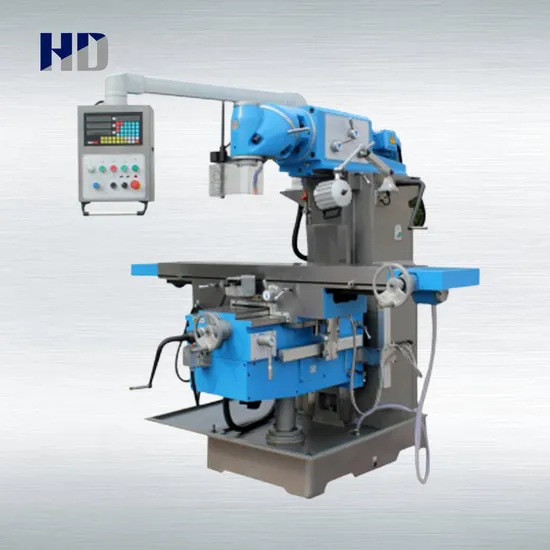

XL6230A Performance Universal Vertical Metal Milling Machine

Product Description

Product Picture
Specification Parameter

Item	Unit	XL6230	XL6230A	XL6230C
Table size	mm	1270*300	1370*300	1370*300
X/Y/Z travel	mm	720*280*400	820*300*400	1000*360*400
Max.worktable loading	kg	300	300	300
T-slots(NO./width/pitch)	mm	3*14*80	3*14*80	3*14*80
Spindle speed series and range	rpm	V 45-1660(11steps)
Distance between spindle nose and table surface	mm	100-500	100-500	100-500
Table rapid speed(X/Y/Z)	mm	1335/1335/1000	1335/1335/1000	1335/1335/1000
Dimension	mm	1730*1760*1700	1830*1760*1700	1830*1760*1700
Machine weight	kg	1550	1600	1700

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
