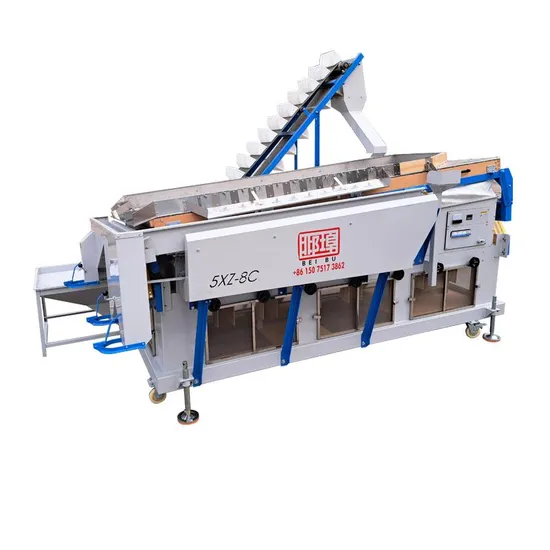

Beibu Grain and Beans Cleaner Gravity Separator for Separating Good and Bad

Product Description

Grain Cleaner Good Cleaning Result Gravity Separator
Product Description

•Blowing type Gravity Separator will separate the moldy,blighted,and insected grain from the good grain.
•The raw material will deliver to the gravity separator by elevator,then the material will evenly scattered on the gravity separator table,with the fan motor under the table blow up the wind and the vibration of machine,and the different angle of the gravity table,the moldy,blighted, and insected grain will go to the down side and the good grain will go to the higher side and getting out, the middle part will be the mixed area,the mixed part will go to the slope elevator for the recycling.
•The Gravity Separator can work for different grain like sesame,soybean,sunflower seeds,pepper seeds,pumpkin seeds,water melon seeds,and for soybean the capacity is about 3-4t/h, for sunflower seeds which is about 2.5t/h.
Machine Structure

Product Parameters

Model	5XZ-8	5XZ-10
Gravity Table Size	1380*3150mm	1500*3900mm
Power(kw)	13.2KW	15KW
Capacity(t/h)	5t/h based on beans	10t/h based on beans
Weight(kg)	1600	2000
Overall Size L×W×H(mm)	3870mmx1720mmx1700mm	4300×1960×2500
Voltage	380V,50HZ,three phase	380V,50HZ,three phase

Cleaning Result
Machine Loading Picture
Client Cases
Installation Warehouse

---
