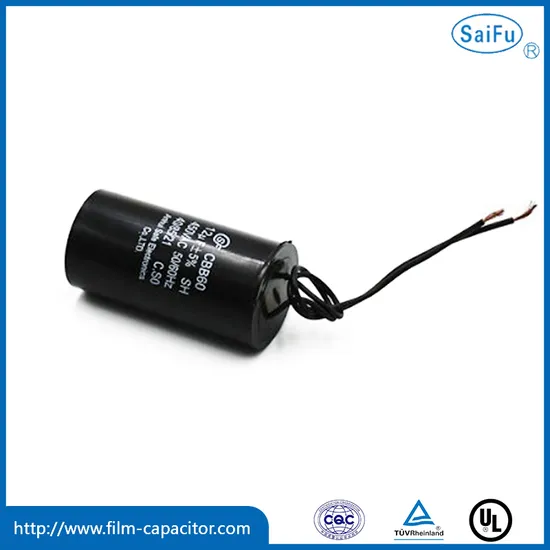

Wholesale AC Motor Run Capacitors for Generator Pump Motor (CBB60) /Motor Run/AC Motor Run/Strat /Pump/Washing Mechine/Water Pump/Running

US$0.75-10.00 50 Pieces (MOQ)

Basic Info.

Model NO.

AC Motor Capacitors

Packaging Type

Surface Mount

Structure

Fixed Capacitor

Manufacturing Material

Polypropylene

Electrolyte

Electrolytic

Usage

Low Frequency Coupling, High Frequency Coupling, Tuning, Filter

Reference Standards

GB/T3667.1(IEC60252-1)

Class of Operation

Classb Class C

Delivery Date

7-15 Days

Test Voltage Termial to Terminal

2 Un for 2 Seconds

Shape

Oval; Square;Column

Shell

Aluminum; Plastic Case;

Terminal

Tabs, Brass Wires,

Rated Voltage

250VAC; 370VAC.400VAC,450VAC,500VAC

Climatic Category

40/70/21. 40/85/21

Test Voltage Terminal to Case

2un+1000VAC

Insulation Resistance

More Than 3000s(100Hz, 20degree)

Certificate

CQC;TUV,UL

Manufacturer

Anhui Safe Electronics Co. , Ltd.

Operating Frequency

50/60Hz

1 Carton Package

50PCS/CTN; 200PCS/CTN

Transport Package

Standard Export Packing

Specification

Motor capacitor

Trademark

Saifu/CSF

Origin

China

HS Code

8532259000

Production Capacity

1000000/Month

Product Description

AC Motor Capacitor
Features
1. Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power
2. Self-healing property
3. Good stability and reliability
Applications
1.CBB65 capacitor applied to Air Conditioner,Refrigerator,Compressors,AC Motor,General Purpose,Lighting,
etc;Safer with Explosion-proofed design; Round capacitor, can be provided oval capacitor; Single capacitor, can be provided double capacitor 2. CBB61 capacitor applied to Air Condition Blower,Ventilator,Ceiling Fan,Electric Fan and etc.
3. CBB60 capacitor applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.
Specifications

Reference standards	GB/T 3667.1( IEC60252-1)
Climatic category	40 / 70 / 21,40 / 85 / 21
Class of operation	Class B (10000h) Class C (3000h)
Class of safety protection	S2(CBB65),S0/S3(CBB61,CBB60)
Voltage range	250VAC,370VAC,440VAC,450VAC
Capacitance range	1~100μF
Capacitance tolerance	± 5% , ± 10%,± 15%
Dissipation factor	20 x10-4 (100Hz,20°C)
Test voltage terminal to terminal UTT	2Un for 2 seconds
Test voltage terminal to case UTC	(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds
Insulation Resistance	≥3000s (100Hz,20°C,1min)

Dimensions(mm)

Type	Specifications	Routine		With screws or pins
CBB60		450VAC	250VAC	450VAC	250VAC
	CBB60 450VAC/250VAC-1μF	φ26*52	φ26*52	φ30*52	φ30*52
	CBB60 450VAC/250VAC-2μF	φ26*52	φ26*52	φ30*52	φ30*52
	CBB60 450VAC/250VAC-2.5μF	φ26*52	φ26*52	φ30*52	φ30*52
	CBB60 450VAC/250VAC-3μF	φ26*52	φ26*52	φ30*52	φ30*52
	CBB60 450VAC/250VAC-3.5μF	φ26*52	φ26*52	φ30*59	φ30*52
	CBB60 450VAC/250VAC-4μF	φ28.5*55	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-4.5μF	φ28.5*55	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-5μF	φ28.5*55	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-5.5μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-6μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-6.5μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-7μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-8μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-9μF	φ34*62	φ26*52	φ35*62	φ30*52
	CBB60 450VAC/250VAC-10μF	φ34*62	φ26*52	φ35*72	φ30*52
	CBB60 450VAC/250VAC-12μF	φ37*73	φ26*52	φ35*72	φ30*61
	CBB60 450VAC/250VAC-14μF	φ37*73	φ34*62	φ40*72	φ30*61
	CBB60 450VAC/250VAC-15μF	φ37*73	φ34*62	φ40*72	φ30*61
	CBB60 450VAC/250VAC-16μF	φ37*73	φ34*62	φ40*72	φ30*61
	CBB60 450VAC/250VAC-18μF	φ37*73	φ34*62	φ40*72	φ35*67
	CBB60 450VAC/250VAC-20μF	φ40*72	φ34*62	φ40*72	φ35*67
	CBB60 450VAC/250VAC-25μF	φ42*80	φ42*62	φ40*72	φ35*67
	CBB60 450VAC/250VAC-30μF	φ42*90	φ40*72	φ45*95	φ40*72
	CBB60 450VAC/250VAC-35μF	φ45*90	φ40*72	φ45*95	φ40*72
	CBB60 450VAC/250VAC-40μF	φ50*100	φ42*90	φ50*110	φ40*97
	CBB60 450VAC/250VAC-45μF	φ50*100	φ42*90	φ50*110	φ40*97
	CBB60 450VAC/250VAC-50μF	φ50*100	φ42*90	φ50*120	φ40*97
	CBB60 450VAC/250VAC-60μF	φ50*115	φ42*90	φ50*120	φ40*97
