3040*10 Multi-Functional Mechanical Radial Drilling Machine with High Performance and High Quality

Product Description

Product Description

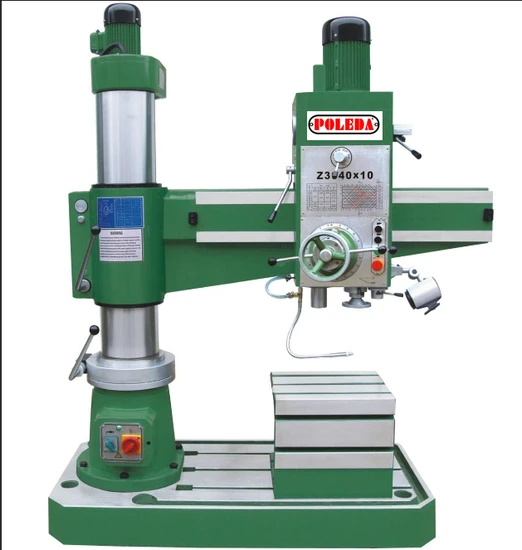

Rocker Arm Drill Product Introduction
The Radial Drilling Machine represents a pinnacle in hole processing equipment. It expertly handles drilling, reaming, tapping, face trimming, and more. This versatile machine is indispensable for both single and mass production settings, particularly when dealing with large parts requiring multiple holes. Its significance in general machining workshops cannot be overstated. Key features of this remarkable machine include:
Structural Features: The ingenious design of the rocker arm allows it to rotate and elevate around the column, while the spindle box glides horizontally along the arm. This engineering marvel ensures effortless operation, exceptional flexibility, and an impressively broad range of applications, particularly for large, heavy workpieces.
Classification: Radial drilling machines can be categorized by the clamping structure into hydraulic and mechanical types. Beyond this, depending on specific drilling sizes and mechanical principles, the rocker arm drill further diversifies into various models and specifications, catering to diverse processing requirements.
Technical Parameters: These critical specifications include maximum drilling diameter, distances between the main shaft and the column as well as the working table, and the spindle's rotational speed. Together, these parameters define the machine's machining capability and operational efficiency.
Safety Performance: Engineered with meticulous safety measures, the radial drilling machine incorporates a spindle cutting overload protection device, spindle travel limit switch, and lifting screw safety nut, all designed to ensure optimal safe operation.
Application: This versatile machine finds wide application across numerous machining sectors. It adeptly fulfills a variety of processing needs such as drilling, reaming, countersinking, tapping, and boring, making it an essential asset in machining and production environments.
Operation and Maintenance: The radial drilling machine supports both manual and numerical control operation modes. It offers mechanical and hydraulic transmission options, making proper operation and maintenance vital to sustain performance and prolong its service life.
In Summary: The radial drilling machine is a multifunctional, efficient, and safe tool for hole processing. It excels in processing a wide array of metal parts and stands as a vital piece of equipment in any modern machining workshop.
Product Parameters
Rocker Arm Drill Product Performance
Our Radial Drilling Machine is a next-generation multifunctional marvel. It boasts outstanding performance, safety, reliability, and ease of maintenance, coupled with high precision and rigidity. Utilizing hydraulic primary variable speed mechanisms, it reduces auxiliary time and allows seamless spindle control. The spindle box, rocker arm, and columns feature a hydraulically driven diamond block clamping mechanism for secure clamping. With quenched guide rails, spindle, and rotation raceways, it maintains accuracy and significantly extends the machine's life span. Additionally, comprehensive safety protection devices ensure secure operation.
Classified by its clamping structure, the radial drilling machine divides into hydraulic and mechanical types. The hydraulic variant is particularly convenient and agile, ideal for single or mass production of large, porous parts, making it a staple in general machining workshops.

Product Name	Radial drill	Radial drill	Radial drill
Product model	3040*13/16	3032	Z3050*13/16
Maximum diameter of hole	casting40/Steel part35mm	casting32/Steel part27mm	casting50/Steel part45mm
Distance from spindle end face to table	430-1210mm	360-1050mm	360-1300mm
Distance from spindle center to column busbar	300-1100mm	260-1050mm	260-1050mm
Spindle travel	220mm	120mm	220mm
Main shaft hole cone	4Mohs	4Mohs	4Mohs
Spindle speed range	34.78.145..75130.560.260.430.920.380.760.1280rpm		34.78.145..75130.560.260.430.920.380.760.1280rpm
Spindle speed class speed	12	6	12
Spindle feed range	0.10-0.25rpm	0.10-0.25rpm	0.10-0.25rpm
Spindle feed series	3	3	3
Swing arm rotation Angle	Plus or minus 180 degrees	Plus or minus 180 degrees	Plus or minus 180 degrees
motor power	2.2kw	1.5kw	4kw
Machine weight	1400kg	9600kg	2400kg
Overall dimension	1500*705*2020mm	1350*705*1880mm	1950*810*2450mm

Detailed Photos
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.

---
