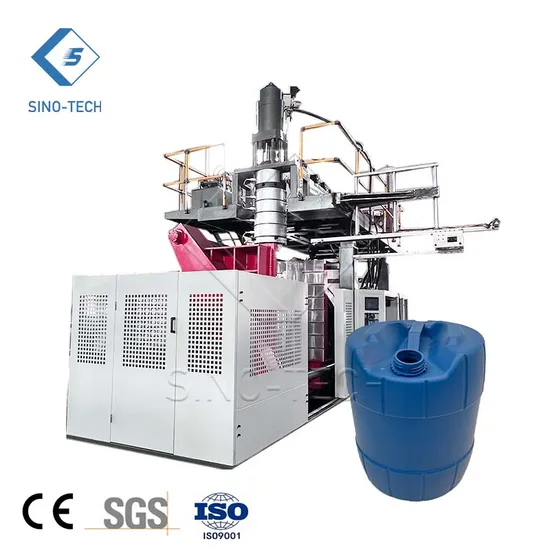

HDPE Plastic Pallet Water Tank Blowing Moulding Machinery/Blow Molding Machine

Product Description

Product Description
Advantages:
1. The temperature controlled by seimens PLC, the extruder stops automatically if the temperature is down because of heater or thermocouples damaged.
2. There is die head pressure testing in the diehead. The PLC shots down the extruders if the pressure inside the die head is too high.
3. The extruders have covers for keeping the temperature, so can make the heating time short
4. The temperature are controled by seimens brand.
5. The extrusion motor is seimens brand.
6. The inverter is seimens brand.
7. More protection in control system.
Detailed Photos
Product Parameters

Technical Specification
Specifications		1000L	2000L
Max.Container Capacity	L	1000	2000
Machine Weight	T	38	48
Machine Dimension(L*W*H)	M	7*7.5*5.5	8*8*6.5
Total Power	Kw	287	336
Average Power Consumption	Kw	186	218
Die Head
Accumulator Volume	KG	35	60
Number of Heating Zone	Zone	11	11
Power of Die Heating	Kw	88	100
Max. Die-pin Diameter	mm	450	600
Extruder Unit
Screw Diameter	mm	100/110/100	110/120/110
Screw L/D Ratio	L/D	25/1	25/1
Number of Heating Zone	Zone	13	13
Heating power	Kw	65	65
Max. Melting Capacity	KG/Hr.	370	470
Extruder Motor Power	Kw	30/30/37	37/37/45
Clamping Unit
Max.Mold Size(W*H)	mm	1200*1500	1500*2000
Distance Between Platen	mm	800~2400	1000~3000
Platen Size(W*H)	mm	1500*1500	1800*2000
Clamping Force	KN	800	1200
Hydraulic System
Main Oil Pump Power	Kw	30	45
Servo Oil Pump Power	Kw	7.5	7.5
Thickness Control System	Point	100	100

Application

Company Profile
FAQ
Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
