5 Axis Vertical Machining Center Vmc650 CNC Milling Machine Manufacturer

Product Description

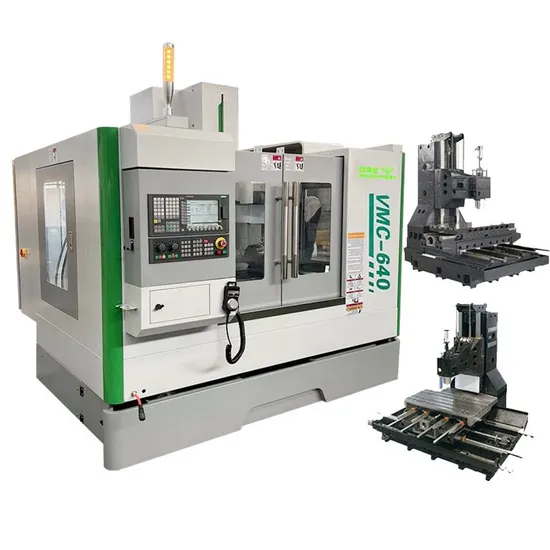

5 axis CNC Small Vertical Machining Center Vmc650 VMC 650 Cnc Mini Metal Milling Machine
Vertical CNC Milling Machine Center
Tool System: Automatic toolchanger is composed of tool magazine and tool changing arms. Automatic toolchanger is installed separately from machine tool with the purpose of preventing adverse influences of vibration during running of automatic toolchanger and other reasons on precision. Tool selection adopts the method of fixe address in the shortest path All tools retum to origine position, therefore, the problem of collsion between large-size tools is only considered in initial installation Two-way tool magazine adopts the shortest path.
Hardware configuration: Axis of control: x, Y, Z of the three coordinate axis and a spindle. Number of axis: X, Y, Z three axis linkage. Operation panel:full function cnc keyboard. The man-machine communication interface standard configuration: PCU50. Input and output module: separation type through the IM361 interface module expansion of the 57-300 input and output module.
Strong spindle, ensure perfect processing: The gear type spindle variable speed device provides powerful torque during operation at low speed and guarantees stable rotation during operating at high speed so as to enable wider machining range. By enlarging thickness and diameter of spindle ends and flanges, the spindle with roller bearing not only strengthens all factors related to spindle system, but also improves cutting perormance via clamping force of powerful tools.
Win in power: Optional spindle: BT40:10000rmin Belt-drive 12000,15000/min Direct-drive BT50:6000r/min Belt-drive Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping,boring ,etc.

Model	VMC650 (GSK25i system)	VMC640 (GSK25i system)
Travel parameters of 3 axis
X axis travel	650mm	600mm
Y axis travel	450mm	400mm
Z axis travel	500mm	450mm
X/Y/Z Motor Torque	11/11/15N.m	8/8/15N.m
Spindle face to table distance	120-620mm	80-530mm
Distance between spindle center and column guide surface	500mm	350mm
Worktable parameters
Worktable size	900×400mm	800×320mm
Maximum load bearing of worktable	400kg	400kg
T Shot	3×18×110mm	3×16×110mm
Feeding parameters
X/Y/Z axis rapid movement rate	20/20/18 m/min	24/24/16 m/min
Feed moving velocity X, Y, Z	1-10m/min	1-10m/min
Spindle parameters
Main shaft connection	Belt	Belt
Spindle taper	BT40-120	BT40-120
Range of spindle speed	8000rpm(Optional:10000 )	8000rpm(Optional:10000 )
Spindle motor power	5.5KW (Optional:7.5KW )	3.7KW (Optional:5.5KW )
ATC paremeters
ATC capacity	16qty	12qty
Maximum tool size	Φ80mm(tool from a distance)	Φ92mm(tool from a distance)
Maximum tool weight	7kg	5kg
Precision
PositionaI accuracy(JIS standard)	±0.008/300mm	≤0.02mm
Repeated positioning accuracy(JIS standard)	±0.005mm	±0.008/300mm
Shape and weight		±0.005mm
Machine size	2300×2200×2400mm	2600×1950×2400mm
Weight	3800kg	3000kg

---
