| US$50.00-65.00 | 2 Pieces (MOQ) |

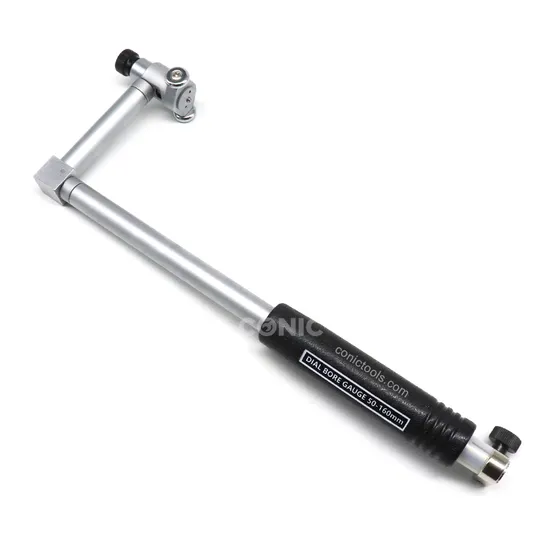

| New products eco friendly custom Dial bore gauge Aluminium alloy bore dial indicator | |
| Model Number | CTYF356-160 |
| Material | Steel |
| Range | 35-50mm/50-160mm/160-250mm/250-450mm |
| Resolution | 0.01 |
| Accuracy | 18μm |
| L | 150mm |
| Packing | Wooden box |
| Item No. | Specification (mm) | Accuracy (mm) | Dimensions(mm) | Replaceable probe | Washer | extension bar | |
| L | L1 | ||||||
| CTYF356-50 | Φ35-50mm | 18μm | 150 | 76.2 | 4 | 4 | |
| CTYF356-160 | Φ50-160mm | 18μm | 150 | 76.2 | 12 | 4 | 1 |
| CTYF356-250 | Φ160-250mm | 18μm | 250 | 100 | 5 | 5 | 1 |
| CTYF356-450 | Φ250-450mm | 18μm | 250 | 100 | 5 | 5 | 2 |
