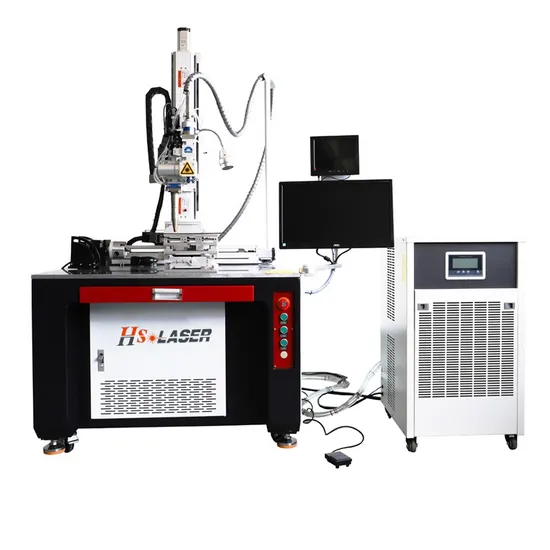

4kw 5kw 6kw Automatic Fiber Laser Welding Machine Metal Stainless Steel Aluminum

Product Description

Fiber laser welding system and advantage Welding with fiber lasers from HS LASER delivers superior advantages as compared with conventional joining methods. Laser welding is a non-contact process with no equipment wear or consumable usage and delivers very little heat input resulting in minimal heat affected zones and part distortion. Laser welding is the most reliable solution for high-speed, high-quality joining across a wide range of material combinations and thicknesses in nearly every industry. HS LASER fiber laser innovations coupled with the expert automated welding solutions from China best brand system are on the forefront of improving the quality, speed and flexibility for welding applications while reducing overall costs.
Wobble weld head advantage Wobble weld head can be adjusted laser beam width, frequency and wobble modes. In addition to the wobble modes, both wobble frequency and amplitude can be adjusted for process optimization.
The wobble welding head has a laser integration function to assist in improving the laser energy conversion rate.
Wobble welding heads are designed to provide the highest laser power handling capability in the industry in a completely sealed and lightweight package.
These process heads provide effortless integration with HS lasers and offers improved weld quality and better visual finish.
Available in multiple configurations with the broadest focus and collimator lens options, the Wobblersare the ultimate tool to weld a multitude of different material types and thicknesses.
Industry Application
Automobile manufacturing industry
Lithium battery industry
Pillow plate head exchanger
Machinery Manufacturing Industry
Furniture industry
Sheet metal processing industry
Electronic communication industrys
Pillow Plates Head Exchanger Pillow Plates Pillow Plates are heat exchanger plates that can be used in many ways for the industrial cooling or heating of your products. As the developer of the laser welding machine for these Pillow Plates, HS LASER Products has an unprecedented amount of experience in manufacturing Pillow Plates. These laser welded plates have endless applications in different industries. HS LASER Pillow Plates are used for vessels, for example for cooling milk, soft drinks, wine or beer. But also various other sectors use our plates. For example, the meat processing industry, the chemical industry and the pharmaceutical industry.
Electric Car Battery Pack Weld System With the rapid development of the global economy, global automakers have invested in electric vehicle manufacturing, including BMW, Mercedes-Benz, Volkswagen, and Audi. Among them, Chinese brand manufacturers include the world's leading electric vehicle brands such as BYD and NIO. , Ideal one and other high-performance pure electric vehicle manufacturing. And has excellent using experinece in China.
Electric vehicles hybrid vehicles including private automobiles, transportation trucks, bikes, motorcycles, scooters and other modes of transportation driven by electrical power, all of which is provided by stored energy in batteries. on the market require lithium battery batteries to be assembled battery pack after install to electric vehichles.
This electrification - which applies across several sectors - is neatly wrapped up in new terminology: e-Mobility or Electro Mobility. According to Gartner, e-Mobility "represents the concept of using electric powertrain technologies, in-vehicle information and communications technologies and connected infrastructures to enable the electric propulsion of vehicles and fleets." A BIG piece of the e-Mobility puzzle is battery and battery pack manufacturing.
The challenges encountered in bringing this technology to market include the demand for reduced weight, expanded range, faster charge times and lower costs. Translated into manufacturing goals, the batteries need to possess higher capacity with negligible energy loss delivering to the drivetrain, higher current carrying capacity for charging, and be made of light-weight, lower cost materials. And since the e-mobility market is so rapidly expanding, there are additional manufacturing challenges, including the demand for higher throughput and quality.
Technical parameters

Technical Parameters
Model number: HS-AW1000 to HS-AW6000	Water cooler capacity: Depend on laser power
Laser power: 1000W 1500W 2000W 3000W 4000W 6000W	Type of water: Distilled water or pure water
Laser type: Fiber laser technology	HD CCD camera: External
Laser wavelength: 1070-1080nm	Weld width range:0.5 to 5mm
Laser source: Raycus / IPG / Max / JPT	Rotary device: 80mm optional
Weld head: WSX / RayTools / Precitec	Type of gas: Argon gas / Nirogen gas
Motorized: Servo motor	Air pressure:3 to 5 bar / 0.3 to 0.5 Mpa
Working area: Standard 600x600mm Accept customizable	Power required: AC 380V±10%/50Hz 3 Ph.
Control system: HS LASER system	Total power: Depend on laser power
X axis:500mm	Warranty period: 24 months
Y axis:300mm	Machine dimension: 145x120x183cm
Z axis:500mm	Net Weight: 590KG
Fiber cable length: Standard 10m Accept costomizable	Package dimension:165x130x203cm

---
