2.60~3.95GHz Waveguide to Coaxial Adapter End-Launch

Product Description

Product Description

Product Name:Waveguide to coaxial adapter Brand Name:EF Connector Type:N Frequency(GHz):2.60~3.95 VSWR(Max):1.25 Certification:RoHS, REACH, ISO9001, ISO14001 Customized:Customized Warranty:1 Year

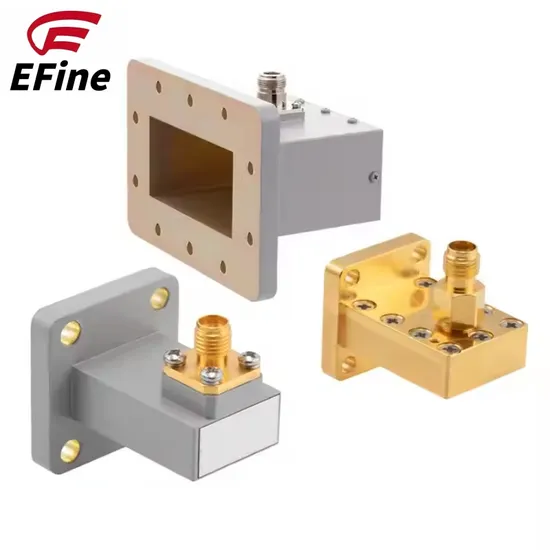

EF Telecom manufactures End-launch Waveguide to coaxia Adapters covering a full frequency range for Rectangular Waveguides with multiple flange and coaxial connector types and configurations available. For more information feel free to call us and discuss your needs with one of our sales engineers. Mechanical Drawing Specification

Model No*	Freq Range (GHz)	VSWR (Max)	Connector Type	Dimensions L*B*A (mm)	WG Type		Flange	Material
					IEC	EIA
EF-22WECAN …	1.72-2.61	1.25	N	128.7*106*161	R22	WR430	FDP/FDM	Al/Cu
EF-22WECAS …	1.72-2.61	1.25	SMA	113.4*106*161	R22	WR430	FDP/FDM	Al/Cu
EF-2W-2AEN …	2.17-3.30	1.25	N	118.7*95*138	R26	WR340	FDP/FDM	Al/Cu
EF-32WECAN …	2.60-3.95	1.25	N	108.7*76*114	R32	WR284	FDP/FDM	Al/Cu
EF-40WECAN …	3.22-4.90	1.25	N	94.7*70*98	R40	WR229	FDP/FDM	Al/Cu
EF-48WECAN …	3.94-5.99	1.25	N	74.7*63*89	R48	WR187	FDP/FDM	Al/Cu
EF-48WECAS …	3.94-5.99	1.25	SMA	78.4*63*89	R48	WR187	FDP/FDM	Al/Cu
F-58WECAN …	4.64-7.05	1.25	N	72.4*62*81	R58	WR159	FDP/FDM	Al/Cu
EF-70WECAN …	5.38-8.17	1.25	N	68.8*49*68	R70	WR137	FDP/FDM	Al/Cu
EF-84WECAN …	6.57-9.99	1.25	N	58.8*48*48	R84	WR112	FBP/FBM/FBE	Al/Cu
EF-84WECAS …	6.57-9.99	1.25	SMA	49.5*48*48	R84	WR112	FBP/FBM/FBE	Al/Cu
EF-100WECAN … …	8.20-12.40	1.25	N	49.3*41*41	R100	WR90	FBP/FBM/FBE	Al/Cu
EF-100WECAS …	8.20-12.40	1.25	SMA	40*41*41	R100	WR90	FBP/FBM/FBE	Al/Cu
EF-120WECAN …	9.84-15.0	1.25	N	46.3*38*38	R120	WR75	FBP/FBM/FBE	Al/Cu
EF-120WECAS …	9.84-15.0	1.25	SMA	37*38*38	R120	WR75	FBP/FBM/FBE	Al/Cu
EF-140WECAN …	11.9-18.0	1.25	N	43.3*33*33	R140	WR62	FBP/FBM/FBE	Al/Cu
EF-140WECAS …	11.9-18.0	1.25	SMA	34*33*33	R140	WR62	FBP/FBM/FBE	Al/Cu
EF-220WECAS …	17.6-26.7	1.50	SMA	26.5*22*22	R220	WR42	FBP/FBM/FBE	Al/Cu
EF-220WECAK…	17.6-26.7	1.50	K2.92mm	27.8*22*22	R220	WR42	FBP/FBM/FBE	Al/Cu
EF-260WECAS …	21.7-33.0	1.50	SMA	26.1*21*21	R260	WR34	FBP/FBM/FBE	Al/Cu
EF-260WECAK…	21.7-33.0	1.50	K2.92mm	29*21*21	R260	WR34	FBP/FBM/FBE	Al/Cu
EF-320WECAS …	26.3-40.0	1.50	SMA	25.9*19*19	R320	WR28	FBP/FBM/FBE	Al/Cu
EF-320WECAK…	26.3-40.0	1.50	K2.92mm	28.9*19*19	R320	WR28	FBP/FBM/FBE	Al/Cu

Mechanical Specifications
Waveguide type	Rectangular Waveguide WR42
Flange type	FBP220
Basis-material	Copper
Finish	Inside: Silver Plating, Outside: Corrosion protected with black paint
Connector	K-2.92 Female
Temperature range	-40°C ~ +70°C
Electrical Specifications
Frequency Range	17.6-26.7GHz
Max. VSWR	1.25:1
Insertion Loss (Max.)	0.3dB

Certifications
Packaging & Shipping
To better ensure the safety of your goods.professional,environmentally friendly,convenient and efficient packaging services will be provided Company Profile
Xi'an EFine Telecom Technology Pte.,Ltd (WinFine Telecom hereinafter) is a leading microwave waveguide components,assemblies and antenna systems manufacturer in China. Established in 2011, WinFine Telecom is continually growing to meet customer's needs.
Our highly trained design engineers and manufacturing personnel can handle both standard and custom products to meet your needs.
Our in house design, manufacturing, inspection and quality control capabilities allow fast response to customer requirements.
Our standard delivery time is only half of the average western supplier's standard delivery time.
Our microwave measurement capability up to 60GHz makes us the best choice for the design and manufacturing of your components. We implement
TQM (Total Quality System) and SOP (Standard Operation Procedure) with ISO 9001:2017 certification, which assures WinFine Telecom's strong commitment to quality standards and customer satisfaction. We are confident we offer well-engineered, high quality products at globally competitive prices. Our mission is to satisfy our customers by providing timely and cost effective solutions without compromising quality, performance and delivery. Our Advantages Since 2006,EF has become a critical supplier and partner to major companies serving the Aerospace, Radar, Defense, Medical, Communications and Specialty Test industries.EF's product offerings include:
RF Isolator, RF Circulator
Coaxial Termination, Coaxial Attenuator
RF Filter, Duplexer, Triplexer
Power Divider/Splitter, RF Combiner/Hybrid Coupler
Directional Coupler
TX RX Combiner/Splitter/Multi coupler
Waveguide to Coaxial Adapter, etc.We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
FAQ
1. Q: Are you a manufacturer or a trading company?
Yes, we are the manufacturer. Our company has 15 years of professional experience in the field of telecommunications and can design and manufacture various microwave waveguide components, coaxial components, antennas and other telecommunications components for the global market.
2. Q: How do I place an OEM order?
A: 1. We will manufacture these products according to the mechanical drawings you provide. Some minor changes may occur during the production process to ensure that we can meet your electrical specifications. Or we can take the first set as a sample to see if it meets your specifications. After communication, the buyer and seller reached an agreement on product details, packaging, purchase quantity, unit price, delivery time, payment terms, etc.
2. The buyer sends a formal PO (Purchase Order) or the seller sends a formal PI (proforma invoice) with detailed terms and conditions.
3. Q: How to solve the after-sales service problem?
After receiving the goods, if you have any dissatisfaction or other problems, please contact us as soon as possible, we will give you a quick response and reasonable solution.
4. Q: How long is your delivery time?
A: Usually 7-15 business days after receiving 100% payment. For bulk orders: 15-35 working days after receipt of deposit.
5. Q: How do I get samples?
A: We need to receive your payment before we can send the sample to you. After the customer confirms the order, we will reduce the sample cost. However, if you are a regular customer of ours, we can send you a sample and then deduct it from your account on the next transaction.
6. Q: What are your payment terms?
A: For small batch orders or urgent orders, you can choose PayPal, Western Union, escrow for the convenience of buyers, 100% payment before delivery; For large orders: 30%/50% of T/T as deposit, balance before shipment.
7. Q: What about the warranty?
A: We can provide a 1-year warranty.

---
