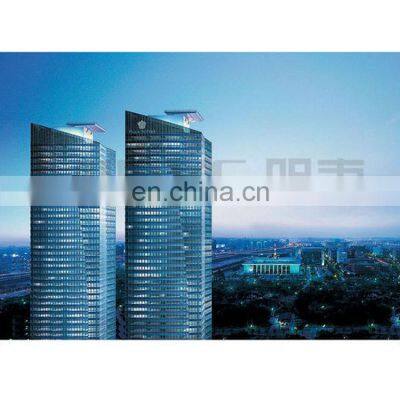

unitized system aluminum curtain wall design glass wall for building

Product Description

Product Description
unitized system aluminum curtain wall design glass wall for building from China supplier Shanghai Manufacturer
Company Information
Welcome to Shanghai MINYE Decoration Co., Ltd. Our company established in 2002, depends on high-quality products under scientific principles, we rising up to the leading enterprise of aluminum & UPVC window & door for almost 15 years. Under the total investment fund of USD5.88 Million, our company covers an area of 4,000 square meters area of office building and workshops. Our company has about 50 employees including 5 technicians. 70% of the managing directors have over 10 years' experience in the window and door and curtain wall field.OEM also Welcome.
OVER VIEW
When glass is used as the curtain wall, a great advantage is that natural light can penetrate deeper within the building. The curtain wall facade does not carry any dead load weight from the building other than its own dead load weight. The wall transfers horizontal wind loads that are incident upon it to the main building structure through connections at floors or columns of the building. A curtain wall is designed to resist air and water infiltration, sway induced by wind and seismic forces acting on the building, and its own dead load weight forces.
Product Description

Curtain Wall Description	unitized system aluminum curtain wall design glass wall for building
Systems	1. Frame Systems			Exposed framing glass wall
				Semi-exposed framing glass wall
				Invisible framing glass wall
	2.Frameless systems			Full glass curtain wall
				Structural Glass curtain wall
Glass	1.Single toughened(tempered) glass:5mm.6mm.8mm.12mm
	2.Double Glazed glass:5+9A+5mm,5+12A+5mm,6+19A+6mm
	3.Laminated glass:5+0.38PVB+5mm,5+0.76PVB+5mm
	4.Tinted lowe glass,Obsucre glass,Reflection tint glass ,Self-cleaning glass,translucent glass
Performance	Wind pressure resistance			≥5.0kpa	GB/T 7106-2008 / 9class
	Air infiltration			≤0.5m3/(h.m)	GB/T 7107-2008 / 8 class
	Water penetration			≥0.35kN/m²	GB/T 7108-2008 / 6 class
	Sound insulation			≥35dB	GB/T 8485-2008 / 6 class
	Heat preservation (K value)			≤2.0W/(m.K)	GB/T 8484-2008 / 10 class
	Shading Coefficient			≤0.2	GB/T 2680-2008 / 7 Class
Profile finished	1.Mill finish;2.Anodized;3.Powder coating; 4.Electrophoresis;5.sandblast
Sealant	silicon sealant, Polysulfide sealant,EPDM sealant

More Design
MORE DESIGNS
windows and doors are built to your specifications. So while we're showing a few
sample combinations, there are literally hundreds of products to combine and ways
to combine them.MINYE factory can help you explore the possibilities.
Options Parts
KEY LOCK/HANDLE
A cylinder lock for keyed exterior is available. The type of handle or lock you will need depends on the type of window and doors.
GRIDS
Available in 5/8” standard or 1-1/16” sculptured aluminum profiles sealed between panes. can make a window and doors more visually interesting and match other architectural elements of your home
SCREEN
Insect screens will let light and air in while keeping critters out.There are fiberglass,304 stainless steel material,can sliding ,invisible,folding opening .
GLASS
Glass options are available in 1” overall insulating units, clear,tinted, reflective, obscure and Low-E glass. Special safety glass options are available upon request.
PROFILE COLORS
Check with RAL for color options and availability.
Packaging & Shipping
PACKAGING&SHIPPING
Small goods will be packed on steel pallet or plywood box. Profile surface will have plastic film cover, windows and doors corner would be protected by paper corner gloves. Packing belt will hold goods fasten on the pallet. Stretch wrap will be used for cover whole steel pallet.
FAQ
FAQ
Q:Are you a Trading Company or a Factory?
MINYE is 100% real factory and has been verified by SGS Group and here is a VCR for your Ref https://shanghai-my.en.china.cn/company_profile/video_introdution.html
Q: How about your Production Time?
About have 25-30 working days ,it depends on the windows and doors types and profile(like color,specially requires),
Q: What about your MOQ?
For window and door,the Mini order quantity is 30 Square meters.
Q: Do you accept customized design and size?
Yes,sure,windows and doors are highly customized goods,So the size and design up to you.
Q: What's your payment terms?
T/T,L/C,Trade assurance, Paypal all are available
Q: What is your color available?
MINYE Standard Colors have Black,White,Dark grey, Nature,Coffee .Other RAL Colors also available but need more time and a bit cost.
Q:What kinds of hardware mostly?
CHINA BRAND:HOPO,KINLONG,PAGANI,YAER, CHUANG
GERMANY BRAND:ROTO,SIEGENIA
ITALY BRAND:SAVIO,GIESSE
Q:What is profile available in your factory?
Aluminum(Non-Thermal Break and Thermal Break),PVC(UPVC&vinyl),Aluminum Cladding wood;
Q:Do you provide Sample?
Sure,it is available,But need charge for sample cost and freight fee.
Our Services
OUR SERVICES AND WARRANTY
1. 6 years warranty for whole product;
2.10 years warranty for Germany brand hardware;
3.10 years warranty for Austrian brand glazing;
4.10 years warranty for U.S.A. silicon.
5.Life time service.
