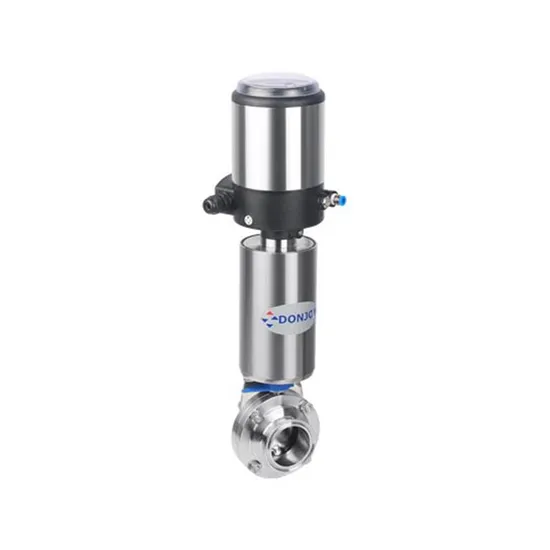

3A Sanitary Single Acting Pneumatic Butterfly Valve with Positioner Control

Product Description

3A Sanitary Single Acting Pneumatic Butterfly Valve with Positioner Control
Specification:

Product Name:	3A Sanitary Single Acting Pneumatic Butterfly Valve with Positioner Control
Valve Body Material:	SS304/SS316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max working pressure:	10Bar
Availably size:	DN10-DN300, 1/2"-12"
Max temperature	120 ºC
Availably connection:	Clamp / weld / thread/ weld thread/ flange
Availably standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic,Electric
Control:	Sensor, C-TOP, C-top controller(AS-I)
Certificate:	ISO, PED/97/23/EC, FDA.177.2600
Actuator application:	Stainless steel actuator/ Horizontal pneumatic actuator
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Packaging Details:	Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Control	Sensor, C-TOP, c-top controller(AS-I)
Actuator	Pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator
Delivery d etails:	Usually within 20 days after receiving T/T down payment

Hygienic Double Acting Pneumatic Butterfly Valve with C-top
Feature:
1.Donjoy manufacture more than 27 years,which means we had upgraded and optimized many times,solve the problem in advance to ensure best performance and best application.
2.Manufactured more than 3millions pcs
3.Forged body,one time CNC machining, guarantee machining precision.
4.Euro imported gasket,meet FDA standard.
5.With hundreds of options for butterfly valve,manual type.
6.Have certificate of FDA,3-A ,CE.

Connection:
Clamped, welded and threaded,flanged etc.
Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.

Delivery details:
Usually within 20 days after receiving T/T down payment.
If you have any inquiry, please leave message below and "Click Send "

---
