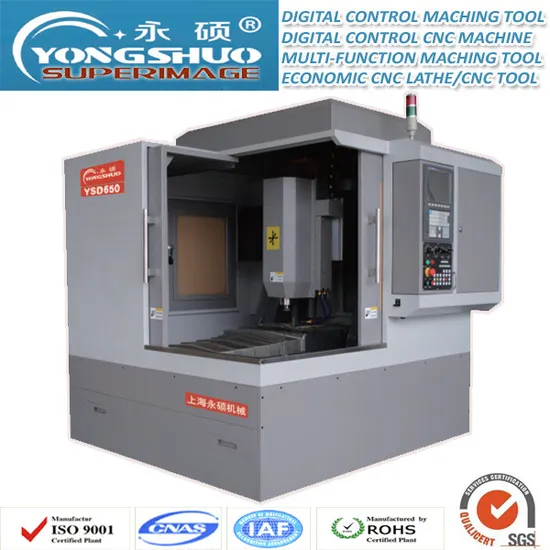

Vertical CNC Machining Center/Vertical CNC Machining Tool CNC Lathe/CNC Machine/Digital Control CNC Lathe

Product Description

Line rail CNC maching Center usually refers to the rolling guide, which is often used in the linear module of the machine tool industry. We usually call this type of component a "linear guide". The linear guide itself is divided into two parts: slide rail and slider. There are internal rollers or rollers in the slide block, and the length of the slide rail can be customized. It is a modular component, a standarized series of separate products produced by a specialized manufacturer, which can be installed on a machine tool and can be disassembled and replaced after wear. Many machine tools in the field of precision machining mostly use high precision wire rail as machine tool guide, which also greatly guarantees the machining accuracy of machine tools.
The line rail CNC Machine Center is precompressed to achieve zero clearance between the tracks, with high accuracy. In terms of service life, the line rail is much higher than the hard rail.
The cutting force of the line rail is smaller than the hard rail, but for the hard rail, the line rails of many machine tools have greatly improved their carrying capacity.
The application of wire rail is suitable for high speed machine, high speed cutting, suitable for processing products and small precision moulds. Today, more precision machining centers use wire rails.
Advantage:
Multi-function, High efficiency, High Quality, High Hardness, High Stability Low cost, Low noise, Low consumable, Less money
Main Application Areas:
Automobile manufacturing, spare parts processing;
Toy industry, parts processing and molding
Hardware and mechanical parts processing and rapid prototyping
Spare parts processing and rapid prototyping for electronic and electrical industry
Rapid prototyping and processing of building materials, ceramics and hardware industry
Main Machined Parts:
General type
light industry
Aviation industry.
Boating Industry
Metallurgy
Instruments and apparatus
An electric appliance
Stainless Steel Products
Steel structure building
Architectural decoration
Carpentry
Plastic
Aluminium
Stailless Steel
All general-purpose machine parts
Main Parameters Specification List:

TECHNICAL DATA	YSV640	YSV850	YSV855	YSV1160	YSV1370	YSV1580	YSV1890
Workbench Size(MM)	700*420	1000*450	1000*550	1200*600	1500*700	1700*800	2000*900
Process Distance In X-axis(MM)	600	800	800	1100	1300	1500	1800
Process Distance In Y-axis(MM)	400	500	550	600	700	800	900
Process Distance In Z-axis(MM)	400	500	500	600	750	700	800
Worktable to Spindle Nose(MM)	170-590	120-620	120-620	120-720	170-920	170-870	160-960
Spindle Center to Column Spacing	456	550	595	650	740	850	960
Max. Loading Weight(KG)	300	450	500	800	1000	1500	1600
T-Groove Width/Spacing(MM)	3-18*125	5-18*90	5-18*95	6-18*90	5-22*135	5-22*140	2-22*165
Range of Spindle Speed(RPM)	12000 Direct connection	Continuously viable 8000/10000 12000 Direct connection	Continuously viable 8000/10000 12000 Direct connection	Continuously viable 8000/10000 12000 Direct connection	Continuously viable 8000/10000 12000 Direct connection	Continuously viable 8000/10000 12000 Direct connection	Continuously viable 8000/10000 12000 Direct connection
Cutter Handle Type	BT40	BT40	BT40	BT40	BT40	BT50	BT50
Moving Speed(M/MIN)	48	48	48	36	24/24/18	20/20/15	20/20/15
Cutting Feed Speed(M/MIN)	10	10	10	10	8	8	8
XYZ-axis Ball Screw Specification	3216	3616	4016	4016	5010	5010/6310	5512
X-axis Linear Guide Specification(MM)	30	35	35	45Six-slider	45Six-slider	45Six-slider	45Six-slider
Y-axis Linear Guide Specification(MM)	30	35	45	45	45Four-rail	45Four-rail	45Four-rail
z-axis Linear Guide Specification(MM)	35	35	45	45Six-slider	55	55Six-slider	55Six-slider
Principal Axis Motor(KW)	5.5	7.5	7.5	11	11/15	15	18.5/22
Tool Capacity	20	20	24	24	24	24	24
Floor Space(M)	2.3*2.0*2.3	2.7*2.4*2.5	2.8*2.4*2.5	3.2*2.7*2.7	3.8*2.9*2.9	4.3*3.1*3.2	4.5*3.2*3.3
Weight(T)	4.0	5.3	5.8	7.8	11	12.8	13.3

---
