Chemical Material Pharmacy Laboratory 300ml Planetary Centrifugal Vacuum Defoaming Mixer

Product Description

Product Description

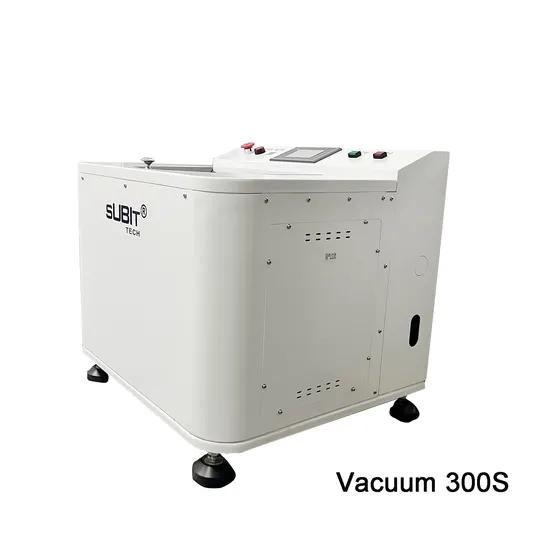

Types: SBT-VTP300S is a vacuum deaeration mixer is a planetary centrifugal mixer, mainly applied in mixing fluid or powder material and reach deaeration effect.
Introduction 1.Rotation/Revolution while working with high power vacuum pump,equipment can stir the material evenly in few seconds or few minutes,stir and vacuum complete at the same time. 2.Mixing capacity varies from a few grams up to 300 grams by using different containers, meet the requirement from laboratory use to volume production. 3.Up to 5 preset programs(Can be customized), every program can be divided to 5 segment, each segment with different mixing time and speed, able to deal with different types of the materials. 4.Max rotation speed is 2000rpm, high viscosity material can be mixed evenly . 5.The equipment is suitable for customer who have high volume demand. Single cup can mix up to 180g, double cup can mix up to 360g. 6.The key parts are all from industrial famous brands from home and abroad, to guarantee the stability of equipment under long time and high load operation.
Tips:
No further notice if there is appearance and specification change.
The product is non-explosive proof ,do not stir danger or hazardous material
APPLICATION PRODUCT AND INDUSTRY

LED Sealing&Package	Silicone Rubber	Polymer Material	Epoxy Resin	Ink	LCD
Adhesive	Cathode&Anode Material for Li-ion Batteries	Silver Paste	Pharmaceutical	Conductive Paste	Laboratory

Characteristic:
1.Max mixing capacity 360g.
2.The equipment stir the material under vacuum status through high-speed revolution/rotation (max 2000RPM) to achieve deaeration effect.
3.The equipment is non-contact stirring. 4.High viscosity resin can be stirred and achieve ideal deaeration effect in short time ,and material no overflow.
5.High stability performance.
Mixing effect
Product Parameters
Technical Parameter:

Model	SBT-VTP300S
Product Name	Centrifugal stirring defoaming machine
Memory	Able to store 5 group program
Mix program	Each program can set 5 segment w different speed,vacuum level,rotation/revolution ratio
Revolution Speed	100-2000rpm
Rotation Speed	Invariablenes
Power Supply(voltage)	Single phase 220v,50hz/60hz
Power Consumption	0.5-1.5KW.
Container Capacity	300ml*2 cups
Optimal Capacity of Mixing	2-180ML* 2 cups
Operation type	Human-machine interaction mode
Vacuum	-98Kpa
Working Ambient Temperature	10-35ºC,35-85%RH(No condensation)
Dimension	H650*W580*D550MM
Weight	120KGS
Safety Device	Lock Sensor,Vibration Sensor,Emergency Button
Adaptor(Optional) Photo is only showed applied example, customer requirement can be negotiated.

Packaging & Shipping
1)Dimension w Non-wooden case Packing: H700*W630*D600MM
2)G/N W: 120/170KGS
After Sales Service
1)Machine warranty period: 12 month, factory would supply spare parts on free in warranty time.
2)Password management
Provide the customer with a set of access codes for editing the defoaming program page at the factory to prevent the operator from rewriting the program at will, it might cause the material to be unsatisfactory.Please take care of the safekeeping.
3) Technical supporting in lift time. Any problems happened, factory would response in 8hours via Email, instant message or phone directly.
About us:
ShenzhenSubit Machinery EquipmentCo.,Ltd.is a company with strong R&D strength of the company, is the leading force of domestic materials and equipment.
Common production equipment of the company:
1. mixing vacuum defoaming machine:
high vacuum is removing nanobubbles, complete specifications with independent research and development of plastic cups,slurry tank,UV standard Glue cans,syringes and disposable cups to cover all the glue containers.
2. planetary centrifugal Blender: the principle of planetary agitation is very uniform,specially provided for materials that can not be evacuated.
3. three-dimensional mixer: sealed tank below 2L, sealed test tube with adiameter of less than 130 length and 180.
4. vacuum ball mill:developed based on vacuum deaeration machine, grinding tank allina vacuum, for fear of oxidation material All directional protection,with high speed,high efficiency and security advantage!
Our excellent engineering design and advanced technology manufacturing technology ensure the durability of the equipment.
