Household Industrial Manual Auomatic Auto Multiport FRP Resin Tank Water Treatment Softener Sand Filter Filtration System Runxin Control Valve

Product Description

Household Industrial Manual Auomatic Auto Multiport FRP Resin Tank Water Treatment Softener Sand Filter Filtration System Runxin Control Valve Product Description Runxin Automatic Multiport Water Filter Flow Control Filter Valve/Softener Valve
Runxin valves innovative design of high degree pottery sealing and multi flow channels have own patent for invention in 18 countries, such as USA, Russia, South Korea, Mexico, Australia, India, Philippines and ten countries membership of the EU including Germany, Italy, France, Netherlands. Products have achieved the certificates of the National Sanitation Foundation, the European Union CE and RoHS certification.

Water Treatment Capacity		Filter		Manual softener	Automatic/Down-flow		Automatic/Up-flow
		Manual	Automatic	Down-flow Up-flow	Time Clock Meter Type	Type	Time Clock	Meter Type
1-2m3/h	Model	51201A 51201B 50201C 151102 51202C	53502 52502H 53502B 63502P	61202 61202C 71202 (UF)	63502/60002 (Semi-automatic) 62502/63502B/ 63502P	63602/62602 63602B/63602P	73502/70002 (Semi-automatic) 72502/73502B 73502P	73602/72602 73602B/73602P
		F52/F56B F56C F56E/F56EC	F71B1 F71D1 F71IG1 F71P	F64B/F64BC F64C (UF)	F65BI/F65C F65D1 F65G1/F65P1	F65B3/F65D3 F65G3/F65P3	F69A/F69C/F69DI F69G1/F69PI	F69A3/F69D3 F69G3/F69P3
4m/h		51104 51204C	53504S 53504 52504H 53504B 63504P	61104 61204C	63504S/63504 62504 63504B/63504P	63604S/63604 63604B/63604P	73504S/ 73504/72504 73504B/73504P	73604S/73604 72604 73604B/73604P

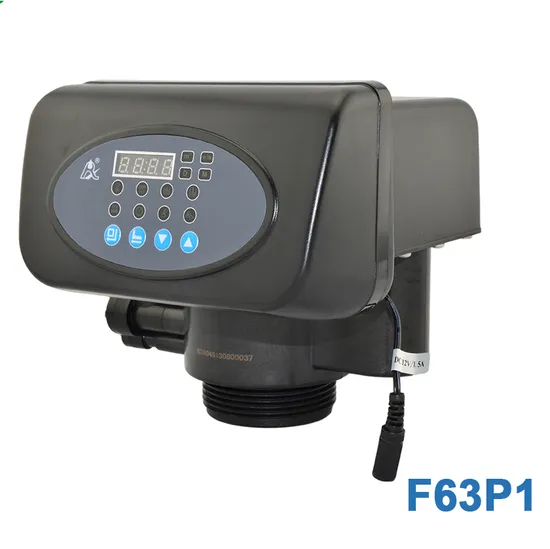

		F56AV F56AC	F67B F67C1 F67D1 F67G1 F67P	F64A/F64AC	F63B1/F63C1 F63D1 F63G1/F63P1	F63B3/F63C3 F63G3/F63P3	F68Al/F68C1/F68DI F68G1/F68PI	F68A3/F68C3 F68D3 F68G3/F68P3
5-6m/h		51106	53506S	61106			72505/73505	72605/73605
		F56F	F67B-A	F64F			F92A1-LCD F92AI-LED	F92A-LCD F92A-LED
10m3/h		51210	53510 53510B	61210	63510/63510B	63610/63610B
		F56D	F75A1 F75B1	F64D	F74A1/F74B1	F74A3/F74B3
12- I 8m*/h		51215	53518	61215	63518/63515	63618/63615 63612	73515	73615
		F77BS	F77B1	F77AS	F77A1/F99A1	F77A3/F99A3 F99	F99DI	F99D3
20m3/h			53520		63520	63620	73520	73620
			F95B1		F95A1/FI11A1	F95A3/F111A3	F95D1	F95D3
3040m/h		51240B	53530	61240B	63540	63640	73520
		FI12BS	F112B1 F112B3	F112AS	F112A1	F112A3	F96D1
50m3/h			53550		63550	63650		73620
			F96B1		F96A1	F96A3		F96D3

Detailed Photos Runxin valve is one of the three largest control valve manufacturers in the world. Its products are divided into automatic control valve, manual control valve, Runxin filter valve, Runxin softening valve, Runxin time control valve and Runxin flow control valve.
Characteristics of Runxin Control Valve :
1. end face sealing structure
A. Moving plate is ceramic
B. High strength synthetic material is used for the setting
C. For various softener valves, partial balance structure is adopted to prevent the torque increase of sealing surface due to the increase of water pressure.
2. pressure operation
Because two high flatness sealing plates are used for the lubrication valve, they are mutually compatible with rotary seals, and can be operated directly with pressure when each work level is switched.
3. no raw water bypass
The control valve automatically blocks the outlet pipe of the water softener or filter during regeneration or cleaning, and prevents the raw water from entering the system.
4. simple assembly
The valve is mainly composed of valve body, dynamic sealing plate, fork, pressing plug, etc; The complex parts valve body is made once, with less processing links and high dimensional stability.
The positioning accuracy of each working position is higher by directly fixing it on the valve body.
During installation, each part is limited and will not be installed incorrectly.
5. there are many kinds of jet machines
The ratio of the salt absorption to the total flow rate of the outlet is between 25% and 35%.
Each tank has a jet to match.

Packaging & Shipping Inner Box:
Size: 250mmx227mmx200mmEach set have a inner boxThe right is the inner box size
The whole Package of Runxin Valve:
Size: 774mmx465x225mm
The left is the outer packing size of Runxin Control Valve FAQ Q1:What is your terms of delivery?
A1:EXW/CIF/CFR/FOB.
Q2: What's your MOQ?
A2: There's no MOQ limits, 1 piece for test at first is acceptable.
Q3:What is your price?
A3:We can provide our high quality products with reasonable price.
Q4: What about your quality?
A4: We guarantee that our products are 100% inspection before ship to our client.
Q5: Can we print our logo on the gauge?
A5: Yes, we can print logo as customer requirement.
Q6:How about your delivery time?
A6:Generally speaking,it takes7-60days after receive your payment,but it also depends on product model and quantity. Related Products

---
