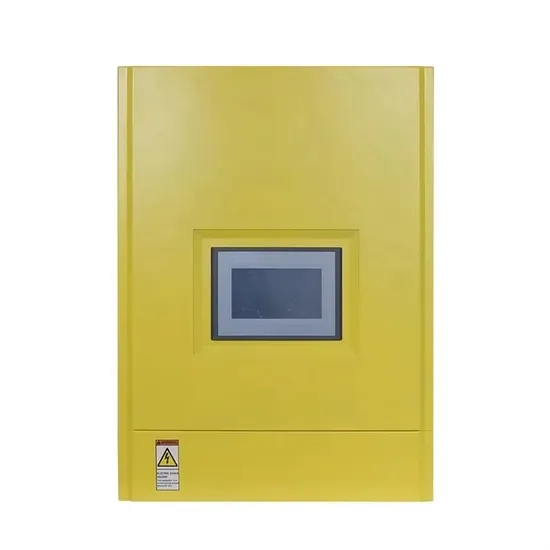

Wind Turbine 3 Phase Grid Tie Controller for on Grid Wind Turbine System

Product Description

Performance characteristics of on grid wind turbine controller: 1. This product is produced according to the industry standard JB/T6939.1-2004 and the national standard GB/T19115.1-2003. It can also be produced according to the technical requirements of users. 2. Color touch screen display.
Visually display the working status of the controller. Rich data display: real-time wind turbine voltage and current, solar panel voltage and current, DC output voltage and current, and cumulative power generation 3. The technical parameters of the controller can be adjusted through the touch screen.
The control parameters can be adjusted for different wind turbines.
4. Two sets of control systems are adopted, PWM constant voltage and constant current system +three-phase braking system. 5. Current control, wind speed control and wind turbine speed control can be added and the control parameters can
be set. 6. In the case of strong winds, the constant voltage and constant current output of the controller provides DC constant
voltage power to ensure the normal operation of the inverter. 7. When the on grid inverter is offline, the controller outputs aconstant voltage and waits for the inverter to return to work. 8. When the grid is cut off, the controller will automatically control wind turbine brake and the inverter will stop output to grid.
When the grid resuming, the controller stops brake wind turbine and the inverter will resume power supply. 9. The inside of the controller is equipped with surge protector.
Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system.
On another way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment. 10. Controller has an emergency stop switch, in case of emergency, when the button is pressed the front panel,cut off all power supply of the controller and the wind turbine will immediately brake.
11. The controller has a manual brake switch.
To using this switch, the wind turbine will brake. , 12 Using Modbuscommunication protocol.
Convenient for customers to conduct secondary development. 13 Support RS485, WiFi, GPRS, Ethernet and other communication methods.
You can monitor the working status of the on grid wind power generation system in real time through the PC or mobile phone , and you can also query the historical working status.
The mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things. 14. The solar panel control system can be added according to customer needs. 15. The controller can add various control functions such as yaw control, pitch control, mechanical folding tail control,
mechanical brake, hydraulic brake, electromagnetic brake, etc. according to the type of wind turbine.
On Grid Wind Turbine Inverter Performance Characteristics:
1. The main circuit uses the DSP chip produced by the American Tl company, German Infineon IGBT module, drive protection is the
Japanese Mitsubishi movement, and the on grid output part use isolation transformer, which is safe and reliable.
2. Using SPWM pulse width modulation technology, pure sine wave output, automatic synchronous tracking with the grid, power factor
close to 1, low current harmonic content, no pollution to the grid, no impact.
3. Wind turbine input maximum power tracking technology (MPPT).
4. The power curve of the wind turbine can be set, the default is 20 points, and the internal expansion is 50.
5. 7-inch color touch screen display, system operation data and fault information at a glance, and convenient parameter setting.
6. On grid inverter current closed-loop control, controllable and adjustable.
7. The input DC voltage range is wide, adapt to the needs of different occasions.
8. Frequency disturbance detection technology to realize anti-island control.
9. The comprehensive power protection scheme and perfect self-detection and protection functions will stop the on grid inverter
when a system failure occurs.
10. Circuit structure is compact, the maximum efficiency 98%.
11. Support RS485, WiFi, GPRS, Ethernet and other communication methods.
You can monitor the working status of the on grid wind power generation system in real time through the PC or mobile phone, and you can also query the historical working status.
The mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.
The On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system.
Wind energy is converted into AC electrical energy by the wind turbine, and then converted into DC electrical energy by the on grid controller, and then DC electrical energy is converted into AC electrical energy of the same frequency and phase as the grid by the on grid inverter, and part of the power is supplied to the local load.
Surplus power is fed into the grid.
Specifications:

On grid wind turbine inverter		ENM-OGI01-3KW		ENM-OGI01-5KW
Rated output power (AC)		3KW		5KW
Max. Output power (AC)		3.3KW		5.5KW
Input voltage rang (DC)		0-800V		0-800V
MPPT Voltage range (DC)		150V-700V		150V-700V
Max. Input current (DC)		6.8A		11.2A
Rated current		6.2A		10.2A
THD Current harmonic		<3%(at rated power)
Power factor		>0.99
Max. efficiency		98%
Allowable grid voltage range (AC)		220V/380V/440V/480V (Three-phase)±20%
Allowable grid frequency range		50Hz/60Hz±10%
Automatic operation conditions		DC input and power grid meet the requirements, and the inverter operates automatically
Restart time after power failure		30s( adjustable)
General parameters
Function	Wind turbine curve setting
Automatic protection	Polarity reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, etc
Display	Touch screen, LCD
Monitoring content	DC input voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speed
Protection level	IP20(Indoor)IP65 (Outdoors)
Telematics	RS485/USB/GPRS/WIFI/Ethernet (optional)
Environment	Operating amb. Temp. & Hum -30-60°C,<90% no condensation
Noise (1m)	<40dB
Refrigeration mode	Forced air cooling
Size / weight
Inverter size / weight			550*225*770mm 49kg	550*225*770mm 59kg

General parameters
Function	Rectification,DC output,output voltage control,output current control,Dump load control, control parameter setting, wind turbine curve setting
Automatic protection	Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection,short circuit protection,island effect protection,LVRT,overheat protection, overload protection, ground fault protection, etc
Display	Touch screen, LCD
Monitoring content	Wind turbine voltage , current, power, solar panel voltage, current, power,DC output voltage, current,power, inverter output power,* cumulative power generation,* power generation at any time,* rotational speed,* wind speed
Protection level	IP20 ( Indoor ) lP65(Outdoors)
Telematics	RS485/USB/GPRS/WIFI/Ethernet (optional)
Environment	Operating amb. Temp.& Hum -30-60°c,<90% no condensation
Noise (1m)	<40dB
Refrigeration mode	Forced air cooling
Controller size / weight	360*230*480mm 17kg	360*230*480mm 18kg
Dump load size / weight	400*400*250mm 12kg	600*450*380mm 28kg
Inverter size / weight	450*275*770mm 39kg	450*275*770mm 44kg
