New Products Automatic Sugar Melting Pot Beverage Making Machine

Product Description

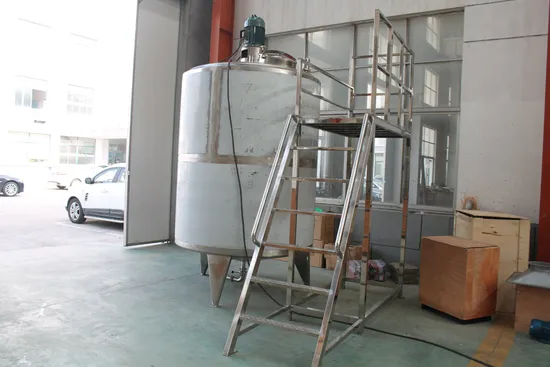

Sugar melting pot
Description:
This syrup melting pot is all made of SUS304 material, meet the standard of national ISO9000, suitable for food, beverage and medical industry. It will not rust or lichen. It is joint with 3 parts -topper, bottom and body by high frequency welding, smooth and nice on joint line. The tank plate is suitable to endure pressures. The stirring bar will be rotate with the motor driving. The liquid inside tank will be heated by electrical pipes. The heating can be switched on and off according to thermal meter indications. Lever gauge will show the lever correctly.
It is widely used in the carbonated beverage processing, the syrup needed to be heated and mixing with water before going to the beverage mixer. This mixing tank ensure the syrup and water mixing equally, then can make the taste to be good. It is the best choice for the carbonated beverage production plant.
Sugar melting pot characteristics:
1. The sugar melting pot is made of SUS304 stainless steel.
2. The shape of tank body is cylindrical.
3. With conical cover.
4. The beverage tank is equipped with manhole.
5. With digital show thermometer.
6. With CIP spray ball.
7. With supporting legs.
8. With temperature and level transmitters.
Technical parameter

Material:	SS304 or SS316L
Design Pressure:	-1 -10 Bar (g) or ATM B9
Work Temperature:	0-200 °C
Volumes:	100~30000L
Construction :	Vertical type or Horizontal type
Jacket type :	Dimple jacket, full jacket, or coil jacket
Structure :	Single layer vessel, vessel with jacket, vessel with jacket and insulation
Heating or cooling function	According to the heating or cooling requirement , the tank will have jacket for required function
Optional Motor:	ABB, Siemens, SEW or Chinese brand
Surface Finish:	Mirror Polish or Matt polish or Acid wash&pickling or 2B
Standard components :	Manhole,sight glass , cleaning ball
Optional components :	Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Load cell Valves
Applications:	Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting Industrial

Service:
We will provide whole drawing for bottle mould. Free charge for design on the mould. We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition. The buyer pays the round air tickets and 80usd as salary per person per day.
Delivery time:
30 days upon deposit and approval to the bottle drawing.
Payment term:
For machine: 30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70% will be paid before shipment.
Guarantee:
We response for 12 months warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client. And send engineer to client's company, help install the machine, teaching their staff operate the machine and also, we do have a private school which help our client sending their staff to china, help them training.
After sales service:
We will solve the problem by phone first ,and send the spare parts by DHL,Or if you need engineer in your factory ,you need pay travel expenses; hotels, airfares, meals and ground transportation and any other expenses related to installation and training at customers facility.

---
