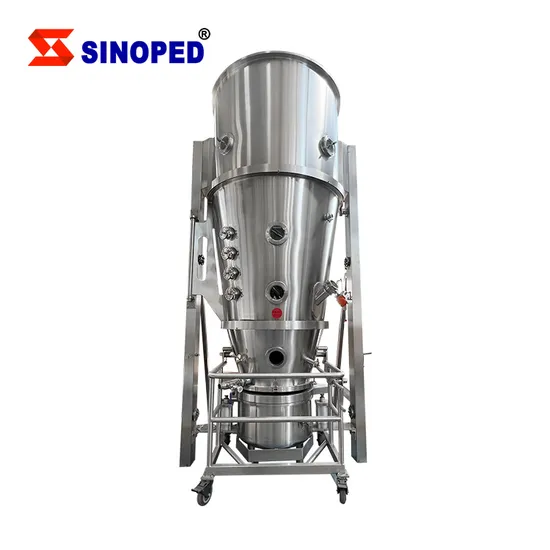

Fluid Bed Dryer Granulator Fluid Bed Fluid Detergent Enzyme Granulator

Product Description

Product Description
What can our Fluid Bed produce ?
The machine is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and so on industries.
Medicine granulation and coating Granulation: tablet granules, granules for granules and capsules.
Coating: granules, protective layer of pills, color preparation, slow release, film, enteric coating.Food Granulation and Coating Sugar, coffee, cocoa powder, butter, powdered fruit juice, amino acids, condiments, puffed food. Pesticide, Pigment Pigment and Dye Granulation Drying of Powdery, Granular and Block Materials.
FLG120 SOLID PREPARATION GRANULATOR SERIES PRODUCTION LINE
The principle of action:
1. Minxing and granulating in GHL400 : dry mixing, then add the binder, made into the required damp material, final the cutting Knife makes the wet material into graunles.
2. Finish make granule then discharge to GZL-350 High Speed Grinding Granulator (WET mill) get required size.
3. After wet mill, the wet granule will be suck into FG120 dryer for drying by negative pressure of exhaust fan.
4. After drying then discharge to dry mill get required size.
Features of equipment:
★PLC intelligent control, highly automated and convenient for operation and maintenance.
★Completely automated airproof material loading, closed type material unloading system, pipeline connection, quick clamp connector, free of blind corner, convenient for dismantling and easy for cleaning.
★Adopting hoop join and easy to disassemble.
★Using trolley-type granular separating apparatus, convenient and flexible for installing.
★Completely made of stainless steel and 316L quality stainless steel used for parts exposed to materials.
Fluidized bed drying equipment is a drying equipment machine that uses fluidization technology to perform physical or chemical processing of fluids or solid particles, such as drying, leaching, adsorption, ion exchange, and particle mixing. Fluidized bed drying equipment has the advantages of high heat and mass transfer rate, compact structure, and convenient operation of drying equipment, so it is widely used in chemical, food, ceramics, pharmaceutical and other industries.
Machine Photos
Our Customers
Installation and Debugging
Product Parameters

Spec
Item		unit	5	30	60	120	200	300	500
Container of raw material	dim	mm	400	700	1000	1200	1400	1600	1800
	volume	L	22	100	220	420	670	1000	1500
Production capacity	Min	kg/batch	4	15	30	80	100	150	250
	Max	kg/batch	6	36	72	140	240	360	600
Consume of steam		kg/batch	23	70	140	211	282	366	465
Amount of compressed air		m³/min	0.3	0.3	0.6	0.6	0.9	0.9	0.9
Power of fan		kw	4	5.5	11	18.5	22	30	45
Temperature		°C	~120°C .Adjustable from ambient to 120
Collection rate		%	>99
Time of operation		min	15~30(Depends on material)
Content of final product		%	~0.2(Depends on material)
Noise		dB	≤75
Height of main machine		mm	2300	2500	3000	3300	3800	4000	4800
