Basic Info.
Type
Surface Grinding Machine
Processing Object
Splined Shaft
Controlling Mode
Artificial
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
GS, CE, RoHS, ISO 9001, EAC
Workbench Size (Length * Width)
800*400mm
Maximum Left and Right Movement
850mm
Maximum Front and Back Movement
430mm
Maximum Load-Bearing Capacity of The Wor
550kg
T-Slot of The Workbench
14*3mm
Workbench Speed
5*25m/Min
Grinding Wheel Size
350*127*40mm
Net Weight of The Machine
2700kg
Transport Package
Wooden Box
Specification
2350*2300*1980mm
Production Capacity
5000 Piece/Year
Product Description
Product Description
The machine tool applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.It can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

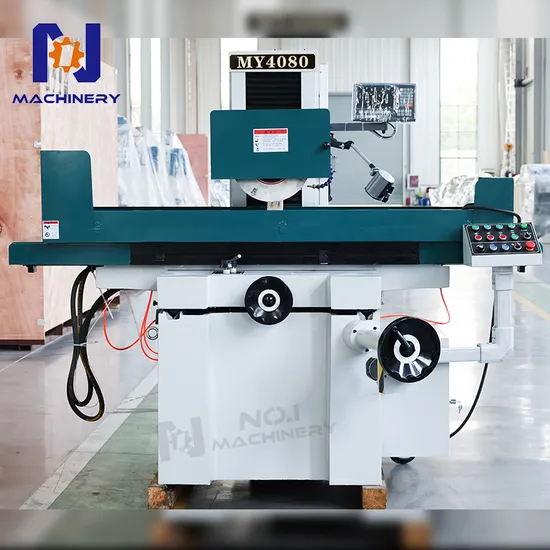

Product Parameters
Technical specifications | Unit | MY4080 |
Workbench size (length * width) | mm | 800*400 |
Maximum left and right movement | mm | 850 |
Maximum front and back movement | mm | 430 |
Maximum distance from the spindle center to the workbench | mm | 540 |
Maximum load-bearing capacity of the workbench | kg | 550 |
T-slot of the workbench | mm | 14*3 |
Workbench speed | m/min | 5-25 |
Front and rear handwheel feed | mm | 0.01mm/grid 2mm/circle |
Front and rear movement speed | mm/min | 50HZ 1130 |
Grinding wheel size | mm | 350*127*40 |
Grinding wheel speed | r/min | 1450 |
Spindle motor | KW | 4.5 |
Surface roughness | um | Ra:0.63 |
Net weight of the machine | KG | 2700 |
Packing size (length * width * height) | mm | 2350*2300*1980 |
Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 80,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
