Aotai Pipe or Tube Cold Beveling Machine Hot Sale

Product Description

Product Application
1. Used for carbon steel, stainless steel and alloy steel pipes end beveling.
2. Can process the U, V, J, Y, compound shape according to the customers requirement.
3. Application: petroleum, chemical, natural gas, food, boiler, medicine, power supply construction, nuclear power.
Main Features
1) Inner mounted quickly and easily, self-located in the center of the pipe.
2) Beveling and grooving with high speed, used for welding preparation.
3) Cold cutting will not influence the pipe's material.
4) Adopts "Y" shape structure design, minimal radial space, light weight, easy to carry, safe use.
5) Can process inside beveling and deep hole, facing, flange, convex surface and seal groove.

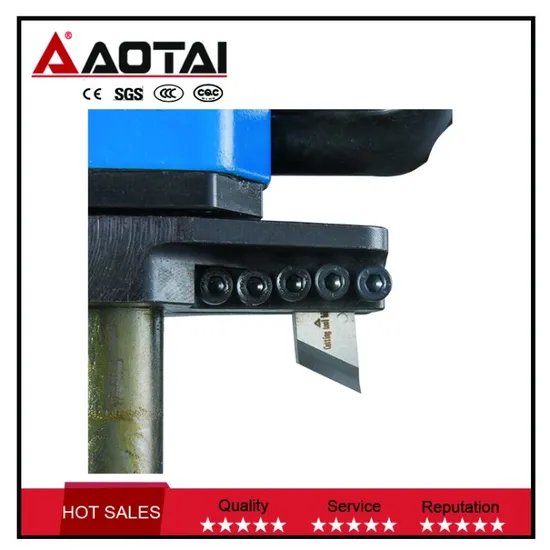

Detailed Images
Technical parameter
Electric motor:
Driven by low-energy consumption electric motor 110V or 220V optional, 50-60Hz
Pneumatic motor:
Driven by pneumatic motor, air working pressure: 0.63-1.0Mpa, Air consuming flux: 960-2000L/min

Electric motor	Pneumatic motor	Working range (ID)mm	Wall thickness	Rated power(kw)	Rotating speed(rpm)	Net weight(kgs)
ISY-150	TCM-150	60-171	≤15mm	1.43	30	21
ISY-250	TCM-250	80-240	≤15mm	1.43	16	32
ISY-351	TCM-351	150-330	≤15mm	1.43	10	72
ISY-630	TCM-630	300-600	≤15mm	1.43	8	83
ISY-850	TCM-850	600-820	≤15mm	2.0	7	96

Fairs
Customer Photo
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depand to quantity.
Q: What is your terms of payment ?
A: 1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;
2) If all the cost is less than USD $ 10000, T/T 100% required in advance.
Company Info
Aotai Machine manufacturing Co., Ltd is specialized in the research, develop and manufacturing of welding equipments and welding technology supports. It is a high tech enterprise engaged in scientific research, develop, product manufacturing and trade .In the past years, we have imported advanced equipment and technology such as Japanese Zimarac digital controlled tooling machine multiple processing center, digital controlled tooth moving machine and tooth rolling machine. We have continuously updated our products and technology and our company have passed ISO9001 quality certification. And we are member of grade one supplier network for China Petroleum & Natural Gas Group Company
Aotai company has supplied superior quality equipments and technical services to China nucleus, aerospace, petroleum, chemical, power supply construction and boiler industry. And our exported products are widely used in the large scale piping projects in Kuwait, Sudan, Pakistan and etc. and are well accepted and supported by our foreign clients.
We take credit and sincerity as the base of our development and we will utilize our advanced technology to service all our clients.
Certifications
Order Guide Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase).
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed.

---
