Barrel Oil Pump Stainless Steel Drum Pump for Oil Transfer

Product Description

Product Description

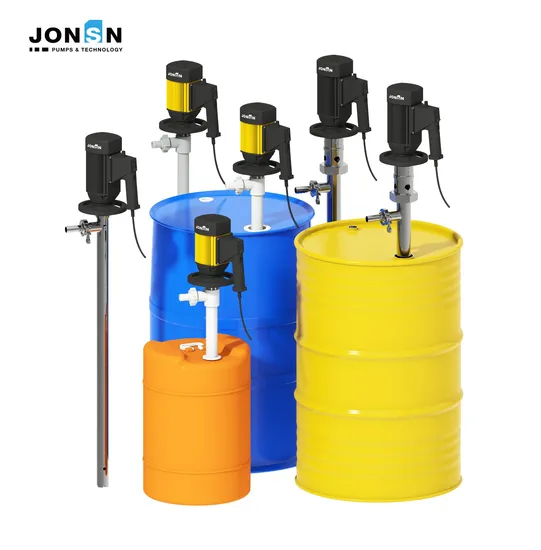

HV series middle viscosity drum pump is specially designed for 0-5000cp viscosity medium, the design concept of this product adopts portable, easy to operate, modularization, outlet tube easy to disassembly etc. After engineer's long time tracking & customer feedback, this product is very suitable for delivering glycerin, lubricating oil middle-low viscosity medium, it has the characters of durability, safety & reliability.
Product parameters
1. Flow rate: 20-180 l/min
2. Delivery head: 0-7 m
3. Max. temperature: 90ºC
4. Max. Visocisty: 0-5000cps
5. Pump OD: 46mm
6. Max. gravity: 1.8
7. Drive: Electric motor
8. Voltage: 220V
9. Power: 2KW
10. Immersion length: 1000mmSecure Features & Advantages
Features:
Security:
Designed with a non-leakage, high pressure shielding structure, the PT drum pump is safe to use and able to convey all kinds of hazardous material.
Practicality:
Portable with a total weight 4-8kg for pump & motor; The PT pump has a high performance closed impeller, enabling it to empty a standard 200L drum in 2-3 minutes.
Versatility:
Standard quick-fit 1" connector or quick-fit G1 thread structure, suitable for all types of connectors, complete with accessories to meet different demands
Reliability:
The motor and pump tube adopt quick-alignment mounting structure and the modular construction design makes installation, dismantling for cleaning and maintenance easier without auxiliary tools. Dismantling and assembling can be completed in 5-10 minutes.
Environment Friendliness:
No pollution to the environment.
Advantages:
1. High quality material:
SS pump use Janpan NSK bearing, PVDF pump use imported USA HC276 with high corrosion resistance.
2. Sanitary structure:For stainless steel pump makes it applicable for food industry.
3. Easy to replace and maintain:
Motor and pump adopt adjustable installation structure; a pump can be replaced with different motors easily in 5-10mins.
4. Leakage-free and high pressure shielding design:
Ensure its safety for dangerous liquid transfer. And lower down its maintenance cost.
5. High performance & low cost:
With decades years experience of international branded high quality pump, set factory in Ganzhou, Jiangxi, we optimize the design and production make it to be high performance with lower cost.
APPLICATIONS
Mainly used for all kinds of strong acids, alkalis, organic solvents, additives, auxiliaries, oils and other kinds of barrels or containers of medium and low viscosity media. Such as: methanol, acetone, toluene, acetic acid, nitric acid, phosphoric acid, sodium hydroxide, sodium hypochlorite, acrylic acid, ammonia, cyclohexane, etc.
DRUM PUMP ACCESSORIES

1. Quick clamp	6. Hose	11. Hose with live joint	16. Air filter
2. Te-flon gasket	7. Threaded hose connector	12. Pump fixator	17. Dosing gun
3. Threaded quick connector	8. Reducer union	13. Equipotential ground wire	18. Adaptor joints
4. Hose quick connector	9. Quick combination connector	14. Stainer	19. Drain pipe
5. Hose clamp	10. Flowmeter	15. Wall mounting
