| Model | SSLC2836 | ||||
| Camera | |||||
| Sensor | 1/2.8″, 4.0 megapixel, progressive scan, CMOS | ||||
| Day/night swtich mode | ICR Infrared filter type | ||||
| WDR | Digital WDR | ||||
| DNR | 3D DNR | ||||
| Pan&Tilt | Pan: 0° ~ 263°,0.1°-20°/s Tilt: 0° ~ 90°,0.1°-10°/s | ||||
| WDR | 120dB | ||||
| S/N | >56dB | ||||
| Lens | |||||
| Lens | 3.6mm F1.6 | ||||
| Iris | Fixed | ||||
| Field of View (H) | 87.6° | ||||
| Field of View (V) | 51.2° | ||||
| Field of View (D) | 96.5° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 3.6 | 62.1 | 24.8 | 12.4 | 6.2 | |
| Video | |||||
| Video Compression | H.264/H.265 | ||||
| Frame Rate | Main Stream: 4MP (2560*1440), Max 15fps; Sub Stream: 640*360,Max 25fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| Video Stream | Double streams | ||||
| Audio | |
| Audio Compression | ACC/G711 |
| Audio Bitrate | 64 Kbps |
| Two-way audio | Support |
| Storage | |
| Edge Storage | Cloud storage & Max. 256G SD card storage |
| Network Storage | ANR, NAS(NFS) |
| 4G | |
| 4G Bands | FDD:B1/B3/B5/B8,TDD:B34/B38/B39/B40/B41 |

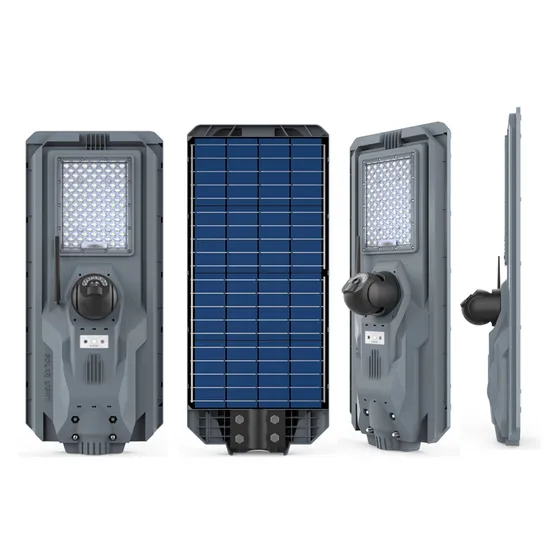

| Solar Street Light | |
| Solar Panel | A-level monocrystalline silicon 4V/28W(574*295.5mm) |
| Battery | LiFePO4 36Ah 5V |
| Number of lamp chip | 104 pcs SMD3030 |
| Material | AL6063+Teijin PC |
| Lamp size | 700*30*145mm |
| Pole size | φ76mm |
| Discharge time | 4-5 rainly & cloudy days |
| CCT | 6500-7500K |
| Installation Height | 4m |
| Lumen Output | 4500lm |
| IP Rank | IP65 |
| General | |
| Carton Dimensions (L × W × H) | 720× 200 × 340mm |
| Gross Weight | 19kg (41.89lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
