KME20 2ton New Prices Bagger Chinese Small Digger Cheap Mini Excavator Hydraulic Excavators

Product Description

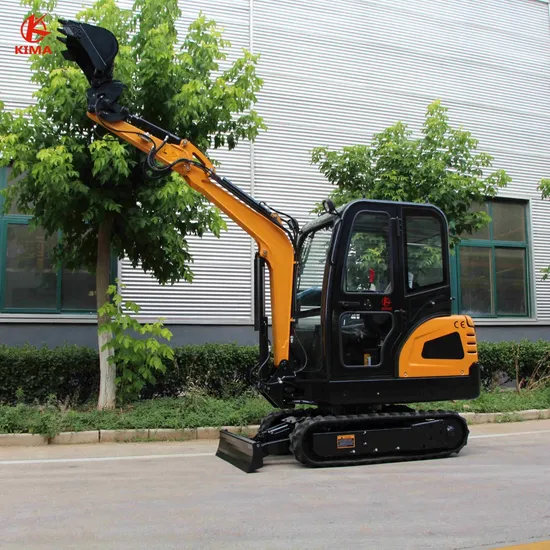

KME20 Mini Excavator
Excavator engine:KUBOTA
Excavator dimension:3865x1050x2270mm
Excavator weight:1950KGS
Excavator Bucket capacity:0.06m³

Description

KME20 excavator is our figured product with swing boom, and extra hose for attachments such as hammer, auger. Swing motor and travelling motor are using American Eaton brand, which is more stable and give strong power to the machine.This mini excavator has two versions: open cabin or enclosed cabin, so you can choose according to your situation.

KME20
Type of cab		Cabin
Bucket capacity		m3	0.06
Bucket width, std.		mm	430
Machine weight		kg	1950
Dimensions	Overall length	mm	3865
	Overall height	mm	2270
	Overall width	mm	1050
	Min. Ground clearance	mm	210
Engine	Brand	Kubota
	Model	D1105
	Displacement	L	1.1
	Output	KW/rpm	14.0/2200
Working ranges	Max Digging height	mm	3365
	Max Dumping height	mm	2385
	Max digging depth	mm	2050
	Max. Digging radius	mm	3880
	Boom swing angle(Left/Right)		75/45
	Min .swing radius	mm	1720
	Max digging force (Arm)	kN	11
	Max digging force (Bucket)	kN	14.5
Track	Type		Rubber track
	Rubber shoe width	mm	230
Undercarriage	Track length	mm	1605
	Traveling speed	km/h	3.5
	Gradeability	deg	35
Swing speed		rpm	10-12
Ground pressure		kpa	26
Dozer size	Width	mm	1050
	Height	mm	235
	Lifting capacity (Height/Depth)	mm	230/275
Hydraulic pumps	Type		Gear pump
	Flow rate	L/min	48.4
	Hydraulic pressure	Mpa	18
Swing motor			Cycloid motor
Travel motor			Cycloid motor
Fuel tank capacity		L	18
Hydraulic oil tank capacity		L	18

Packaging & Shipping


Company Profile
Linyi Kima Machinery CO.,LTD is a professional manufacturer of wheel loader and excavator in China.
Our leading products include 0.6 to 3 ton wheel loader and mini excavator.All products have passed the following certificates:ROPS&FOPS,CE,TUV.
Now our machines has a good market in Australia, SouthAmetica, Agentina, Canada, Germany, Norway, Finland, Sweden, Netherlands, Poland, Russia, etc.

Advantages
1.KIMA MACHINERY pays close attention to every detail in the design and development of their wheel loaders and excavators - something with is clearly evident in the high quality of the resulting machines.
2.Their wheel loaders and excavators provide users with uncompromising economic fuel consumption and efficiency. They are all powerful, maneuverable, stable, and fast, enabling you to get the job done.
3.Offering a complete selection of products and services, including attachments, for those various applications. KIMA will provide a solution tailor-made to your requirements.
After Sales Service
1. Our technicians will provide on-site service to customers in China. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.2. Within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.3. After the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.

Certification

Other Products

KME12 PRO Engine:KUBOTA Dimension:2965x990x2230mm Weight:1220KGS Bucket capacity:0.023m³	KME12 Engine:YANMAR Dimension:3060x850x2250mm Weight:1220KGS Bucket capacity:0.023m³	KME15 Engine:YANMAR Dimension:3160x850x2220mm Weight:1350KGS Bucket capacity:0.04m³
KME10 Engine:KOOP Dimension:2876x2220x880mm Weight:960KGS Bucket capacity:0.023m³	KME22 Engine:KUBOTA Dimension:4170x1300x2280mm Weight:2200KGS Bucket capacity:0.1m³	KME28 Engine:YANMAR Dimension:4159x1550x2560mm Weight:2600KGS Bucket capacity:0.08m³

FAQ:Q1. What Payment terms would you accept? Normally we accept L/C, or /T 30% down payment, balance to be paid against BL copy and loading pictures.
Q2. What is your delivery time? For standard machines, the delivery time is Within 25-35 days after receiving the down payment.
Q3. What services would you offer if I buy from you? Our trained Professional service team offers high-quality, on-time service in a very friendly way. For a good customer
Experience, the content of pre-sales, includes the recommendation on the basis of the right products in physical condition. All you have to do is to inform us of your needs.
Q4. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery.
Q5:What to do if there is a problem with the product? 1. We offer 1 year or 1000 hours running time warranty. 2. We offer technical support for free all the time.
3. We can send the parts to the customers by express delivery as soon as possible.

---
