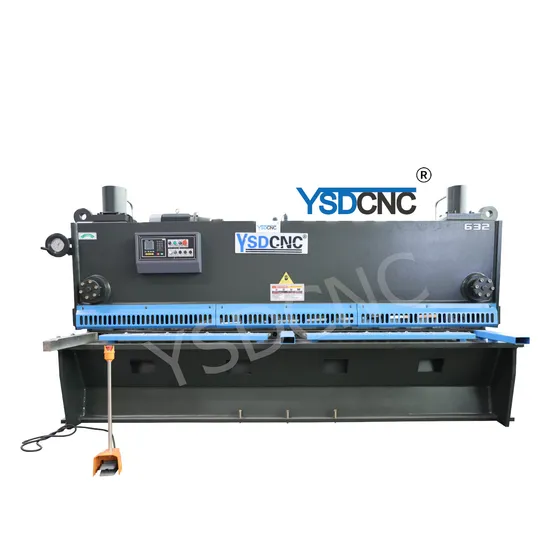

QC11y/K 8mm/10mm/12mm/16mm/20mm/25mm/30mm/50mm/2500/3200/4000/6000/8000 Hydraulic CNC Sheet Metal Guillotine Shear Sheet Cutting Machine with E21s Controller

Product Description

Product Description 1. Quick cutting length adjustment 2. Optional CNC front feeding table 3. Optional rear pneumatic sheet supporter 4. Cutting angle and blade gap with Electric control 5. E21S with backguage sequence repeat and distance control 6. Upper and lower Guillotine shear blades with four-side cutting edges Features
QC11K Hydraulic Guillotine Shearing Machine with E21S adopts all-steel welded structure and comprehensive
treatment (vibration aging, heat treatment) to eliminate internal stress, with good rigidity and stability. X axis(Backgauge)
and cutting time can be programmed by E21S system controller, which can store up to 40 groups of programs. Advanced
integrated hydraulic system with high reliability. Three points of support rolling guide are used to eliminate the support gap
and improve the shearing quality. Blade gap adjustment by hand wheel or electric, quick, accurate and convenient.
Rectangular blade with all four edges, long service life. Upper blade holder with inward tilting structure, easy to drop the
material and improve the accuracy of the workpiece. Segmented shearing function with light alignment. QC11K Hydraulic Guillotine Shearing Machine with E21S The streamlined welded machine structure achieves high rigidity;
the machine is designed by ANSYS software which can ensure the reliability and precision of the shearing machine. Details Products Pneumatic Back Support Light Curtain Front Feeding Table Feeding the metal sheet automatically controlled by CNC controller with high precision and efficiency. Specification

Model	Shearing Thickness (mm)	Shearing Width (mm)	Stroke Times (cuts/min)	Back-gauge Rang (mm)	Shearing Angler°	Main Power (KW)	Overall Dimensions L×W×H(mm)
4×2500	4	2500	16~35	20~600	30'~1°30'	5.5	3200×1400×2000
6×2500	6	2500	16~35	20~600	30'~1°30'	7.5	3200×1500×2100
6×3200	6	3200	14~35	20~600	30'~1°30'	7.5	3900×1580×2150
6×4000	6	4000	10~30	20~600	30'~1°30'	7.5	4700×1650×2250
6×5000	6	5000	10~30	20~800	30'~1°30'	11	5700×1800×2380
6×6000	6	6000	8~25	20~800	30'~1°30'	11	6700×2000×2650
8×2500	8	2500	14~30	20~600	30'~2°	11	3200×1550×2150
8×3200	8	3200	12~30	20~600	30'~2	11	3950×1750×2350
8×4000	8	4000	10~25	20~600	30'~2°	11	4700×1800×2480
8×5000	8	5000	10~25	20~800	30'~2°	15	5700×1950×2600
8×6000	8	6000	8~20	20~800	30'~2°	15	6700×1980×2650
12×2500	12	2500	12~25	20~800	30'~2°	15	3250×1680×2250
12×3200	12	3200	12~25	20~800	30'~2°	15	3980×1800×2550
12×4000	12	4000	8~20	20~800	30'~2°	15	4800×1950×2650
12×5000	12	5000	8~20	20~1000	30'~2°	22	5800×2150×2700
12×6000	12	6000	6~20	20~1000	30'~2°	30	6800×2450×2900
16×2500	16	2500	12~20	20~800	30'~1°30'	22	3280×1830×2520
16×3200	16	3200	12~20	20~800	30'~1°30'	22	3950×1950×2650
16×4000	16	4000	8~15	20~800	30'~1°30'	22	4800×1970×2700
16×5000	16	5000	8~15	20~1000	30'~1°30'	30	5800×2250×2870
16×6000	16	6000	6~15	20~1000	30'~1°30'	37	6800×2450×3150
20×2500	20	2500	10~20	20~800	30°~3°	30	3400×2260×2520
20×3200	20	3200	10~20	20~800	30'~3°	30	4100×2300×2700
20×4000	20	4000	8~15	20~800	30'~3°	30	4900×2500×2880
20×5000	20	5000	8~15	20~1000	30'~3°	37	5900×2750×2980
20×6000	20	6000	6~15	20~1000	30'~3°	37	6900×2850×3200
25×2500	25	2500	8~15	20~800	30'~3°	37	3420×2400×2650
25×3200	25	3200	8~15	20~800	30'~1°30'	37	4150×2500×2750
25×4000	25	4000	6~12	20~1000	30'~1°30'	37	4900×2600×2950
30×2500	30	2500	8~12	20~1000	30'~1°30'	55	3450×2600×2750
30×3200	30	3200	8~12	20~1000	30'~4°	55	4150×2700×2850
30×4000	30	4000	8~12	20~1000	30'~4°	55	4900×2900×3100
40×2500	40	2500	4~10	20~1000	30'~4°	55	4000×2950×3150
40×3200	40	3200	4~10	20~1000	30'~4°	55	4900×3050×3680

Our Service 1:The machine provides 36-month warranty and free online support and service from engineers. 2: Provide online technical support and service for life, even after the warranty period, the engineer team can always
provide you with online service at no additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according
to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the machine
itself-basic manual for the machine in English. We are a 7-year member of ******, and we support third-party guarantee transactions of ****** credit insurance
transactions, which can better protect your financial security.
The company provides a variety of transaction methods: EXW, FOB, CIF, DDU, DDP and other education methods
support customs declaration, export, transportation and delivery to the door and other one-stop services. You can trade through TT, wire transfer, transfer, paypel, letter of credit, ****** credit order and other transaction methods. We can deliver to your forwarding warehouse, or directly to your door, and deliver the goods to your hands.We cooperate
with well-known international shipping companies such as COSCO Shipping, and we can also be responsible for the
customs clearance of your goods, delivery of goods to your door, etc.And we provide free shipping insurance. If there is
any damage during transportation, our insurance company will settle the claim for you, and we will send you free shipping.
(If you have any questions, please contact us as soon as possible, and we will guide you how to operate? We are your
most trusted partner, we are your eyes and hands.) Our Company Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38 years of industry experience. We specialize in four main product lines: air duct
production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders for energy recovery. With over
300 employees, including 30 sales engineers and 35 service engineers, our factory spans 40 acres and is equipped with 3 floor-type
boring and milling machines, 6 gantry planers, 10 radial drilling machines, and 25 CNC machining centers. In total, we have over 200
large and small-scale equipment. With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality products and services. Our commitment to excellence has resulted in many satisfied customers who are eager to become our agents. FAQ Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit
in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.

---
