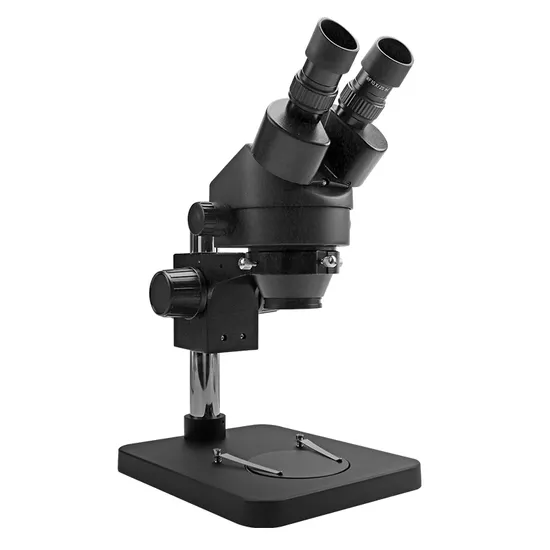

7-45X Szm45-B1 Zoom Stereo Binocular Microscope (Black)

Product Description

Product Description 7-45X SZM45-B1 Zoom stereo binocular microscope (Black)
Product Introduction
The zoom stereo binocular microscope series has wide field of view, clear imaging, strong stereoscopic sense, convenient operation and beautiful appearance. It can be used for inspection, assembly and repair of small and precise parts in instrument, instrument and electronic industry.
The zoom stereo binocular microscope series can also be used for medical, biological anatomy, agricultural selection and textile industry inspection.
Notice Microscope ought to be placed in a dry and clean circumstance. Do not expose the microscope to the sun directly. Avoid high temperature and violent vibration. Microscope is a precise instrument,so it must be avoid impact and bump during the conveyance and must be handled with care. To keep the quality of the images, must avoid the dirt and do not leave finger marks on the surfaces of the lens. Never turn the left and right focusing knobs in the adverse direction at the same time,otherwise the microscope will be damaged. Hold the camera with one hand for fear of falling when you take the films out of the big camera.
Product Specification

Model	SZM45-B1
Viewing head	45° inclined
Eyepiece	WF10X
Objective	Zoom objective,magnification0.7X~4.5X
Eyepiece Tube	Binocular
Total Magnification	7X~90X,3.5X~180X(use auxiliary objective)
Inter-pupillart Range	54-75mm
Diopter Range	±5mm
Illumination	No light
Working Distance	100mm
Optional	Trinocular/ photo tube; 20X high-eyepoint eyepiece; illustration(incident light/ incident and transmitted)

Product feature and application
Widely used in electronics industry, assembling and inspection of precise instruments and meters, educational experiments, observation and research. It can be used in the schools, research institutes, factories, and families to study the geology, outside appearance of objects.
Maintenance and precautions All the lens be kept clean. Fine dust on the surfaces of the lens should be blown off with hand blower or wiped off gently with cotton yarn bar. Fingerprint or oil mark on it should be wiped off with a cotton yarn bar which moistened with a small amount of xylene or a 3:7 mixture of alcohol and ether. Never use the organic solution to clean the other surfaces (especially the plastic surface).if necessary ,please choose the neural detergent. Do not take the microscope apart for fear that it is damaged. After use, cover the microscope with the dust-cover provided and store it in a dry and clean place free from moisture to prevent rust. To keep the performance of the microscope, please check it periodically. The detail can be gotten from the agent nearby. Detailed Photos

---
