| US$13,000.00-30,000.00 | 1 Piece (MOQ) |

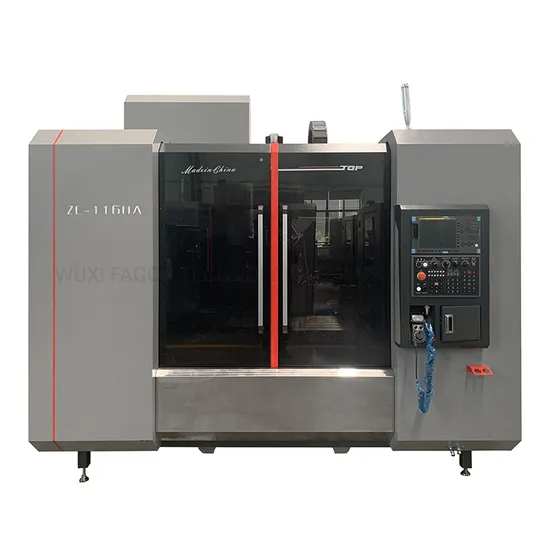

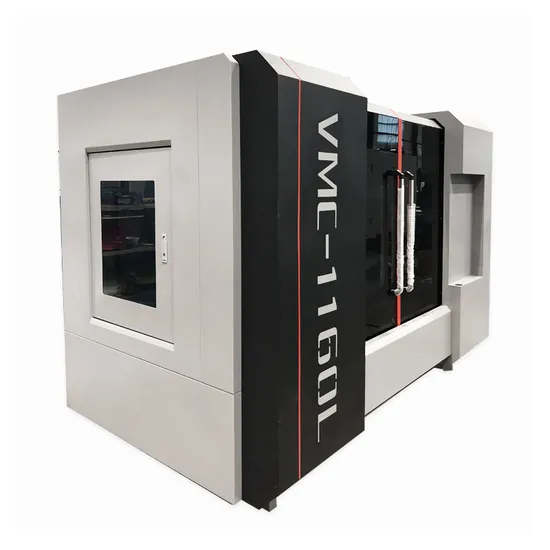

| ITEM | VMC1160 | VMC855 |
| WORKTABLE SIZE (L×W) (MM) | 1200*600 | 1000*550 |
| MAX. X AXIS TRAVEL (MM) | 1100 | 800 |
| MAX. Y AXIS TRAVE (MM) | 600 | 550 |
| MAX. Z AXIS TRAVEL (MM) | 600 | 550 |
| RANGE OF SPINDLE NOSE TO WORKTABLE | 120-720 | 120-670 |
| DISTANCE FROM SPINDLE CENTER TO COLUMN (MM) | 650 | 590 |
| WORKTABLE SPACINGOF T-SLOTS (NUMBER-SIZE×DISTANCE) | 5-18*100 | 5-18*90 |
| SPINDLE (MODEL /DIAMETER) | BT40/Φ150 | BT40/Φ150 |
| SPINDLE SPEED | 8000RPM(BELT/DIRECT) | 8000RPM(BELT/DIRECT) |
| X.Y.Z AXIS BALL SCREW | 4012 | 4016 |
| TRACK WIDTH (X/Y/Z) | 45/45/45 | 35/45/45 |
| SCREW DIAMETER | 40/40/40 PITCH 12MM | 40/40/40 PITCH 16MM |
| X.Y.Z AXIS RAPID SPEED (MM/MIN) | X36000/Y36000/Z36000 | X48000/Y48000/Z48000 |
| X.Y.Z AXIS SPEED (MM/MIN) | 1-10000 | 1-10000 |
| X AXIS LINEAR SPECIFICATION | RGH45HA | RGH35HA |
| Y AXIS LINEAR SPECIFICATION | RGW45HC | RGW45HC |
| Z AXIS LINEAR SPECIFICATION | RGW45HC | RGW45HC |
| XYZ AXIS MOTOR CONNECT WAY | DIRECT | DIRECT |
| RECOMMEND SPINDLE MOTOR POWER (KW) | 11KW | 7.5KW |
| STANDARD SYSTEM | SIEMENS/FUNUC | SIEMENS/FUNUC |
| RECOMMEND X.Y.Z AXIS MOTOR (NM) | 20/20/20(brake) B22/B22/B22(brake) | 11/11/20(brake) B12/B12/B22(brake) |
| TOOL SHANK MODE | BT40 | BT40 |
| TOOL MAGAZINE | ATC ARM TYPE | ATC ARM TYPE |
| TOOL MAGAZINECAPACITY(PCS) | 24T | 24T |
| TOOL CHANGING TIME(S) | 1.75 | 1.75 |
| BED CUSHION HEIGHT | 40MM | 50MM |
| X/Y/Z POSITIONING ACCURACY(MM) | ±0.005/300JIS | ±0.005/300JIS |
| X/Y/Z REPEAT POSITIONING ACCURACY(MM) | ±0.003/300JIS | ±0.003/300JIS |
| MAX LOADING OF WORKTABLE (KG) | 800 | 500 |
| FRAME MATERIAL | HT300 | HT300 |
| SPINDLE | TAIWAN BRAND | TAIWAN BRAND |
| SCREW | TAIWAN BRAND | TAIWAN BRAND |
| LINEAR | TAIWAN BRAND | TAIWAN BRAND |
| BEARING | JAPAN | JAPAN |
| TOOL CHANGER | TAIWAN BRAND | TAIWAN BRAND |
| DIMENSION (MM) | 3100*2547*2731 | 2603*2360*2455 |
| FRAME WEIGHT(KG) | 4200 | 3400 |
| MACHINE WEIGHT (KG) | 5900 | 5000 |
