n35 n38 n40 n42 n45 n48 n50 n52 neodymium round disc magnet rectangle square DC magnet arc motor magnet

Product Description

n35 n38 n40 n42 n45 n48 n50 n52 neodymium round disc magnet rectangle square DC magnet arc motor magnet
Permanent Magnet Materials Introduction
Permanent magnets are used in the following major groups: acoustic transducers, motors and generators, magneto mechanical devices, and magnetic field and imaging systems. You will find permanent magnets in many products, such as televisions, telephones, computers, audio systems and automobiles.
The permanent magnet family consists of non-rare earth permanent magnets and rare earth magnets. The non-rare earth magnets include Alnico magnets and Ceramic magnets. Rare earth magnets include Sm-Co magnets and NdFeB magnets (Neodymium-Iron-Boron).
Although non-rare earth magnets are used in the majority of these applications due to their economic cost, rare earth permanent magnets have many distinguishing characteristics, such as a large Maximum Energy Product, Two major families of rare earth permanent magnets, Sm-Co magnets and NdFeB magnets.
How to Choose Permanent Magnet Materials
Each permanent magnet material discussed above has its own pros and cons. How to choose the right one for your particular application is a challenge to any user. A balance between cost and performance must be considered in selecting of permanent magnet material. In Reference Information section of this page, several reference books are listed. Following is a Comparison Table to help you select a right permanent magnet material for your applications.
Permanent Magnet Material Comparison Table Note: The data listed in the table are for reference only
Products Details: Widely Performance: N35-N54, N35M-N52M, N33H-N50H, N33SH-N45SH, N30UH-N42UH, N30EH-N38EH, N28AH-N33AH;
2. Best Price: We are manufacture in Ningbo. We have a whole set of production process equipment from Dosage to Cutting. Fast delivery: 8-15days.
Product Description:
1. Materials: Ne-Fe-B
2. Shape: Various as you wish
3. Certificate: ISO/TSI6949: 2009
Specifications:
A. Materials: Neodymium-Ferrum-Boron;
B. Grades: N35-N54, 35M-52M, 33H-50H, 33SH-45SH, 30UH-42UH, 30EH-38EH, and 28AH-33AHB.
C. Coating: Various coatings to protect the magnets, such as Ni, Zn, gold, copper, epoxy, chemical, parylene and so on;

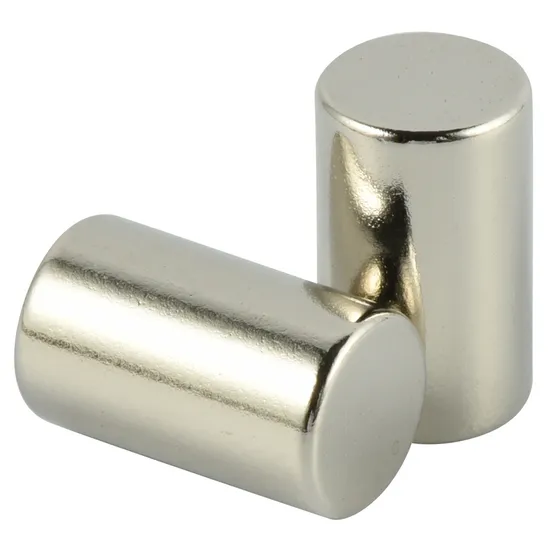

D. Shape: Block, Ring, Disc, Cylinder, Arc(Segment), Half Ring, and Customized Design;
E. Size: customized size per your requirements, largest block length of 150mm, biggest ring of D220mm, smallest thickness of 0.5mm
F. Performance: High coercive force (Hcb) can reach 9.7kOe (772KA/M), the max operation temp (Tw) is up to 220 degree centigrade or 380 curie temperature;
G. Applications: Magnet Separators, Sensors, Motors, Rotors, Wind turbines, Wind generators, Loudspeakers, Magnetic hooks, Magnetic holder, Filters Automobiles Magnetic jewelries, toys, magnetic buttons, Magnetic therapy and so on;
Production process:
Raw Materials-->Mixture--->Vacuum Melting--- > Powder Production--- >Molding ---> Vacuum Sintering--- > Testing--- >Mechanical Processing--- > Surface Coating--- >Magnetized--- > Inspecting--- > Packing and Shipping.
Directions of Magnetization:
a. Thickness Magnetized
b. Axially Magnetized
c. Diametrally Magnetized
d. Multi-poles magnetized
e. Radial Magnetized
f. Customized specific requirements magnetized
Inquiry
To receive a quote for Neodymium Arc magnets, please provide the following details: Outer Diameter, Inner Diameter or, Degree of Angle; Thickness, Length; Grades; Coating; Tolerances and Magnetization Direction (North on the Outside Face / South on the Outside Face / Magnetized through Circumference / Magnetized through Thickness ). Testing Conditions
neodymium magnet packing details and delivery
Welcome to inquiry!
We can provide almost all grades in large quantity. In addition, if you customized products,

High Performance Sinterated NdFeB Magnet Item	Grade	Remanence;Br				Coercive Force;bHc		Intrisic Coercive Force;iHc		Max Energy Product;(BH)max				Working Temp.
		kGs		T		kOe	KA/m	kOe	KA/m	MGOe		KJ/m3
		Max.	Min.	Max.	Min.					Max.	Min.	Max.	Min.
N	N54	15.1	14.5	1.51	1.45	≥10.5	≥836	≥11	≥876	55	51	438	406	≤80
	N52	14.8	14.2	1.48	1.42	≥10.5	≥836	≥11	≥876	53	49	422	390	≤80
	N50	14.5	14.0	1.45	1.40	≥11.0	≥876	≥12	≥955	51	47	406	374	≤80
	N48	14.3	13.7	1.43	1.37	≥11.0	≥876	≥12	≥955	49	45	390	358	≤80
	N45	13.8	13.2	1.38	1.32	≥11.0	≥876	≥12	≥955	46	42	366	334	≤80
	N42	13.5	12.9	1.35	1.29	≥11.0	≥876	≥12	≥955	44	40	350	318	≤80
	N40	13.2	12.6	1.32	1.26	≥11.0	≥876	≥12	≥955	41	38	334	302	≤80
	N38	13.0	12.2	1.30	1.22	≥11.0	≥876	≥12	≥955	40	36	318	287	≤80
	N35	12.2	11.7	1.22	1.17	≥10.9	≥868	≥12	≥955	36	33	287	263	≤80
M	N52M	14.8	14.2	1.48	1.42	≥13.3	≥1059	≥14	≥1114	43	49	422	390	≤100
	N50M	14.5	14.0	1.45	1.40	≥13.1	≥1043	≥14	≥1114	41	47	406	374	≤100
	N48M	14.3	13.7	1.43	1.37	≥12.8	≥1019	≥14	≥1114	49	45	390	358	≤100
	N45M	13.8	13.2	1.38	1.32	≥12.4	≥987	≥14	≥1114	46	42	366	334	≤100
	N42M	13.5	12.9	1.35	1.29	≥12.1	≥963	≥14	≥1114	44	40	350	318	≤100
	N40M	13.2	12.6	1.32	1.26	≥11.8	≥939	≥14	≥1114	41	38	334	302	≤100
	N38M	13.0	12.2	1.30	1.22	≥11.7	≥915	≥14	≥1114	40	36	318	287	≤100
	N35M	12.2	11.7	1.22	1.17	≥10.9	≥868	≥14	≥1114	36	33	287	263	≤100
H	N50H	14.5	14.0	1.45	1.40	≥12.9	≥1027	≥16	≥1274	51	47	406	374	≤120
	N48H	14.3	13.7	1.43	1.37	≥12.7	≥1011	≥16	≥1274	49	45	390	358	≤120
	N46H	14.0	13.4	1.40	1.34	≥12.5	≥995	≥17	≥1353	47	43	374	342	≤120
	N44H	13.7	13.1	1.37	1.31	≥12.3	≥979	≥17	≥1353	45	41	358	326	≤120
	N42H	13.5	12.9	1.35	1.29	≥12.1	≥963	≥17	≥1353	44	40	350	318	≤120
	N40H	13.2	12.6	1.32	1.26	≥11.8	≥939	≥17	≥1353	42	38	334	302	≤120
	N38H	13.0	12.2	1.30	1.22	≥11.5	≥915	≥17	≥1353	40	36	318	287	≤120
	N35H	12.4	11.7	1.24	1.17	≥11.0	≥876	≥17	≥1353	37	33	295	263	≤120
	N33H	11.7	11.3	1.17	1.13	≥10.5	≥836	≥17	≥1353	34	31	271	247	≤120
SH	N45SH	14.0	13.4	1.40	1.34	≥12.5	≥995	≥20	≥1592	47	43	374	342	≤150
	N44SH	13.7	13.1	1.37	1.31	≥12.3	≥979	≥20	≥1592	45	41	358	326	≤150
	N42SH	13.5	12.9	1.35	1.29	≥12.1	≥963	≥20	≥1592	44	40	350	318	≤150
	N40SH	13.2	12.6	1.32	1.26	≥11.8	≥939	≥20	≥1592	42	38	334	302	≤150
	N38SH	12.9	12.2	1.29	1.22	≥11.5	≥915	≥20	≥1592	40	36	318	287	≤150
	N35SH	12.4	11.7	1.24	1.17	≥11.0	≥876	≥20	≥1592	37	33	295	263	≤150
	N33SH	12.1	11.4	1.21	1.14	≥10.7	≥852	≥20	≥1592	35	31	279	247	≤150
UH	N42UH	13.5	12.9	1.35	1.29	≥12.1	≥963	≥25	≥1990	44	40	350	318	≤180
	N40UH	13.2	12.6	1.32	1.26	≥11.8	≥939	≥25	≥1990	42	38	334	302	≤180
	N38UH	12.9	12.2	1.29	1.22	≥11.5	≥915	≥25	≥1990	40	36	318	287	≤180
	N35UH	12.4	11.7	1.24	1.17	≥11.0	≥876	≥25	≥1990	37	33	295	263	≤180
	N33UH	12.1	11.4	1.21	1.14	≥10.7	≥852	≥25	≥1990	35	31	279	247	≤180
	N30UH	11.6	10.8	1.16	1.08	≥10.2	≥812	≥25	≥1990	32	28	255	223	≤180
EH	N38EH	12.9	12.2	1.29	1.22	≥11.5	≥915	≥30	≥2388	40	36	318	287	≤200
	N35EH	12.4	11.7	1.24	1.17	≥11.0	≥876	≥30	≥2388	37	33	295	263	≤200
	N33EH	12.1	11.4	1.21	1.14	≥10.7	≥851	≥30	≥2388	35	31	279	247	≤200
	N30EH	11.5	10.8	1.15	1.08	≥10.2	≥812	≥30	≥2388	32	28	255	223	≤200
AH	N33AH	12.1	11.4	1.21	1.14	≥10.7	≥852	≥35	≥2786	35	31	279	247	≤230
	N30AH	11.5	10.8	1.15	1.08	≥10.2	≥812	≥35	≥2786	32	28	255	223	≤230
	N28AH	11.2	10.4	1.12	1.04	≥9.70	≥772	≥35	≥2786	30	26	239	207	≤230

---
